Material: Carbide
Diameter: 50-150mm
Type: End Mill
Coating: TiAIN
Overall Length: 50-150mm
HRC: 45/55/60/65
Flute: 2/4flutes
Precision: High Precision
Machine Type: Milling Machine
Transportation: Express/Air
Super Raw Meterial
|
Type
|
Material
|
Co
|
Grain size
|
Flexural Strength
|
|
HRC45
|
YG10X(Zhuzhou）
|
10%
|
0.7um
|
3320N/mm2
|
|
HRC55
|
YG10.2&WF25(Taiwan)
|
10%
|
0.6um
|
4000N/mm2
|
|
HRC65
|
H10F(Sweden)
|
10%
|
0.5um
|
4300N/mm2
|
Super Coating
|
Type
|
Hardness(HV)
|
Thickness(UM)
|
Oxidation Temp
|
Friction Coefficient
|
Color
|
|
AITiN
|
3200
|
2.5-3
|
900
|
0.3
|
Black
|
|
TiSiN
|
3600
|
3
|
1000
|
0.45
|
Copper
|
|
nACo
|
42(GPA)
|
3
|
1200
|
0.4
|
Blue
|
Name
|

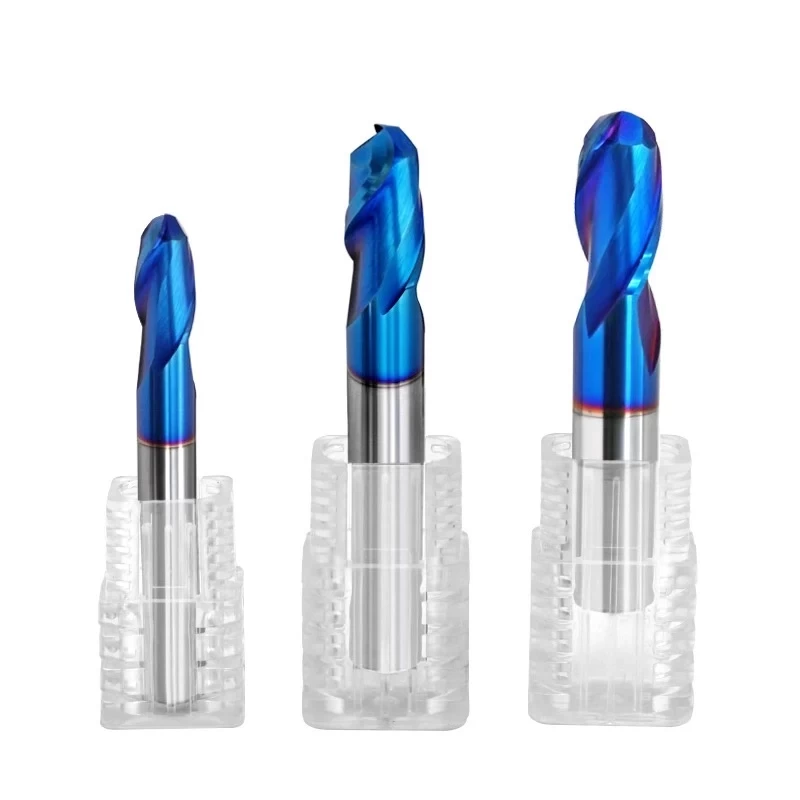

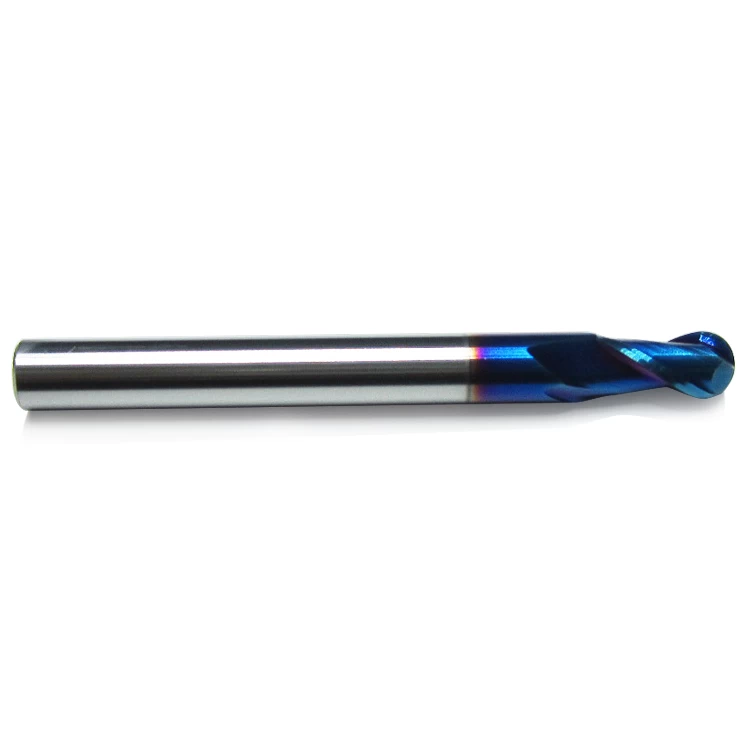

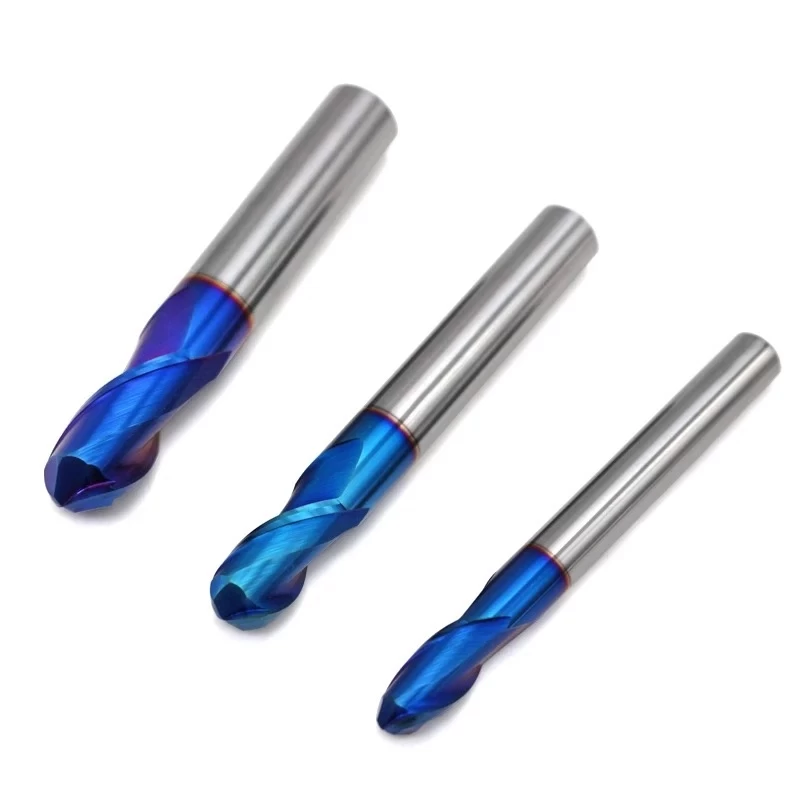

Solid Carbide End Mill
|
Material
|
Tungsten Carbide
|
Flutes
|
2/4/6 Flute
|
Hardness
|
HRC45, 55, 65
|
Helix Angle
|
30° 35° 45°30° 35° 45°AlTiN, NACO BLUE, NACO BLACK, TiN etc.
|
Coating
|
AlTiN, NACO BLUE, NACO BLACK, TiN etc.
|
HRC45, 55, 60, 65, 68
|
Flat end mill, ball nose end mill, corner radius end mill and aluminium processing end mill
|
Size
|
Dia: 1-20 mm, Overal Length:50-150mm
|
Smooth Finish
|
Highly Polished
|
Feature
|
Excellent chip evacuation
|
Applications
End mill and drill and carbide cutting tools manufacturer
1.Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
2.Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc
Our Machine
We are the manufacture and wholesaler of cnc cutting tools more than 16 years,manufacture machines
are Anca,Deckel,Walter.
- Anca machine for produce small diameter end mills
- Deckel machine for produce big diameter end mills
- Non-standard cutters made in Walter machine
Feaures:
-Use high-quality tungsten material, high-precision CNC machine processing.
-Have high centering ability, can get a stable dimensional accuracy and good surface quality;
-Suitable for processing system excellent rigidity occasions.
Packaging & Shipping
CNC Cutting Tools Brazed Carbide End Mill, solid carbide end mills
In plastic box, then in cartons, or as customers' requirement
Delivery: Genreally within 7days after confirming the order, depending on quantity
Shipping: By express(Door to Door) or by air
Buyer Feedback
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are end mill factory.Our factory is located in zhuzhou City, Hunan Province. Welcome to visit our factory!
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we could not offer the sample for free, but we can give you a big discount for big order
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
