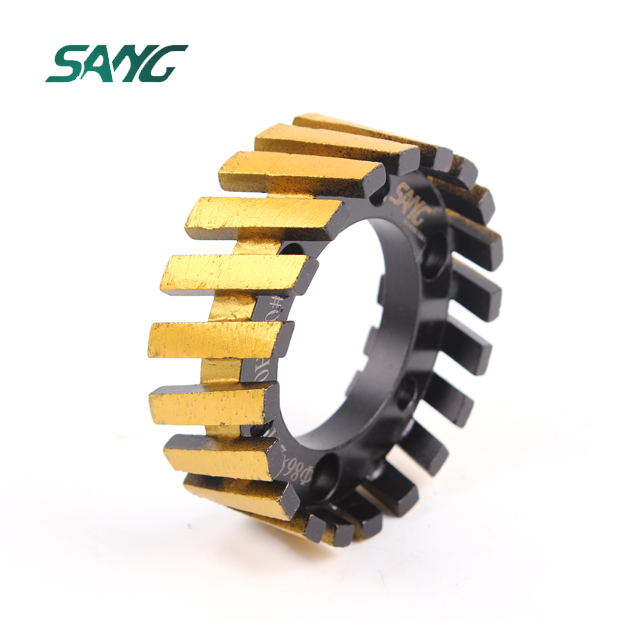

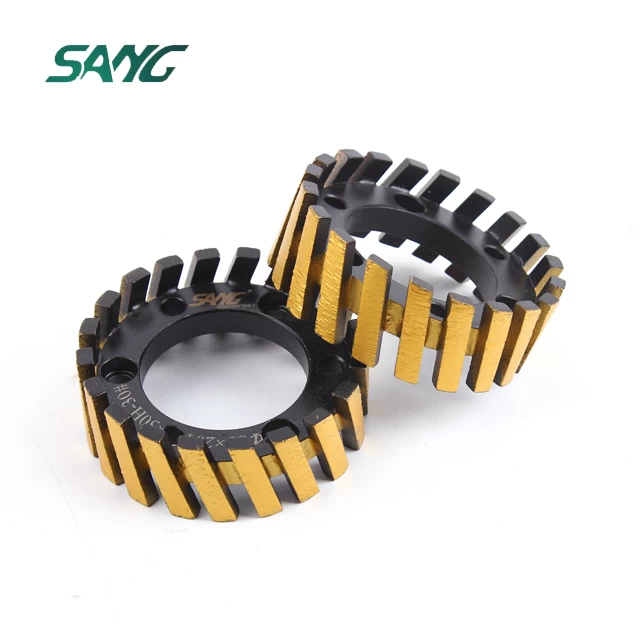

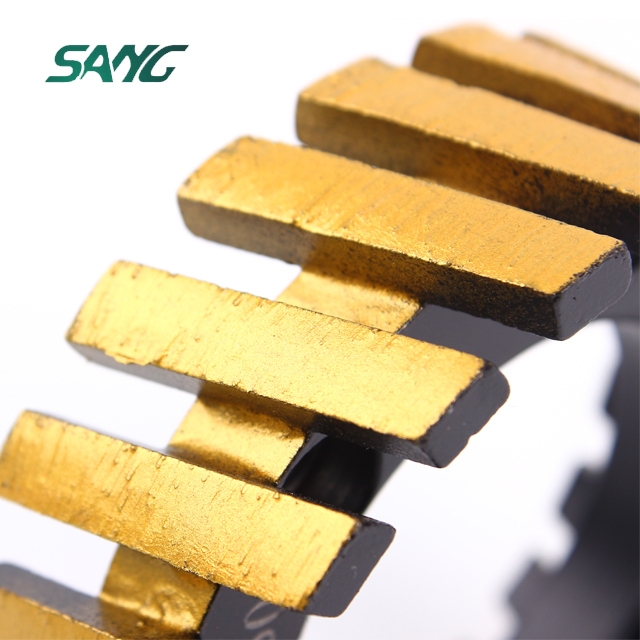

CNC Tooling, Drum wheels, Stubbing Wheels

Features:

1. Size of diamond gauging wheel:

        - Diameter 50,75,100,150mm can be offered.

        - Height: 20mm, 30mm

        - Grit: #50/60

2. Connection: D20, D50 bore flange joint - 1/2 GAS, 5/8"-11, M14 thread.

3. Material: Metal powder + Diamond powder

4. Technology: Hot pressed and sintered, silver welded

5. Reversible structure for saving costs.

6. For processing Granite, Marble, Engineered stone, etc.

7. Single & Twin types

Item No.	Diameter (mm)	Processing Thickness (mm)	Connection	Type
SGW-MT	2"	35 40	M14 5/8"-11	50# Segmented
	3"
	4"
