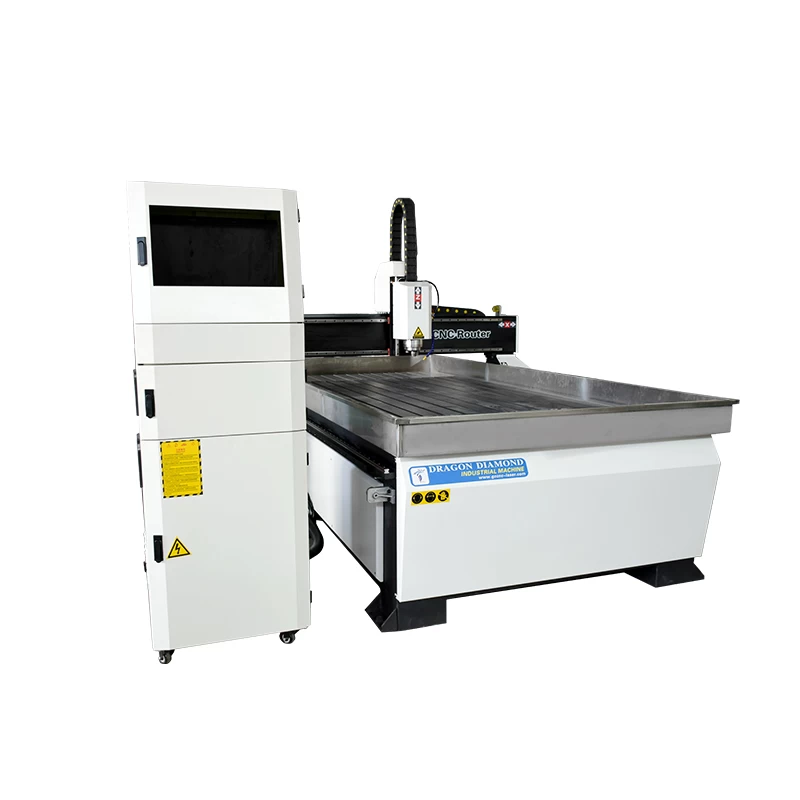

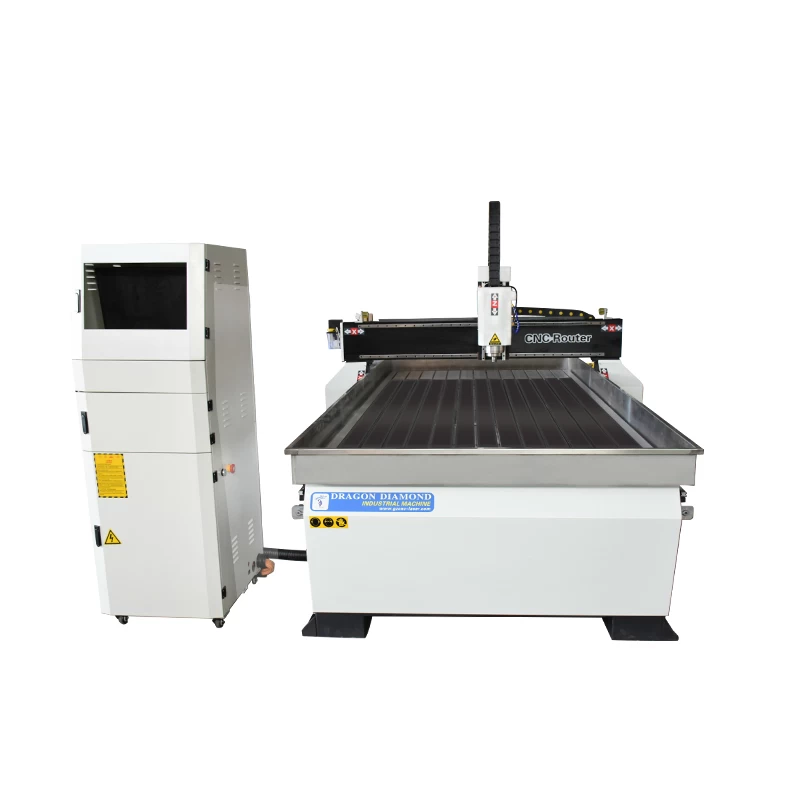

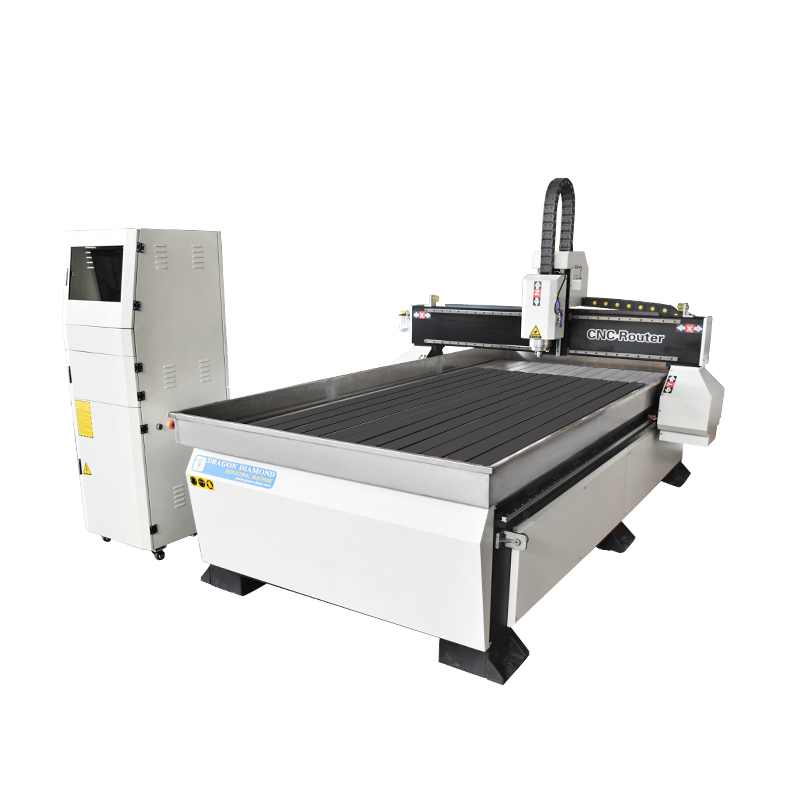

CNC Wood Engraving and Cutting Machine with Sink
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1325-Water Sink
|
|
1
|
Working Area
|
1300x2500x200mm
|
|
2
|
Packing Size
|
3200x2200x1800mm
|
|
3
|
Working Table
|
T-Slot Aluminum Table with Water Sink
|
|
4
|
Spindle Power
|
3KW Water cooling Spindle
|
|
5
|
Cooling System
|
Water cooling
|
|
6
|
Control System
|
NC Studio
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission Type
|
X,Y axis rack drive,Z axis screw drive
|
|
9
|
Guide Rail
|
Taiwan Hiwin Square Rail
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Leadshine driving system and stepper motor
|
|
12
|
Body
|
Welded steel T type structure as a whole
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Control Software
|
Artcam/Type3,other CAD/CAM
|
|
15
|
Traveling Speed
|
10m/min
|
|
16
|
Working Speed
|
8m/min
|
|
17
|
Reposition Accuracy
|
0.03mm
|
|
18
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
19
|
Voltage
|
AC220V/380V,50HZ/60HZ
|
PRODUCT FEATURES

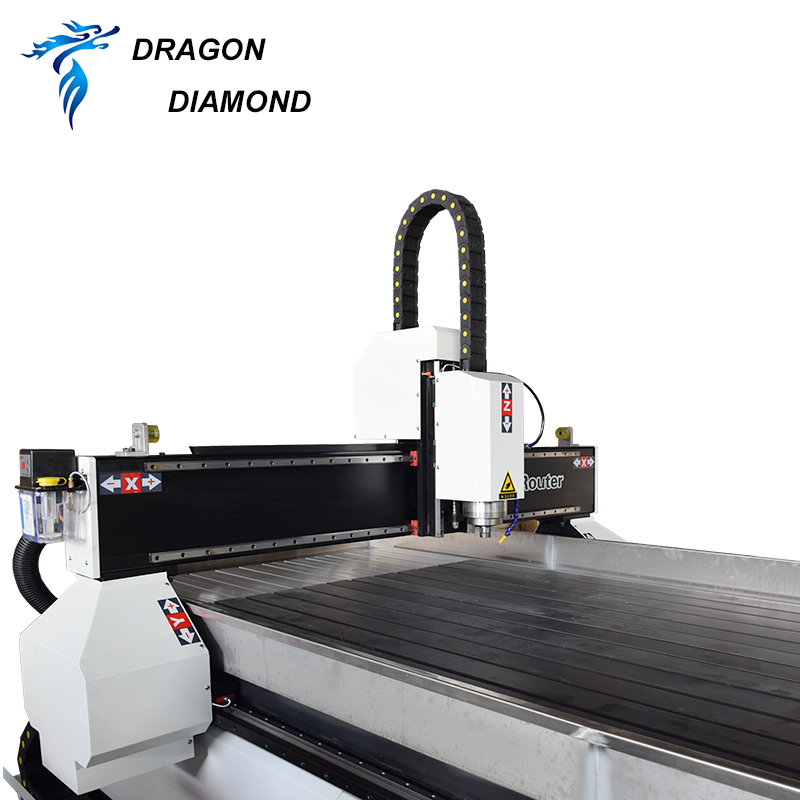

1.Stronger Machine Frame Design
Welded steel T type structures as a whole,six-legged heavy-duty boday ,large bearing capacity with vibration Temper aging treatment ensures no deformation for long time,avoid broken knife,more stable,durable.
2.Guide Rail
Imported Hiwin,Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Adopt imported precision ball screws , tools feeded with more accuracy.
3.XYZ Transmission Way
Rack gear transmission for X and Y axis, higer running speed and efficiency, saving cost.Z axis with precision ball screw, high precision and more durable.

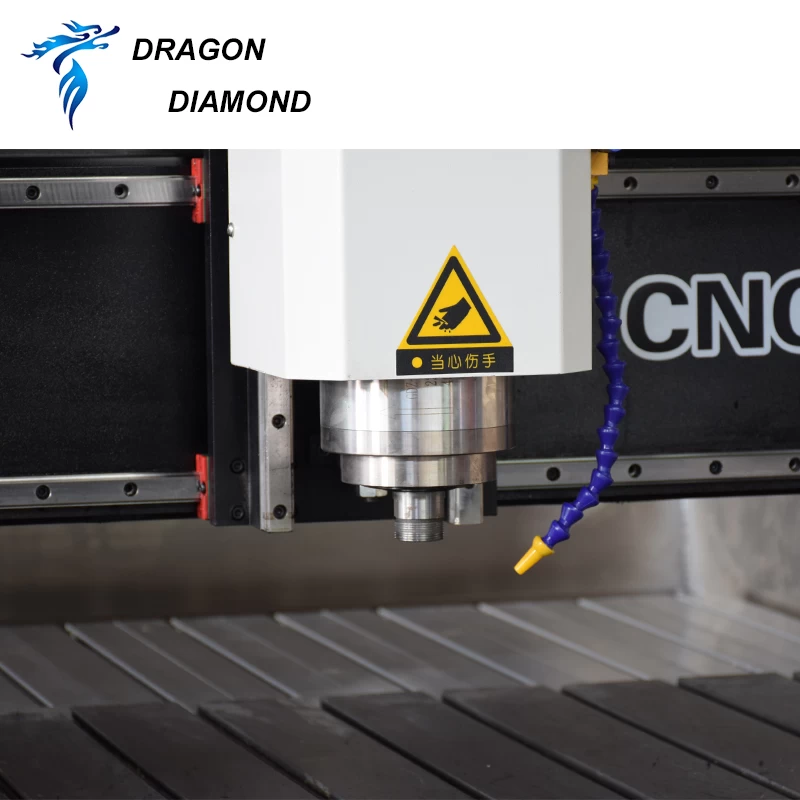

4.Spindle Motor And Inverter
Large power 3kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

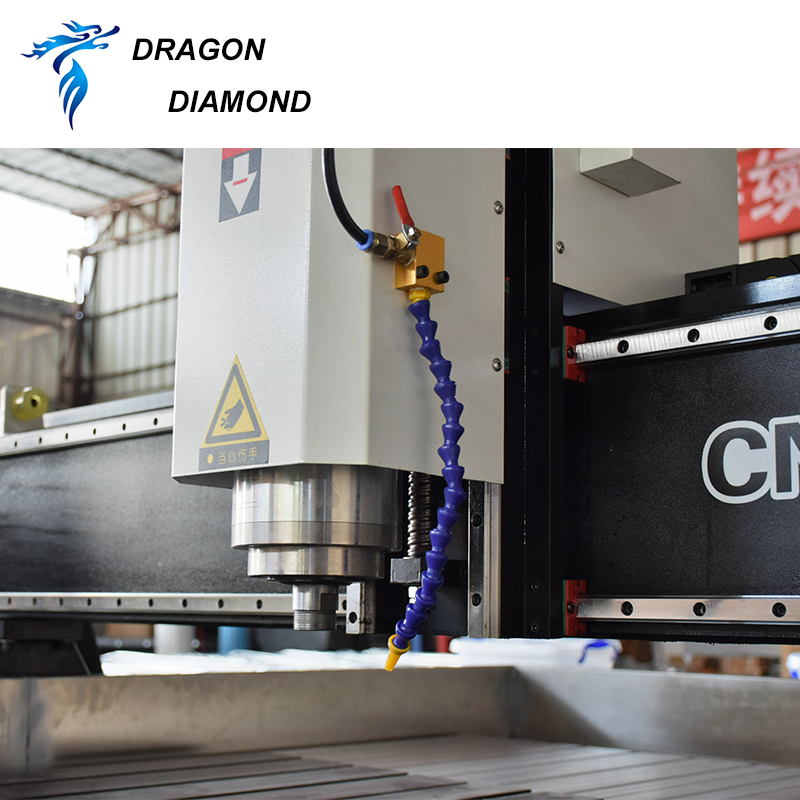

5.Cooling Water Pipe
Cool the surface while the material is being processed,avoiding excessive temperature and deforming the material.
6.Motor And Driver
China famous NEMA34 Stepper Motor/Servo Motors stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 10000/40000mm per min.
7.Humanized Design Power Box
More humanized design, Dustproof, integrated power box.
8.Stainless Steel Sink
Stainless steel sink + T-slot table better cooling of materials.
