Specifications
1) 4-axis CNC milling Center
2) 7.0 inch color LCD display screen
3) New design model
4) ATC and macro function

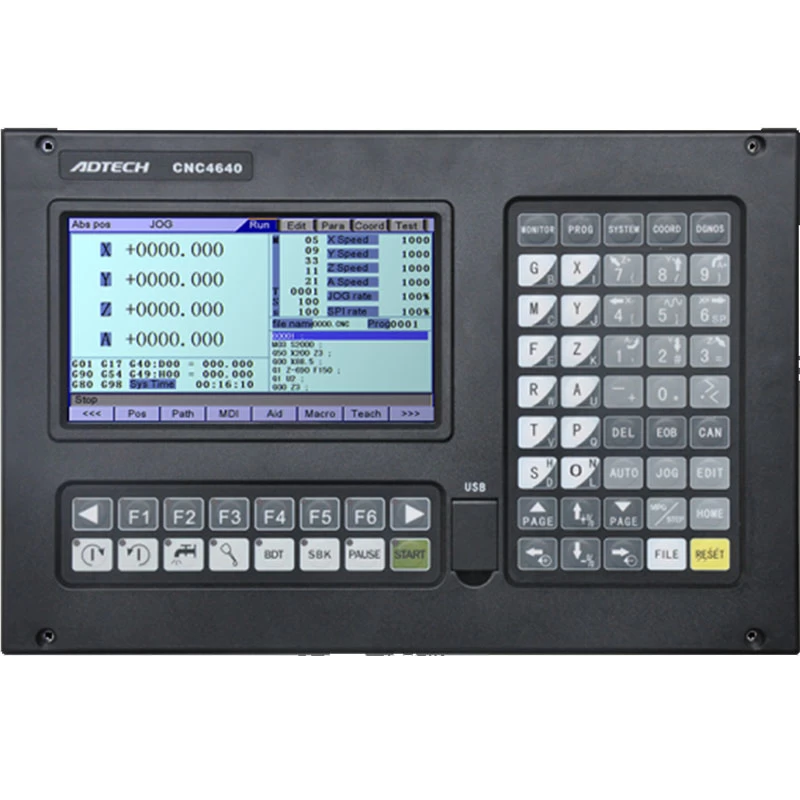

ADT-CNC4640 Economic Type 4-axes CNC Milling System, it is updated version , and stronger function.
ADT-CNC4640 Economic Type 4-axes CNC Milling System Application:
-
milling machinery
-
hardware processing industry
-
die processing industry
-
engraving industry
-
punching machinery
-
router retrofit
Function:
-
Self-diagnosis
Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset; diagnose power supply, principal axis, limit and I/O ports in real-time during operating.
-
Compensation
Automatic reverse clearance compensation
Automatic tool length compensation
Automatic tool radius compensation
Automatic tool radius biasing and automatic tool tip transition
-
Abundant instruction system
Scaling instruction
Mirror processing instruction
Tool biasing instructions
Program cycle, program skip, program shift, program transfer, different end processing modes, macro definition and program management instructions
Fixed-point instructions: starting point, setting point, etc.
Linear, arc and spiral interpolation instructions
Six workpiece coordinate systems, nine extension coordinate systems and one reference point
-
Full English menu operation & full screen edit
4640/4620 CNC system uses cascading menu structure and full Chinese operation to ensure simple operation and visibility.
-
Abundant error-correction functions
Point out the nature and correct the errors in operation.
-
Program exchange between CNC system and PC
Perform CAD/CAM/CAPP auxiliary programming with abundant software in PC, and then transmit CNC program to the system through communication interface (USB disk, RS232 interface), or transmit the programs from the system to PC.
-
System operating condition
|
Operating voltage
|
24V DC (with filter)
|
|
Operating temperature
|
0°C— 45°C
|
|
Optimum operating temperature
|
5°C— 40°C
|
|
operating humidity
|
10%——90%(no condensing)
|
|
Optimum operating humidity
|
20%——85%
|
|
Storage temperature
|
0°C—50°C
|
|
Storage humidity
|
10%——90%
|
|
Operating environment
|
No excessive dust, acid, alkali, corrosive and explosive gases, no strong electromagnetic interference.
|

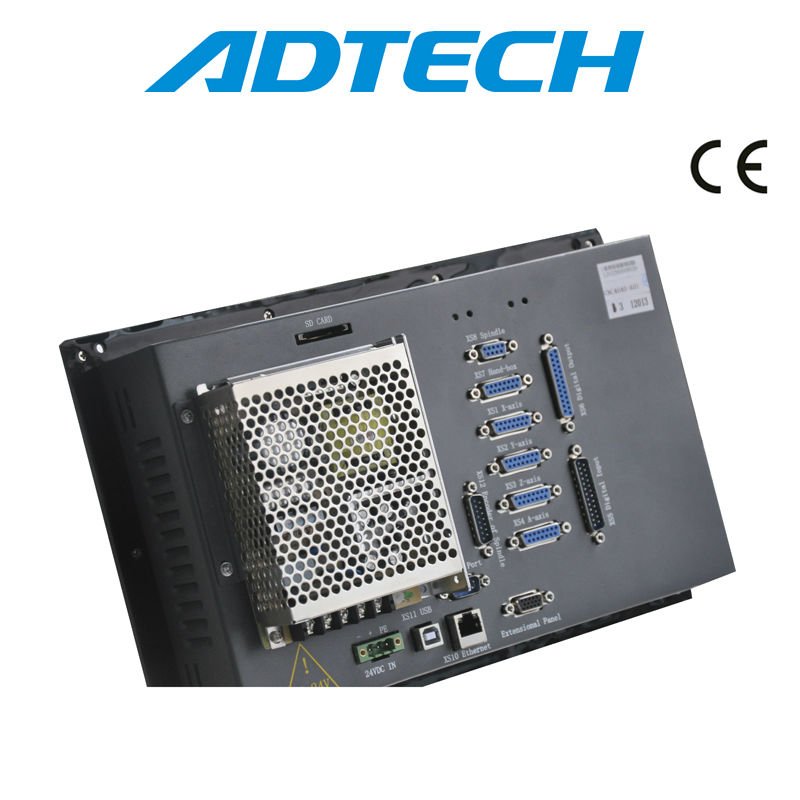

ADT-CNC4640 Economic Type 4-axes CNC Milling System Main Feature:
-
7.0 Inch TFT color display, 800 X 400 hight resolution display
-
Ethernet network interface, 10/100M enthernet port.
-
U flash and USB communication port, USB TO PC communication connector.
-
multi-language
-
additional plate (FCNC4M) and MPG (ADT-CNC4A)
-
ARM 9 CPU+FPGA double core processor
-
PLC
-
4 chanel 2 mb/s high speed pulse output , 6 chanel AB phase decoder
-
two chanel serial RS232 connector.
-
SD card big capacity memory connector.
-
support 4 axis linkage.
Optional Spare Parts:
|
|
|

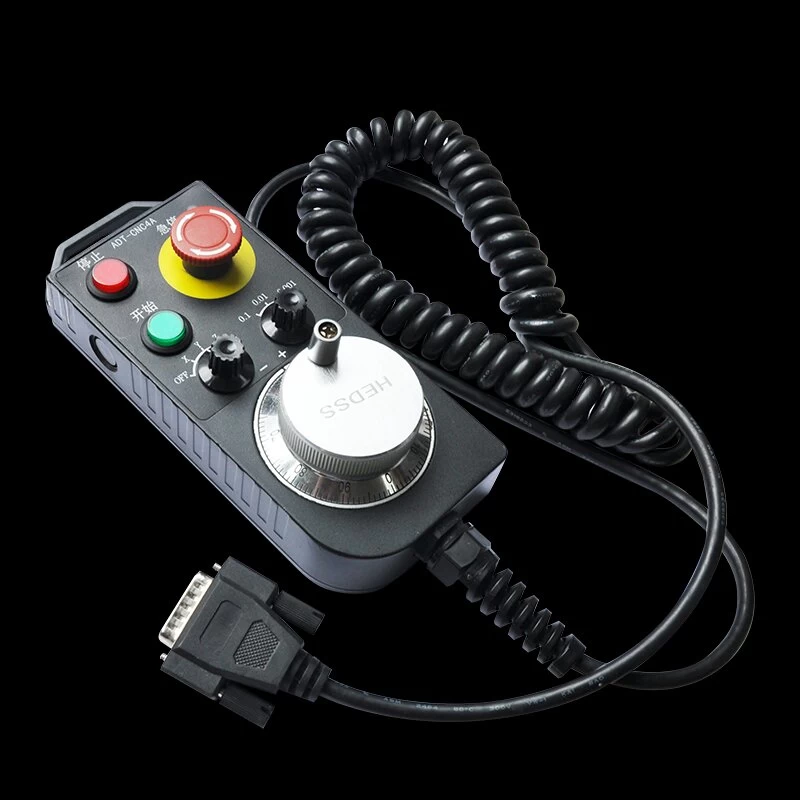

Handheld box-CNC4A
|
(Additional panel- FCNC4M
|

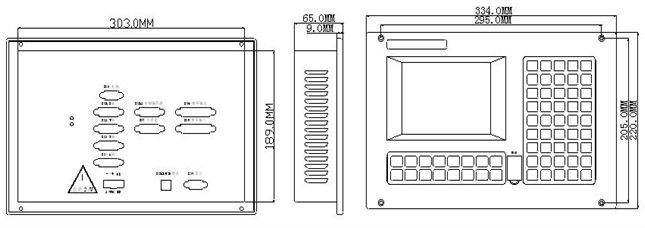

ADT-CNC4640 Economic Type 4-axes CNC Milling System SIZE:
Related Products:
|
|
|
|
ADT-CNC4240
Eonomic Type Milling/Drilling CNC Controller
|

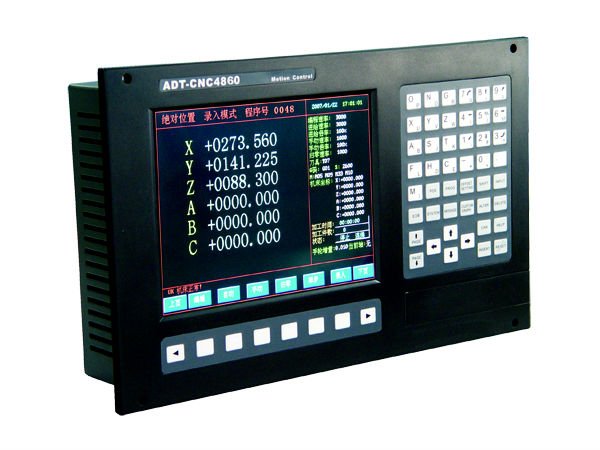

ADT-CNC4860
Six Axis Milling/Drilling CNC Controller
|

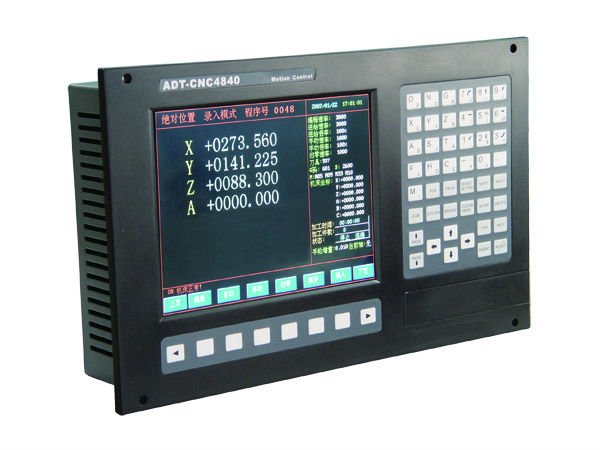

ADT-CNC4840
