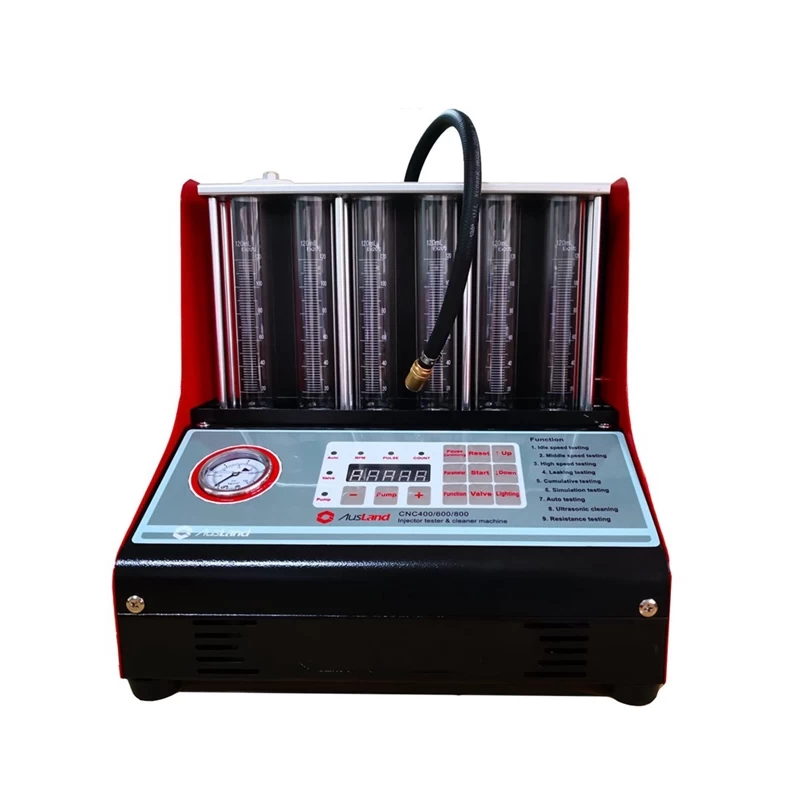

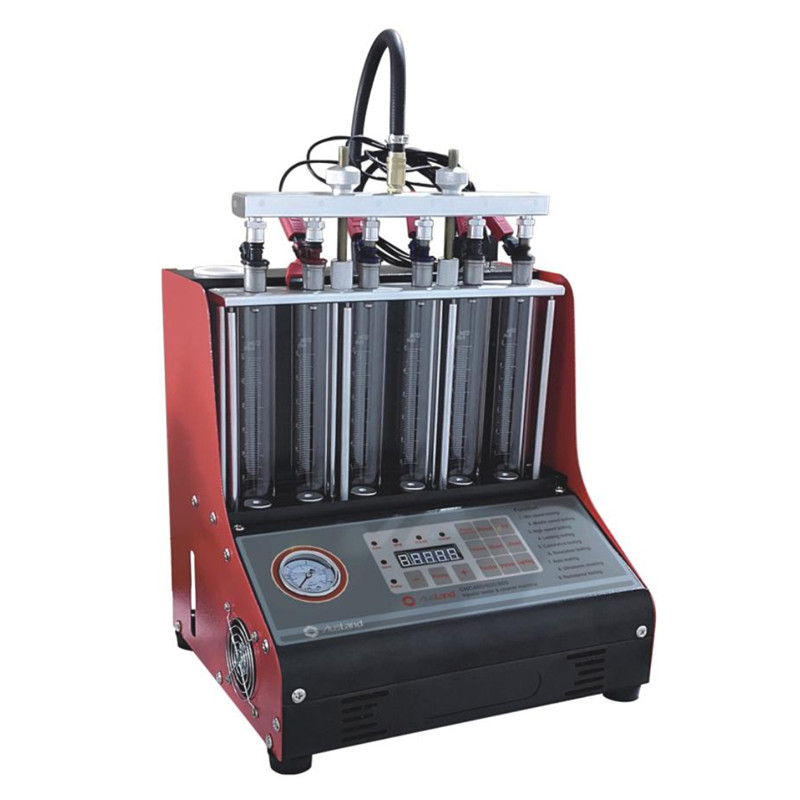

Electronic Fuel Injector Test Equipment CNC600 Injector Cleaning Machine
1 Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2 Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3 Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4 Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5 Auto. test: To test injectors by simulating different working conditions.
6 On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.
CNC600 Ultrasonic Cleaning Machine Specifications:
Power supply
|
300W
85-132vac/170-264vac; 47-63Hz
|
Ultrasonic wave frequency
|
40KHz
|
Ultrasonic wave power
|
75W/100W
|
Rotate speed
|
0-9975r/min, Step: 25r/min
|
Pulse width
|
0-30ms, step 0.1ms
|
Count
|
0-9975r, step: 25r
|
Time
|
0-9975s, step: 5s
|
System pressure
|
0-6.2kg/cm2(variable regulated)
|
Flow of fuel system
|
4L/min
|
Test cylinder
|
4/6/8 cylinder
|
Test tube capacity
|
120cc
|
Weight
|
20kg
|
Dimensions
|
430mm (L) x390mm (W) x480mm (H)
|
Others:
LED display
LED background light
Membrane keypad
Top-supply fuel distributor
CNC600 Ultrasonic Cleaning Machine Features:
Optimization structure design
LED backlight

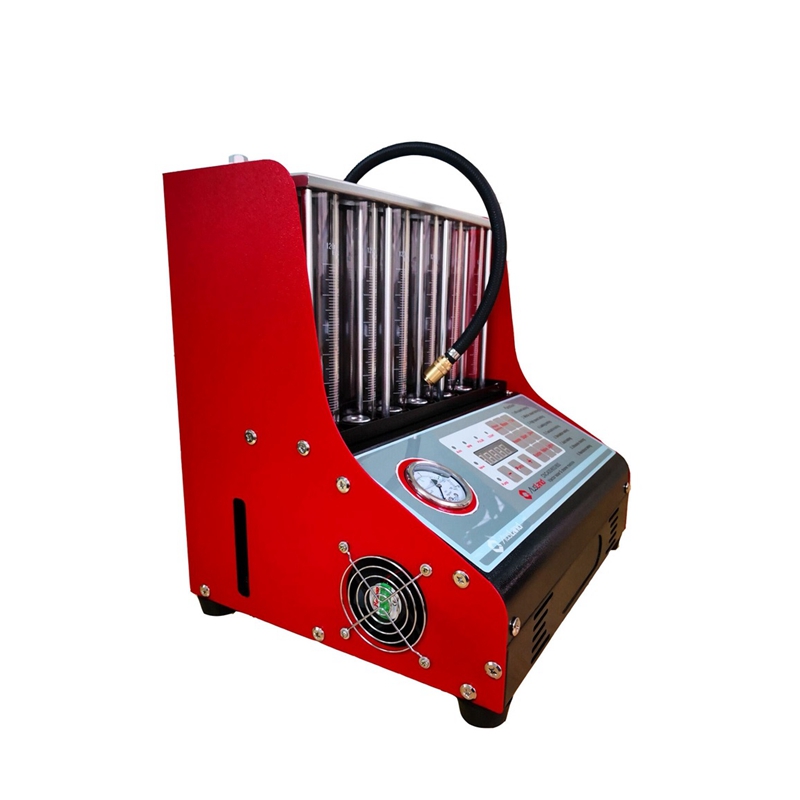

Be equipped with cooling fan
Special material seals
Friendly interface
CNC600 Ultrasonic Cleaning Machine Series:
Injector Cleaner & Tester
Injector cleaning
Injector testing
On-vehicle cleaning (optional)
Functions
Direct flush
Reverse flush
Ultrasonic cleaning
On-vehicle cleaning (optional adapters)
Spray ability test
Uniformity test
Leakage test
Injecting flow test
Electronic drain
