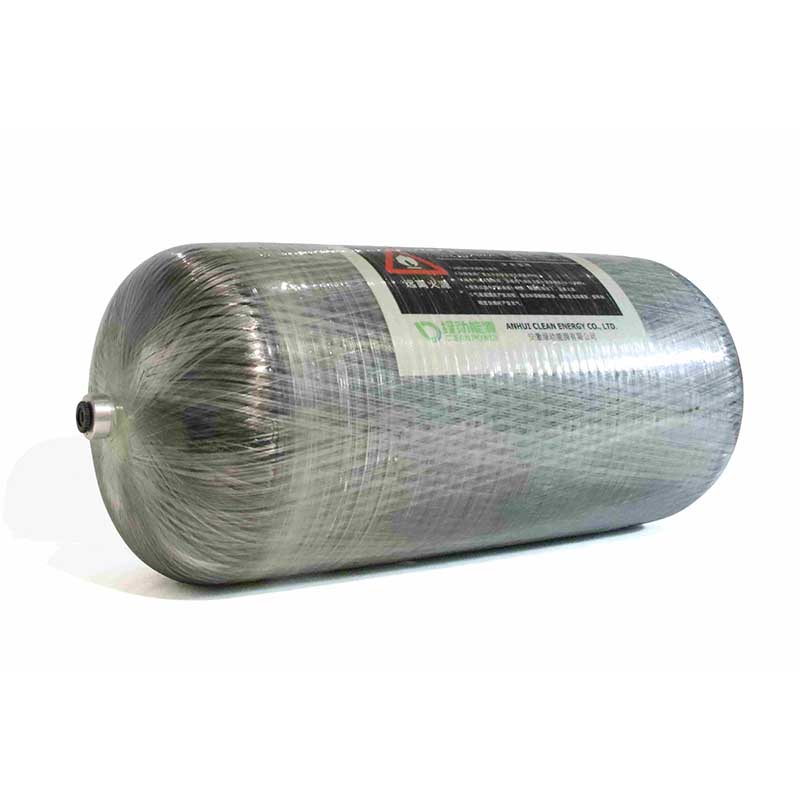

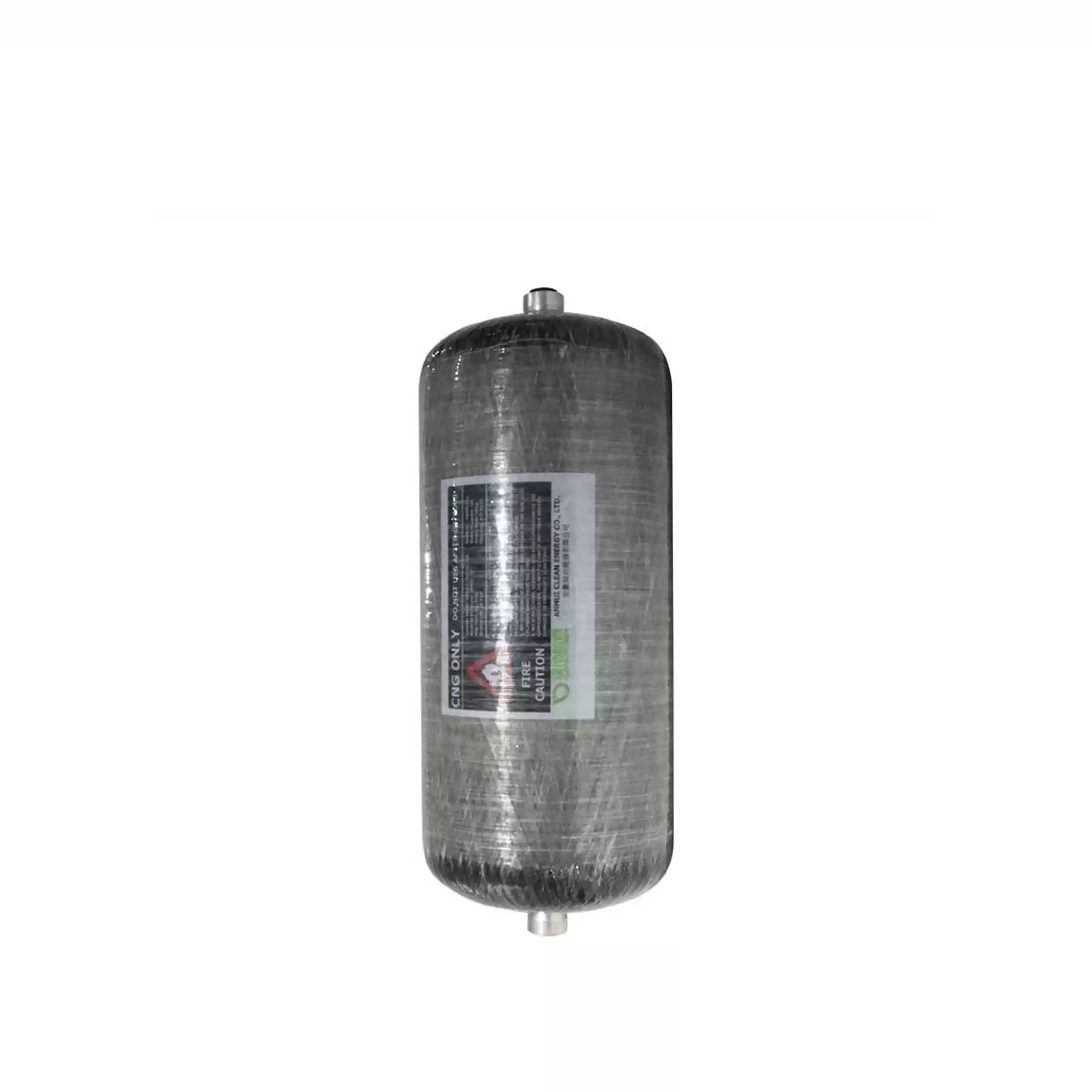

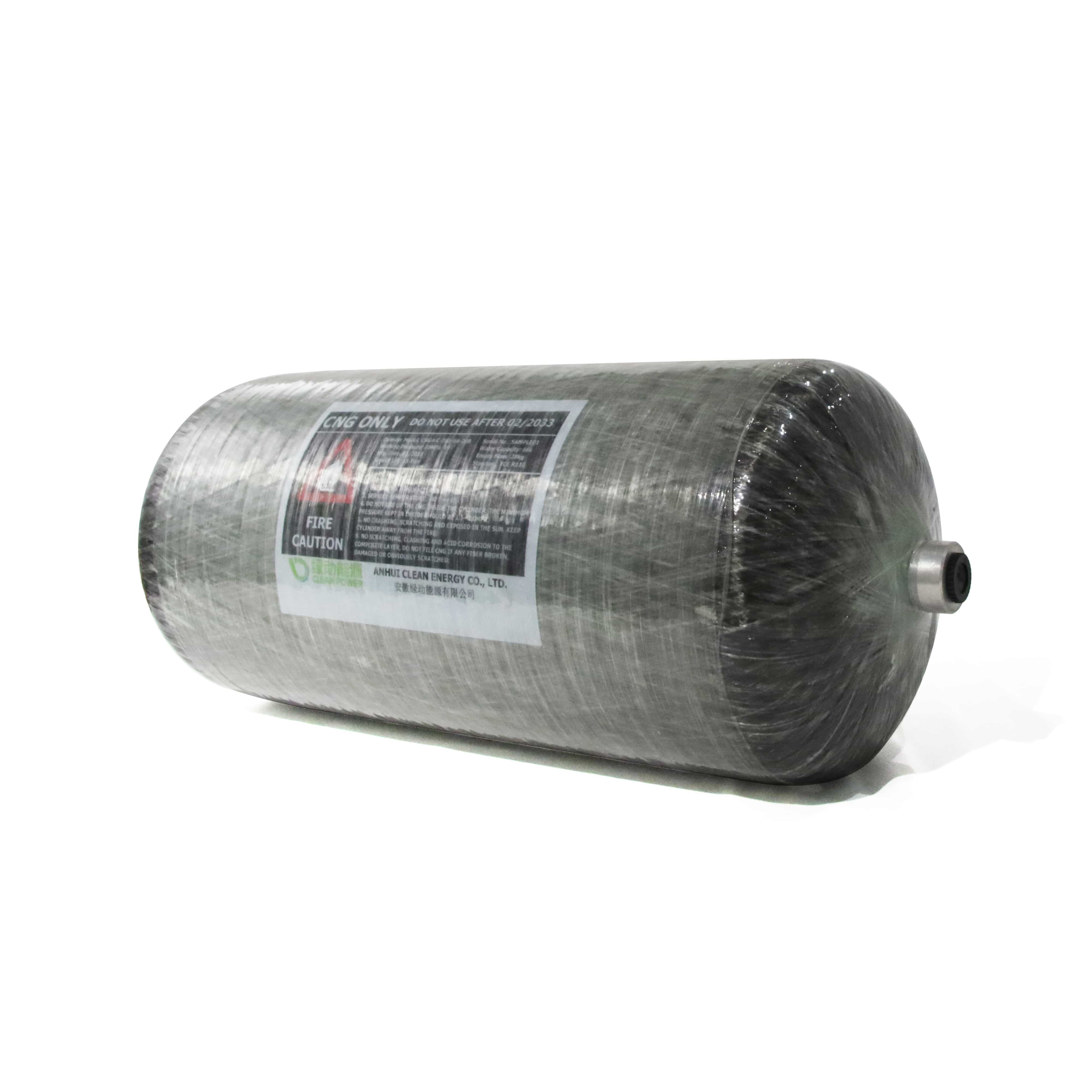

CNG TYPE 4 GAS CYLINDER
Our steel cylinders are produced from seamless steel tubes by applying advanced rotary forming (Hot Spinning) technology-with this technology we can gaurantee the cylinder length torlerance within 10mm . Every cylinder we produced shall be Magnetic Test and UItrasonic Inspection for 100% NDE check. Hydraulic and Airleakage Test are also 100% guarateed
| Implementation standard |
Norminal Working
Pressure(Bar)
|
Hyd.test Pressure
(Bar)
|
Design Wall Thickness
(mm)
|
Material |
Outer Diameter
(mm)
|
Water Capacity
(l)
|
Length(mm) |
Weight(kg) |
|
ECE R110
ISO 11439-2013
|
200 |
300 |
9.8 |
HDPE |
452 |
115 |
1065 |
48.00 |
Product advantage
- Corrosion-free liner Plastic liner does not produce stress corrosion and hydrogen embrittlement
- High fatigue life up to 45,000 times
- High safety performance strong impact resistance
- Supporting flexible products with the same diameter and volume shorter length, can meet the needs of different models of installation space
- The product with the same diameter and volume has small weight, low weight ratio and good economic benefit
.
Why Choose Us?
- Strong production capacity：With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
- Direct sales from the source factory：By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
- 10 years of industry experience：The factory holds IATF 16949 and ISO 9001 quality management system certificates,
- Customization capability：Our products can be customized according to your preferences, including color, size, thread, and logo.
- At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line
CNG Cylinder Product Inspection Display
Through the cylinder to check for many times, we ensure the safety and reliability of the product, let you rest assured to buy and use. Each test procedure is scientifically rigorous and cannot be ignored.
Quality Control
Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.
Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters. We currently have a workforce of 240 employees, including 50 senior technical and management personnel. Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
