Description:
CNG daughter booster station is the compressed natural gas one which gets the CNG from truck-mounted gas storage cylinders, then fill the CNG automobiles. Process system consists of: CNG discharging pole, natural gas compressor, CNG storage equipment, CNG filling equipment, safety protection equipment, electrical equipment, CNG pipelines and accessories etc.
Features:
1、Safety and Reliability—All wearing parts are those made by famous company, and service life can be reached 600-8000 hours.
2、High Efficiency and Energy Conservation—Average capacity is 1500 Nm3/h, low noise, economical operating cost, zero emission when recovering exhaust gas.
3、Structural Diversity—V type, D type and etc.
4 、High Automation—Siemens PLC, ABB soft starter (or frequency conversion), Acousto-optic alarm with system stop when the fault happens. Unattended operation.

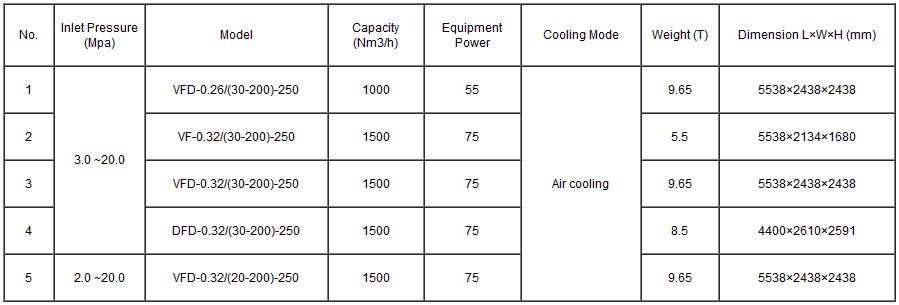

Technical Parameters:
Optional configurations:
CNG discharging pole, natural gas compressor, CNG storage equipment, CNG filling equipment, safety protection equipment, electrical equipment, CNG pipelines and accessories etc.

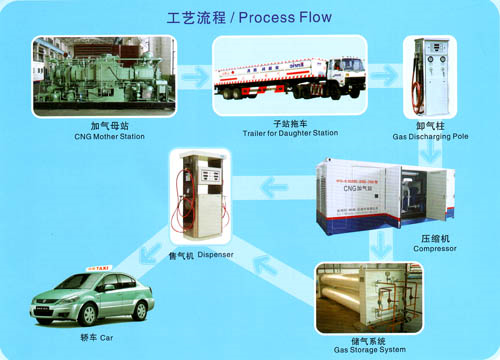

Flow Chart:
Application:
1、One Set Capacity: 1000~1500Nm3/h
2、Driving Power: 45~90KW;
3、Inlet Pressure: 2~20Mpa
4 、Power Supply: Voltage: 380/220V
5 、Medium: Natural gas (comply with the standard of GB18047-“Compressed natural gas for vehicles”)
