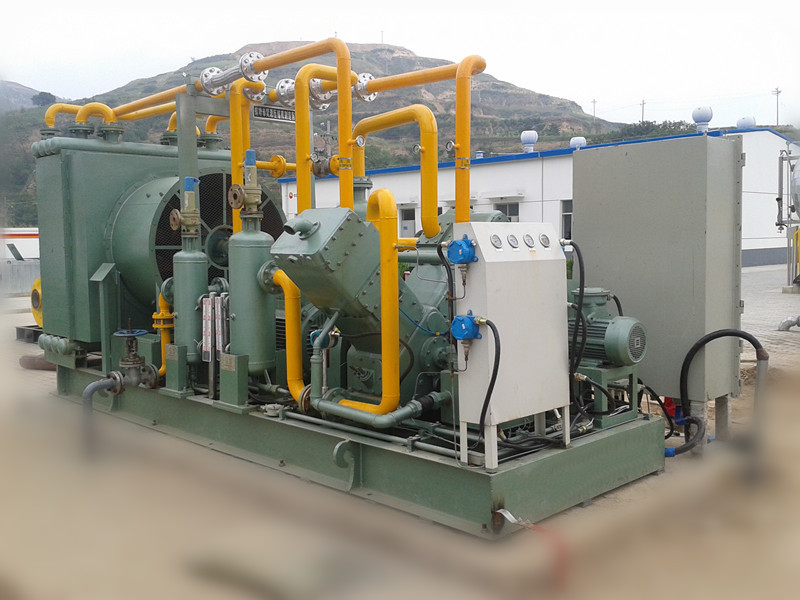

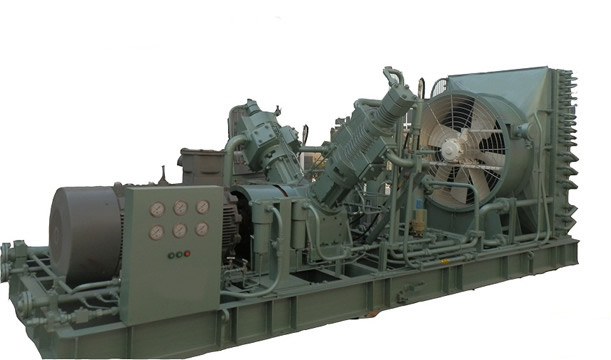

CNG master station compressor
Product USES and features:
CNG filling station for the vehicle-mounted gas cylinder group. Process system: pressure regulating metering device, desulfurization and dehydration device, natural gas compressor, CNG gas feeding facility, safety protection device for gas feeding facility, electrical device, CNG pipeline and components, etc.
1.For the overall skid-mounted type, installation and maintenance is convenient.
2.The compressor runs smoothly with small vibration.
3.Low rotation speed, long service life of wearing parts and low operating noise.
4.The oil is supplied by the pressure lubrication system to ensure the reliable operation of the compressor.
5.The unit adopts advanced PLC control system, high degree of automation.
6.The use of international famous brand air valve, long service life, low noise.
Selection range:
Flow range :0.05-200m3/min;
Pressure range: 0.1-25mpa.
|
The serial number
|
Model
|
Displacement (Nm3/h)
|
Operating pressure (Mpa)
|
Exhaust pressure (Mpa)
|
Electric power (kw)
|
Overall dimensions (mm)
|
|
1
|
LH-5/1-250
|
530
|
0.1
|
25
|
160
|
4600*2600*2000
|
|
2
|
LH-4/1.5-250
|
510
|
0.15
|
25
|
132
|
4600*2600*2000
|
|
3
|
LH-3.2/2-250
|
480
|
0.2
|
25
|
110
|
4600*2600*2000
|
|
4
|
LH-3.6/3-250
|
800
|
0.3
|
25
|
185
|
4600*2600*2000
|
|
5
|
LH-2.5/4-250
|
630
|
0.4
|
25
|
160
|
4600*2600*2000
|
|
6
|
LH-2.5/5.5-250
|
800
|
0.55
|
25
|
200
|
4600*2600*2000
|
|
7
|
LH-3/3-250
|
600
|
0.3
|
25
|
160
|
4600*2600*2000
|
|
8
|
LH-2.5/6-250
|
900
|
0.6
|
25
|
200
|
4600*2600*2000
|
|
9
|
LH-2.7/8-250
|
1200
|
0.8
|
25
|
250
|
4600*2600*2000
|
|
10
|
LH-1.6/8-250
|
700
|
0.8
|
25
|
110
|
4600*2600*2000
|
|
11
|
LH-1.2/10-250
|
650
|
1.0
|
25
|
132
|
4600*2600*2000
|
|
12
|
LH-1.35/10-250
|
750
|
1.0
|
25
|
132
|
4600*2600*2000
|
|
13
|
LH-0.28/(30～200)-250
|
450~1500
|
3.0～20
|
25
|
75
|
5538*2410*2450
|
|
14
|
LH-0.35/(30～200)-250
|
600~1800
|
3.0～20
|
25
|
90
|
5538*2438*2438
|
Dear customers, please provide detailed technical data, we provide you with the correct compressor selection program
|
Compression medium
|
Required delivery
(Nm3/h)
|
Inlet pressure
(Mpa)
|
Outlet pressure
(Mpa)
|
Inlet temperature
(℃)
|
Outlet temperature
(℃)
|
Other
|
