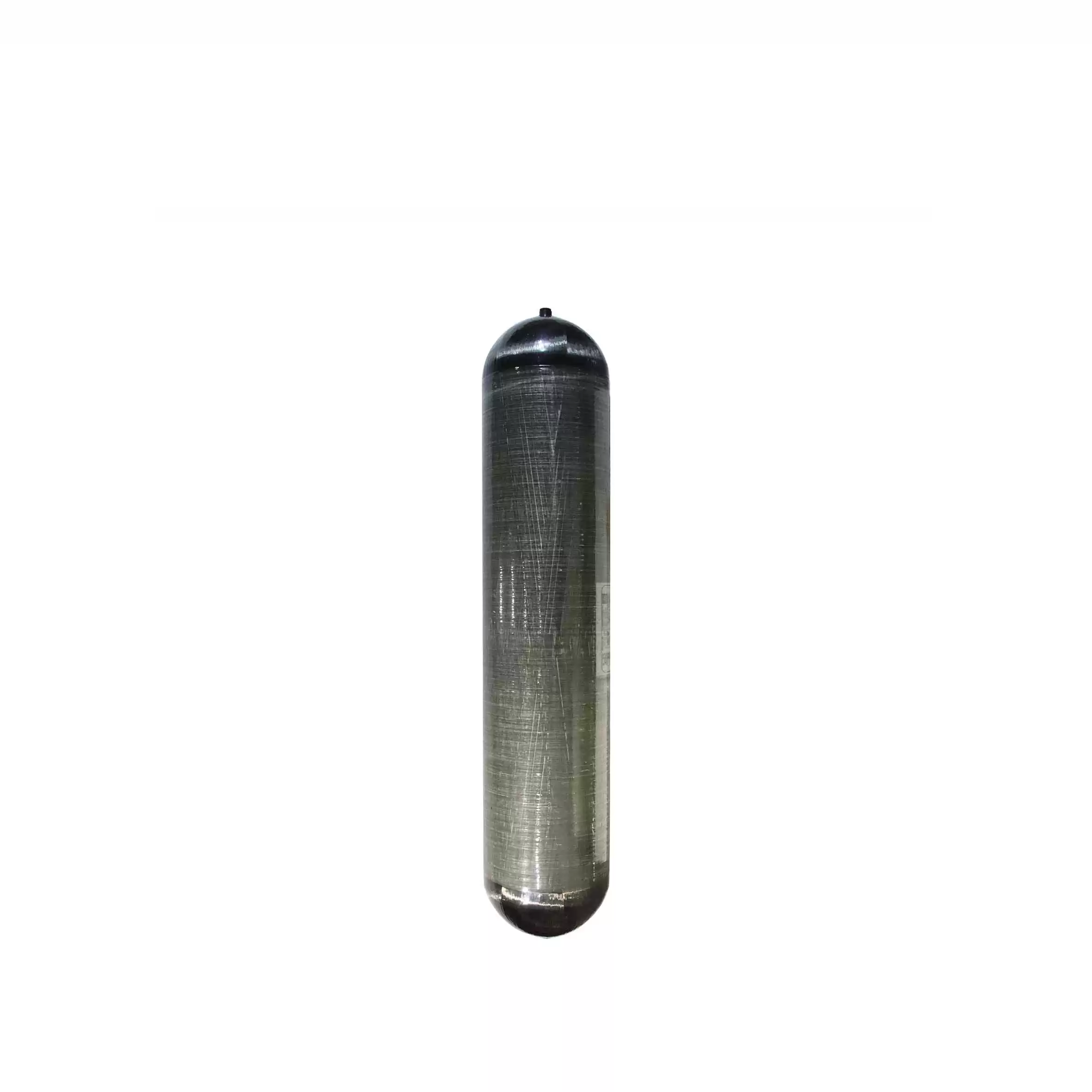

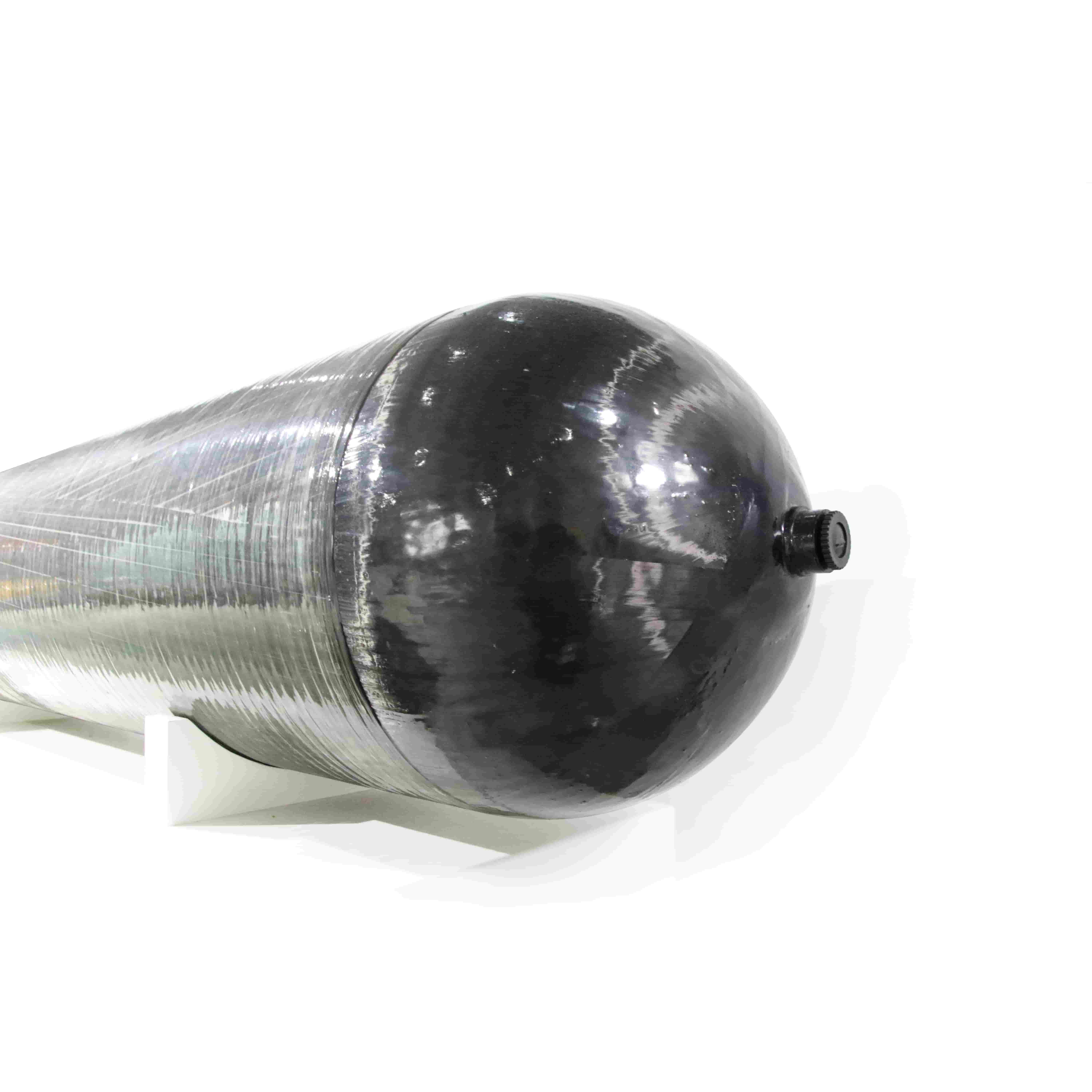

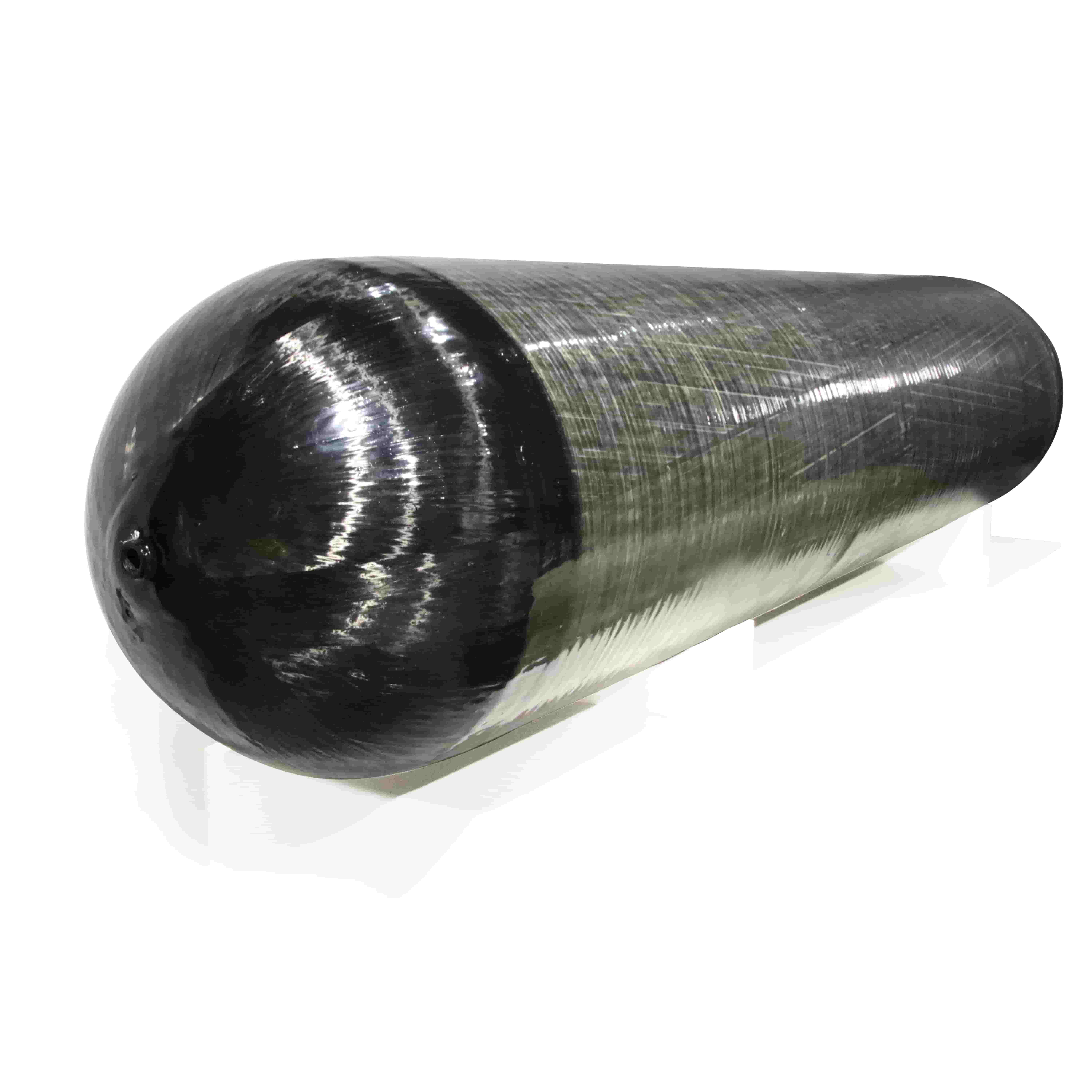

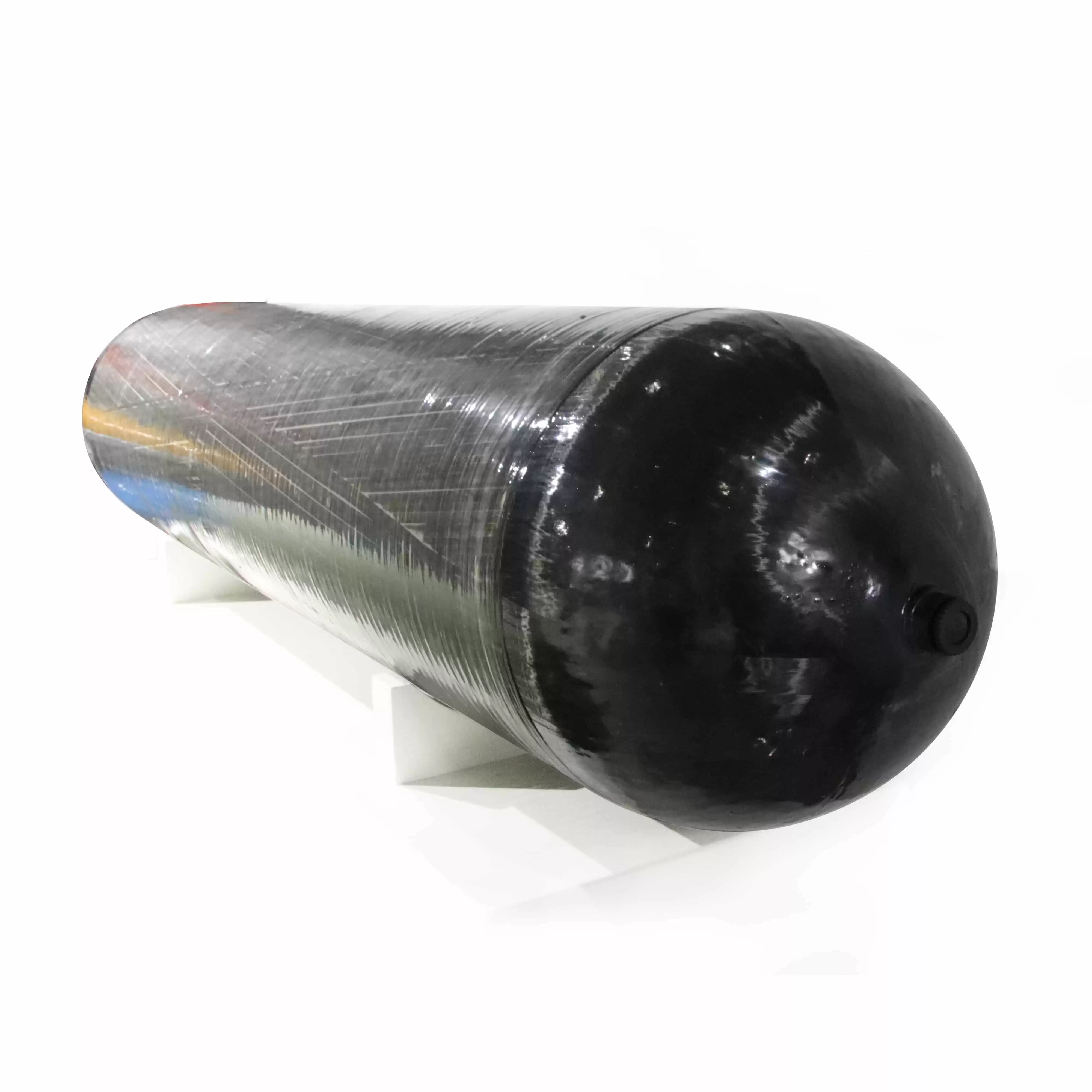

CNG TYPE 3 GAS CYLINDER
CNG 3 gas cylinder We use the wet winding process to impregnate carbon fiber strands in a specific dipping device, and then directly wound to the core mold under tension control, and finally through curing molding method
| Implementation standard |
Norminal Working
Pressure(Bar)
|
Hyd.test Pressure
(Bar)
|
Design Wall Thickness
(mm)
|
Material |
Outer Diameter
(mm)
|
Water Capacity
(l)
|
Length(mm) |
Weight(kg) |
|
ECE R110
|
200 |
300 |
3.5 |
34CrMo4Seamless Steel Tube (30CrMo) + Carbon Fiber |
430 |
260 |
2160 |
135.5 |
Product advantage
- High strength, durable
- High safety performance, mature technology
- The same size, the total air volume is larger, and the net weight of the system is greatly reduced
- Products are of good air tightness, in the process of winding tension control can make excess resin adhesive solution to squeeze bubbles, and fill the gap.
- Carbon fiber surface impregnated with resin glue can effectively reduce fiber wear.
- Fiber arrangement good parallelism.
.
Why Choose Us?
- Strong production capacity：With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
- Direct sales from the source factory：By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
- 10 years of industry experience：The factory holds IATF 16949 and ISO 9001 quality management system certificates,
- Customization capability：Our products can be customized according to your preferences, including color, size, thread, and logo.
- At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line

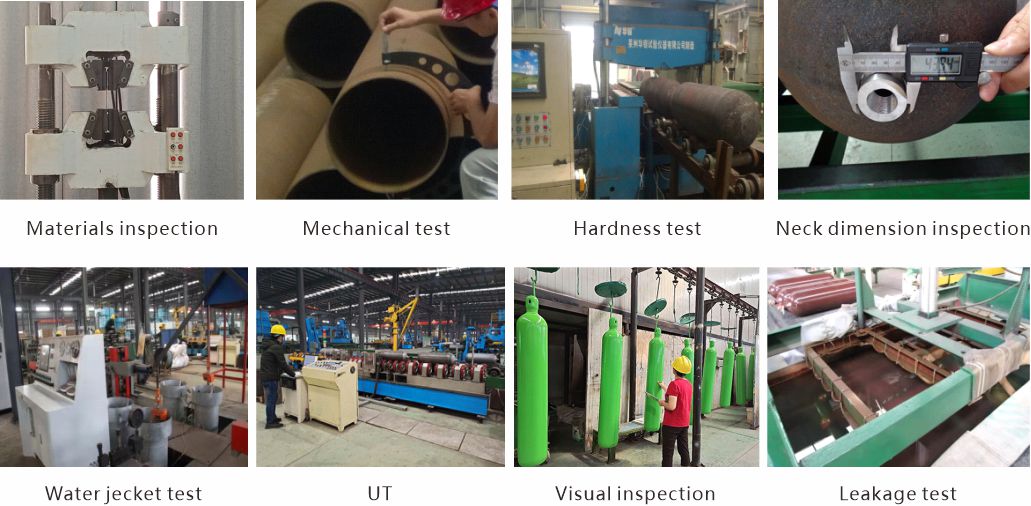

CNG Cylinder Product Inspection Display
Our factory through many cylinder testing, to ensure that the product is safe and reliable, so that you can rest assured to buy and use. Each test procedure is scientifically rigorous and should not be neglected. From materials to processes, CNG gas cylinders strive to combine excellent quality and safety, and each link shows exquisite technology and quality assurance.
Quality Control
Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.
Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters. We currently have a workforce of 240 employees, including 50 senior technical and management personnel. Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
