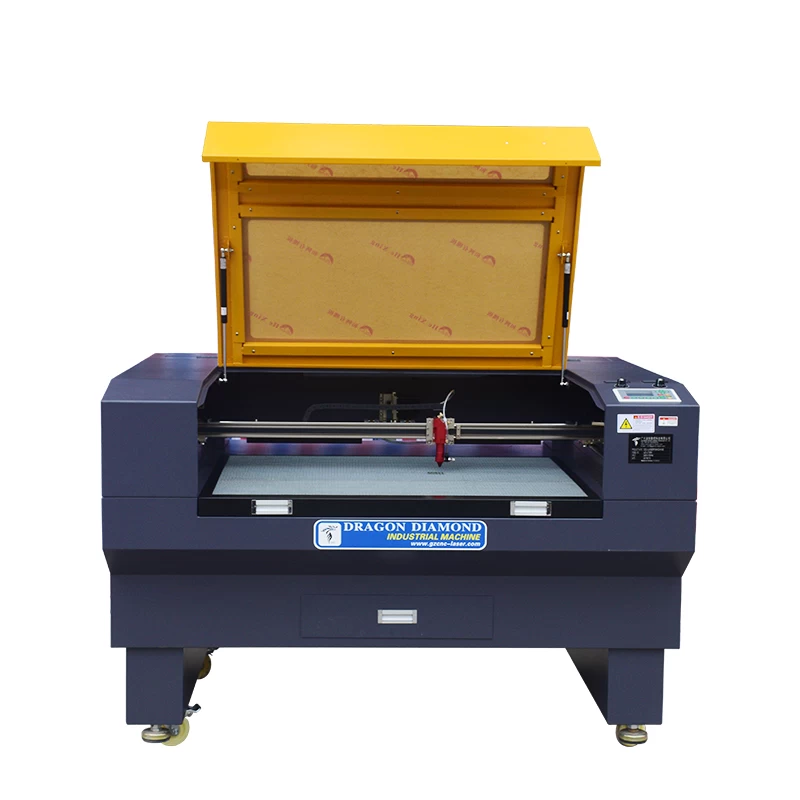

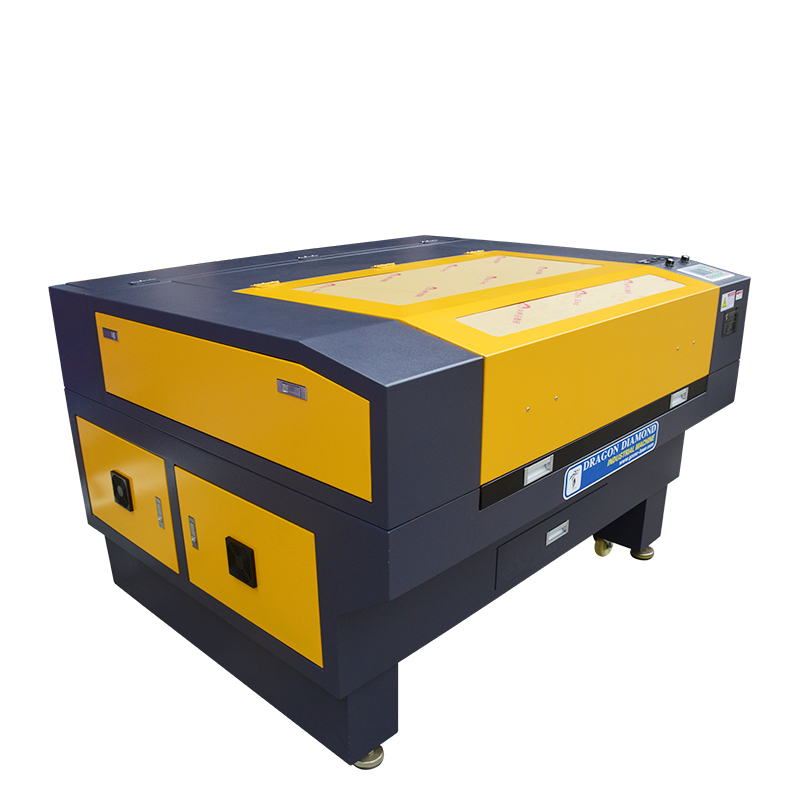

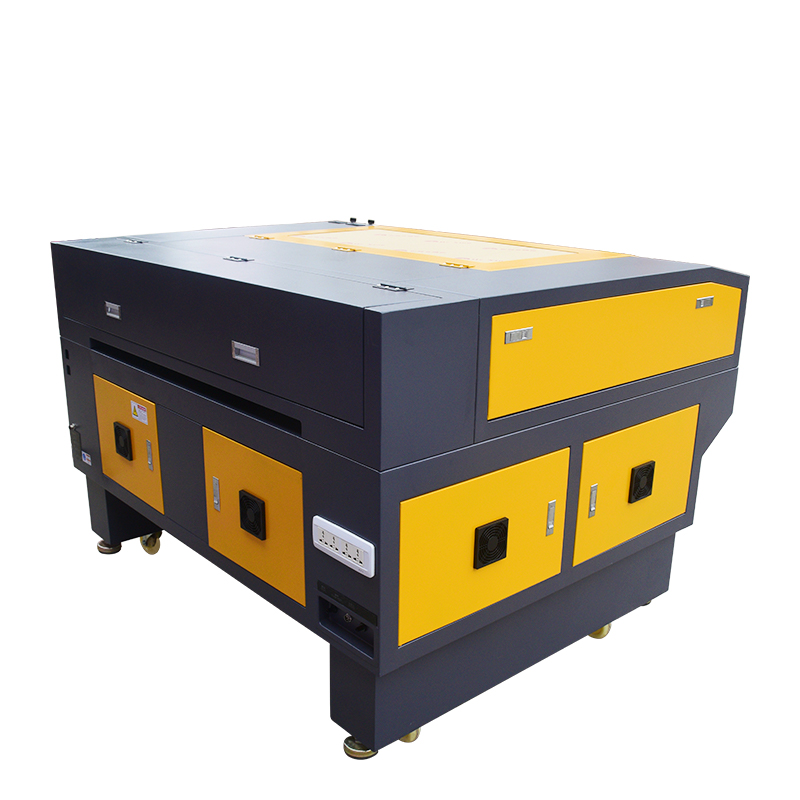

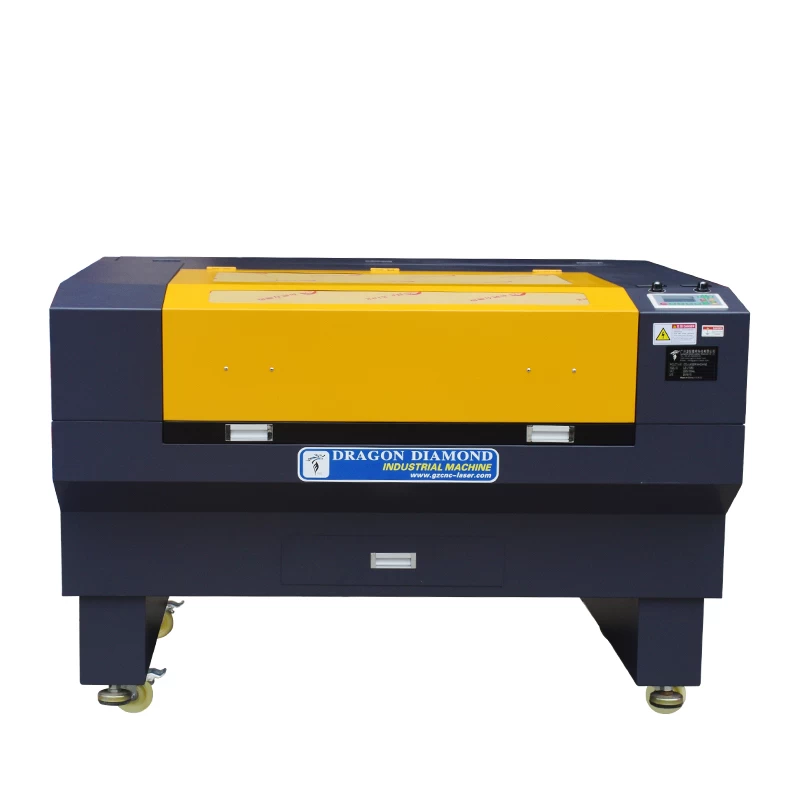

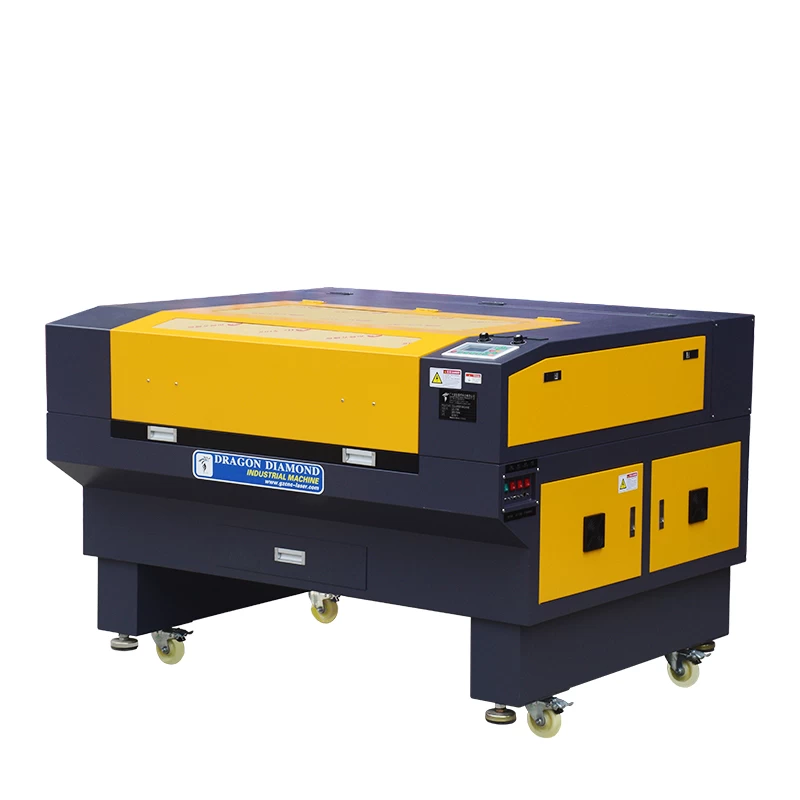

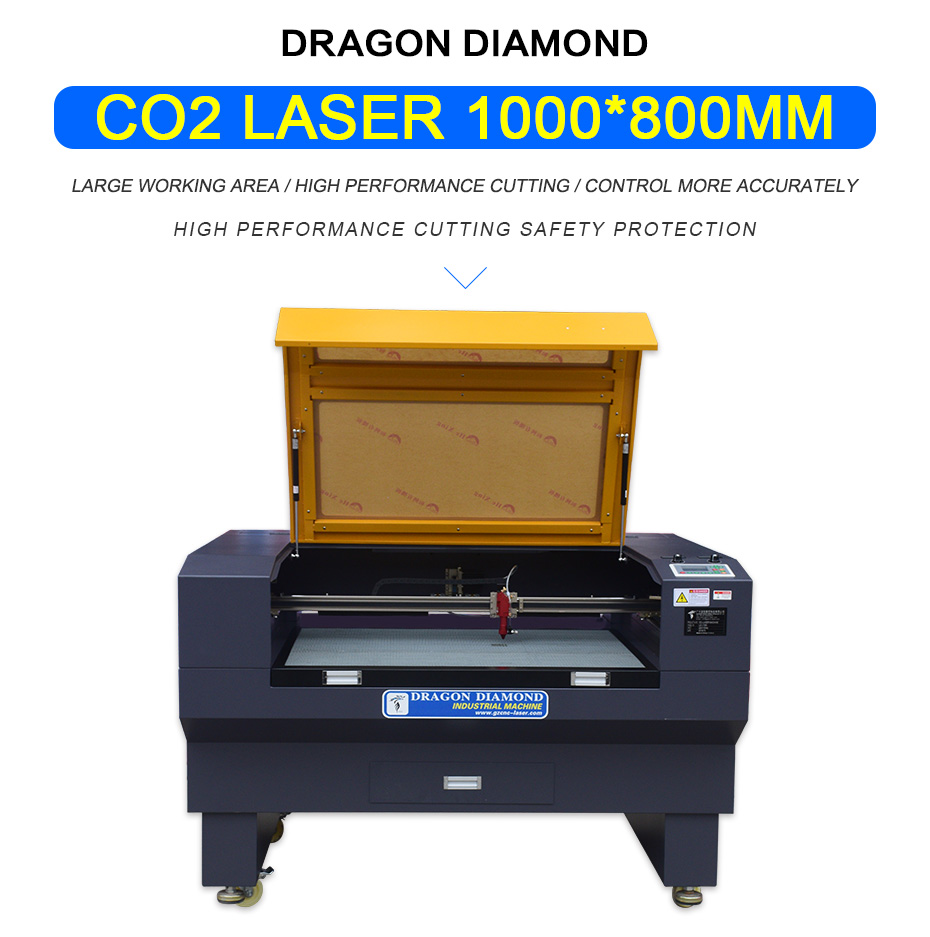

CO2 Laser Cutter 3d Glass Crystal Paper Cutting Engraving Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1080L
|
|
1
|
Working Area
|
1000x800mm
|
|
2
|
Packing Size
|
1650x1400x1300mm
|
|
3
|
Working Table
|
HoneyComb Table
|
|
4
|
Laser tube type
|
CO2 sealed laser tube
|
|
5
|
Cooling System
|
Water Chiller CW5200
|
|
6
|
Control System
|
RUIDA6442G
|
|
7
|
Software
|
RD Work
|
|
8
|
Software supported
|
CorelDraw,Photoshop,AutoCAD,TAJIMA
|
|
9
|
File output mode
|
2.0 USB interface
|
|
10
|
Laser power
|
60~150W for option
|
|
11
|
Motor
|
Leadshine Stepper motor
|
|
12
|
Resolution
|
1,000--10,000 dpi
|
|
13
|
Machine Power
|
<3,000W
|
|
14
|
Minimum Character Size
|
English1.0×1.0mm
|
|
15
|
Engraving speed
|
0-40000mm/min
|
|
16
|
Cutting speed
|
0-10000mm/min
|
|
17
|
Reposition Accuracy
|
0.01mm
|
|
18
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
19
|
Voltage
|
AC220V/110V,50HZ/60HZ
|

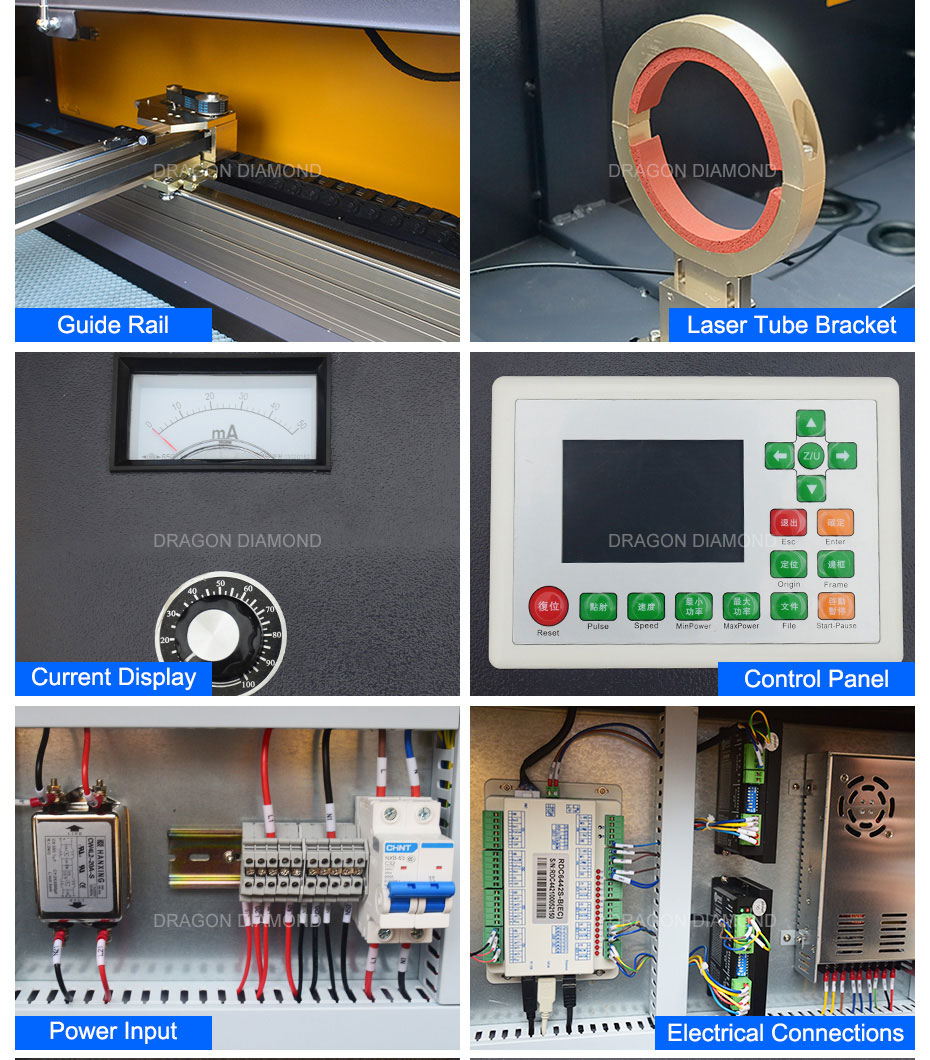

PRODUCT DESCRIPTION
1.RECI brand laser tube
One of the best laser tube in this industry.Optional brands: SP, Yongli, RUISHU, SPT.

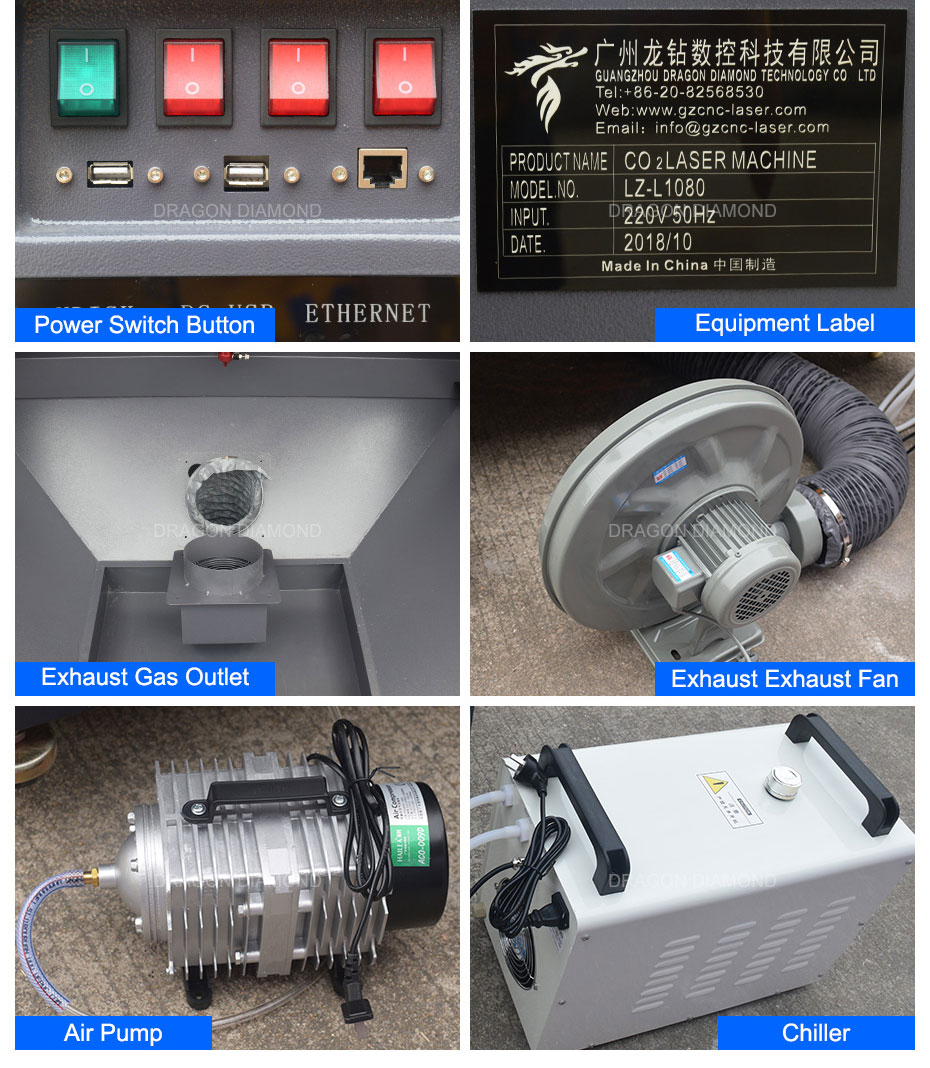

2.USB interface
Machine power switch and Connection ports separately, included controller system, power supply, power Stand-by, Light, etc.

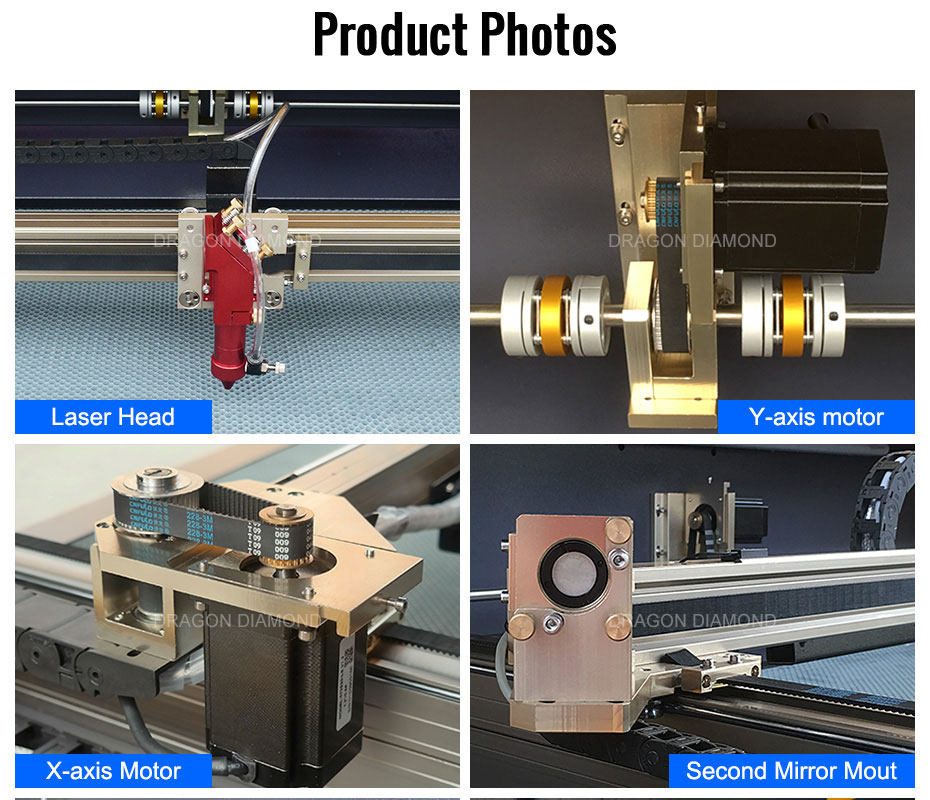

3.Stepper Motor
Stable 3 phases stepper motor, high precision.
4.Ruida controller
High quality, show the working process directly convenient to check.
Other controller brands are optional. Such as Trocen AWC708C, Leetro 6525
