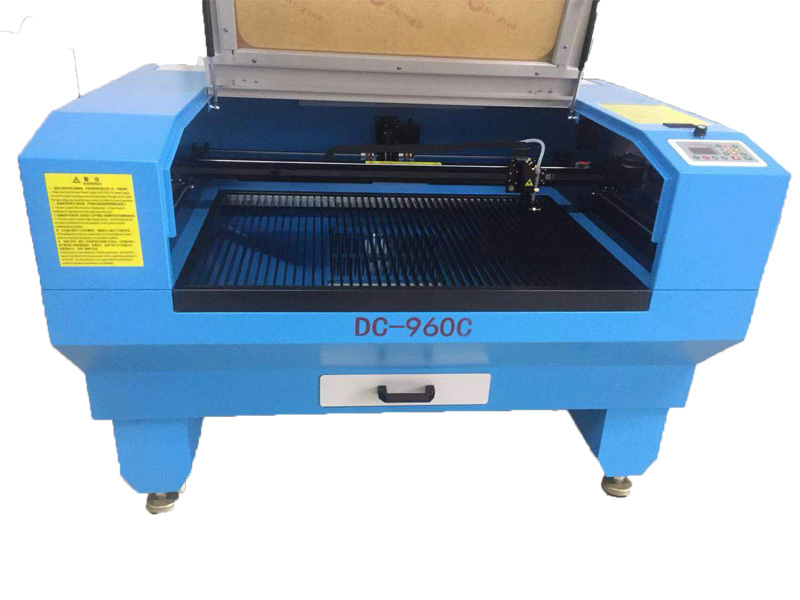

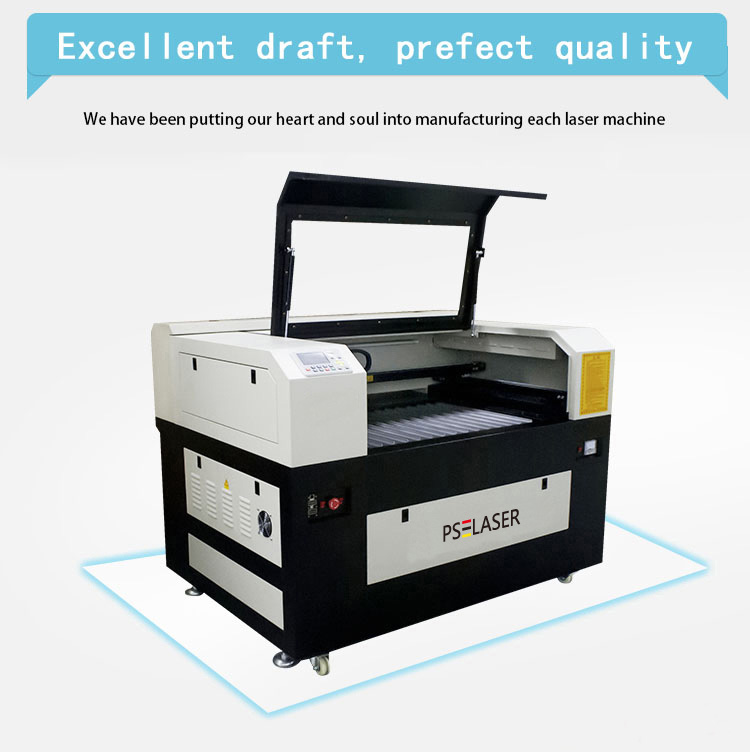

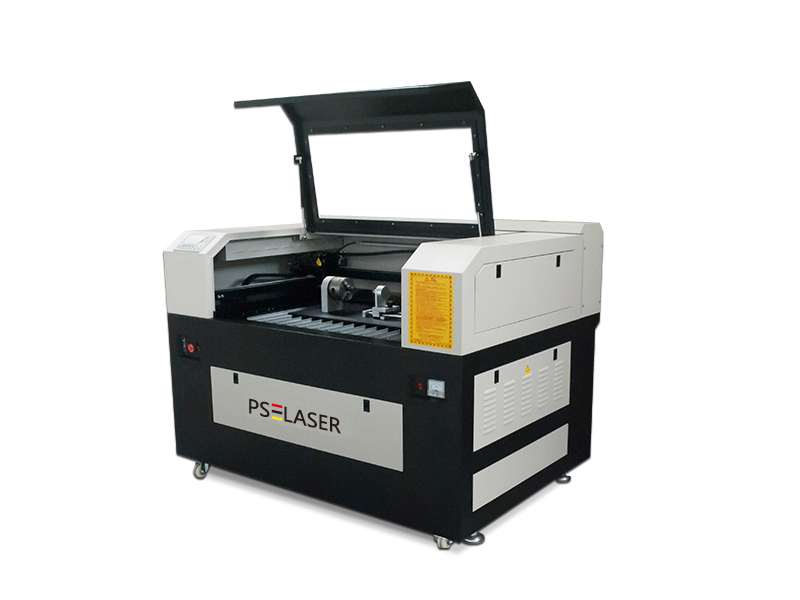

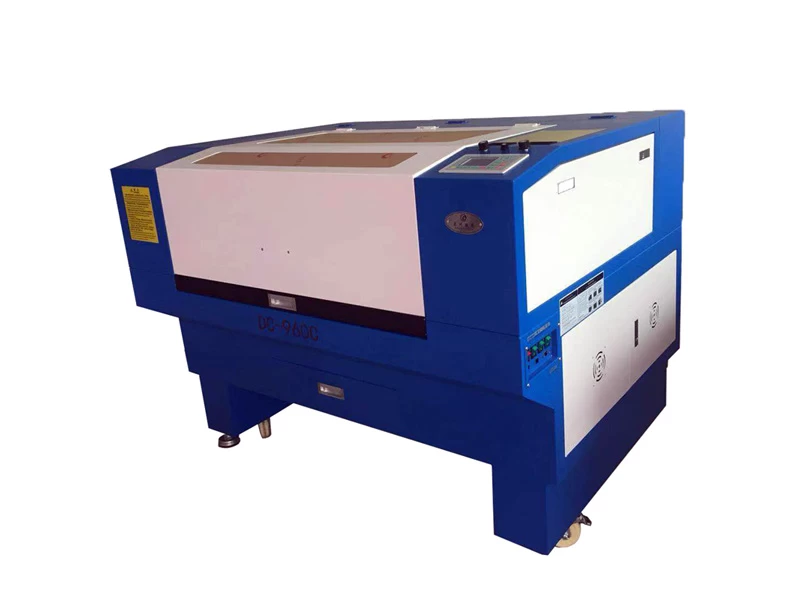

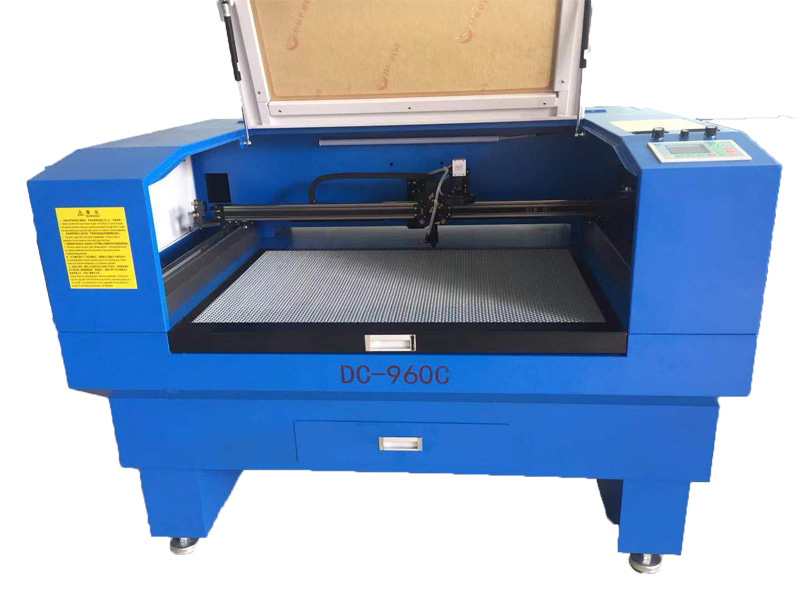

ITEM:Co2 Laser Cutting Machine
Co2 laser metal cutting adopts DSP digital control technology and integrated design, with high value performance. Latest software could be used together with professional drawing software plugins such like CorelDraw,Auto CAD etc. And Support AI, PLT, DXF, DST and more format files. The first one in laser industry that adopts cable data interface, supports hot plug and transfers data instantly. The work efficiency is highly improved.

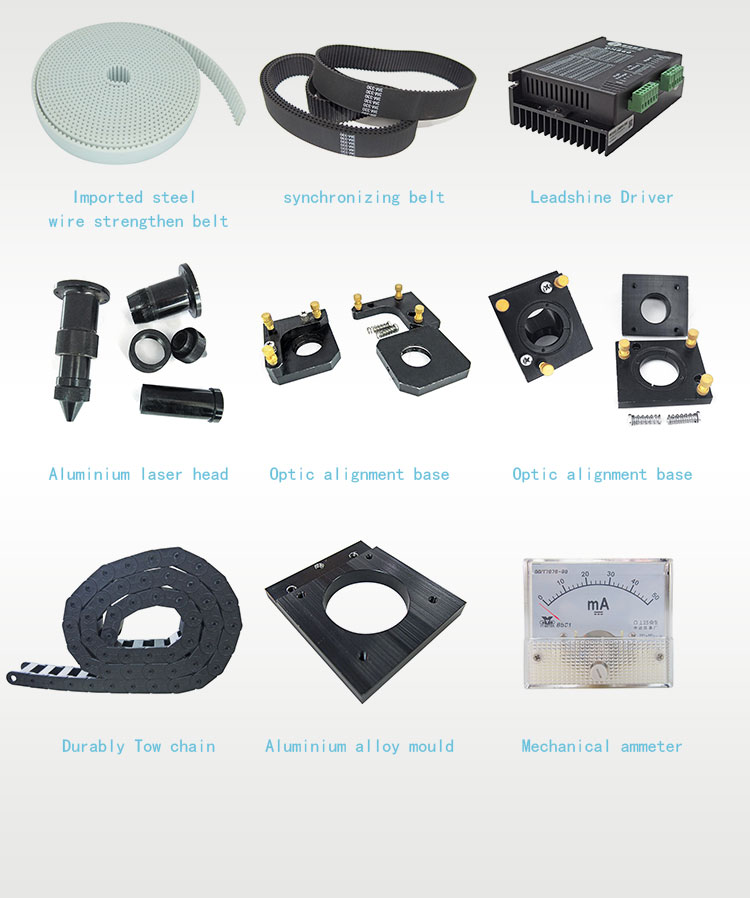

Main Parts:

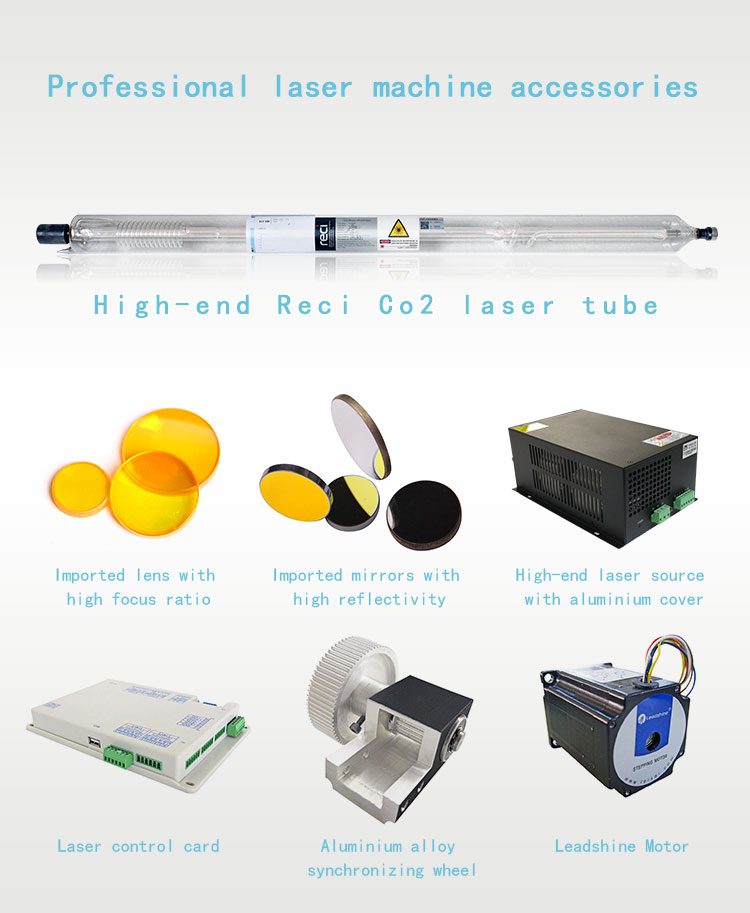

1. High quality CO2 laser tube, life expectancy 10000 hours and guarantee 9 months fix.
2. Full aluminum enclosure laser power, strong stability performance.

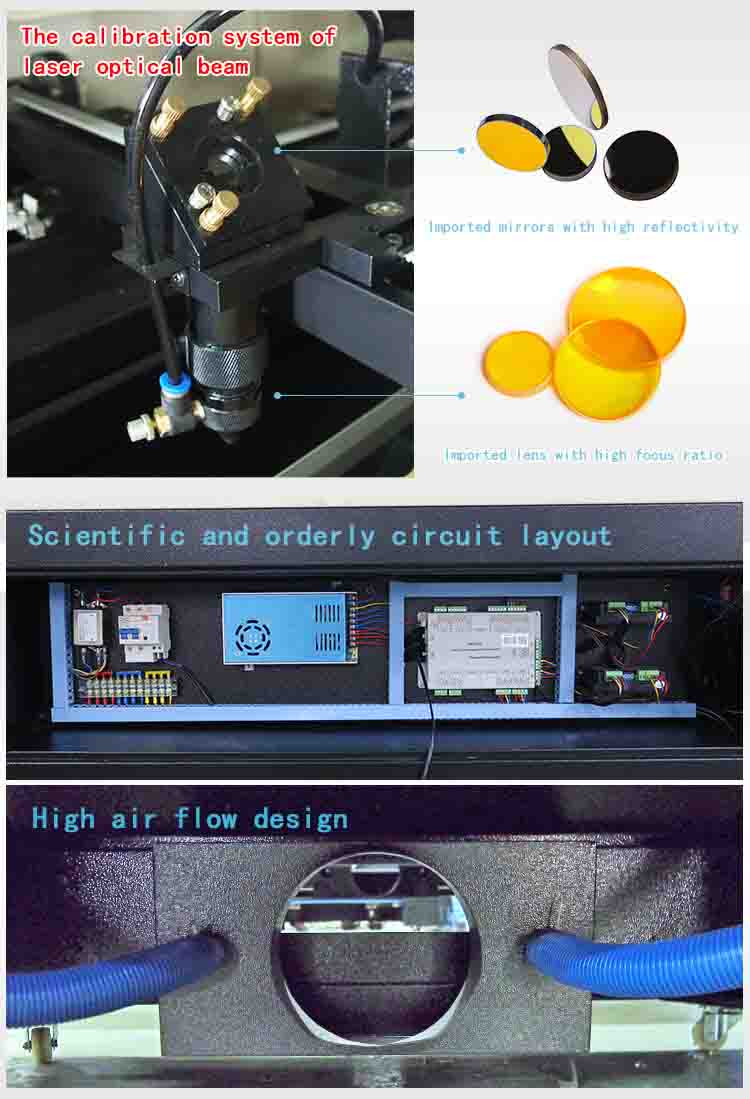

3. Lens and mirror import from the USA with high reflectivity and small focal spot.

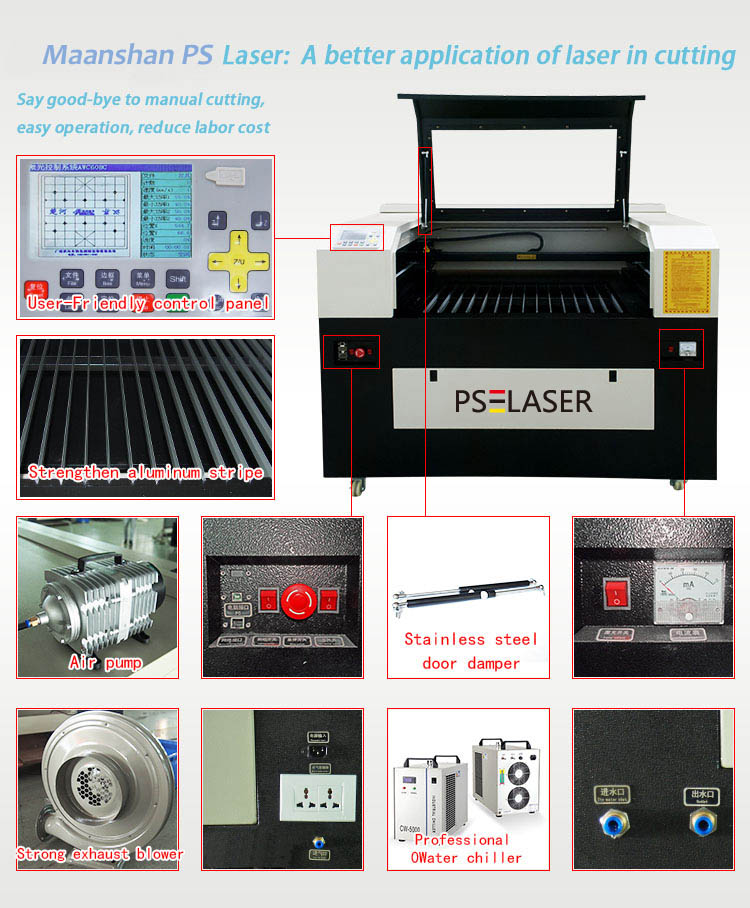

4. LCD with Chinese and English version, humanized control panel

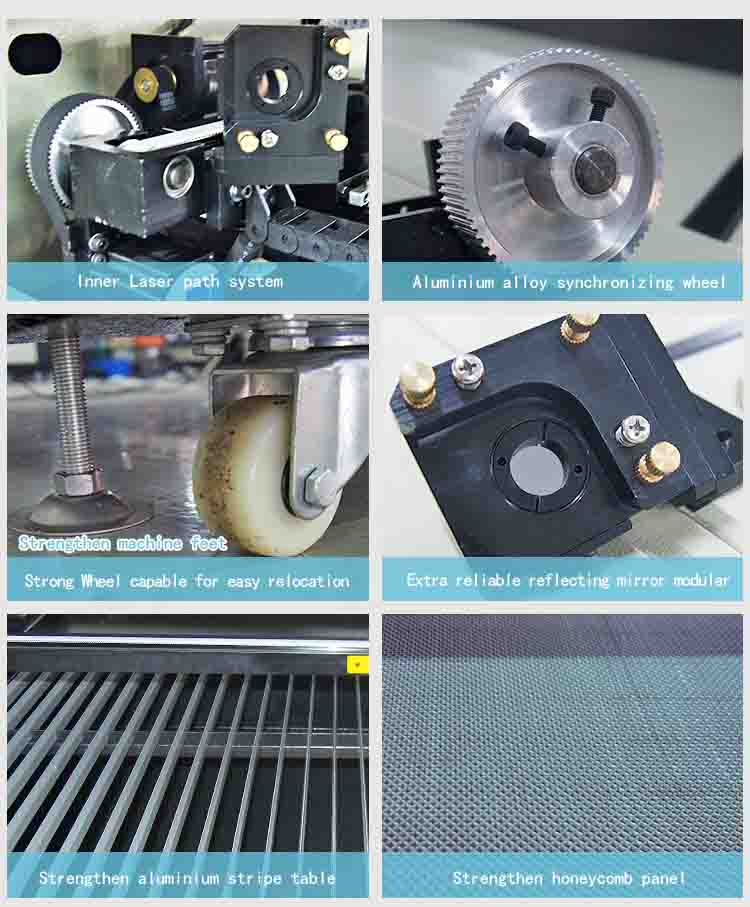

5. Korea imported adjustable high speed guide rail, more smoothly running.
6. Adjustable Korea Winner high speed guide line which ensures the smooth moving.
7. Leadshine stepper motor and drive system,strong stability performance
8. Authorized system operating software
9. Milling machine processing to ensure the life time and precision of the laser machine body.
Technical Parameters:
|
Model
|
PS960、PS1390
|
|
Working Area
|
900*600mm、1300*9000mm
|
|
Laser power
|
60W,80W,100W,150W
|
|
Laser Type
|
sealed CO2 laser tube
|
|
Working Platform
|
honeycomb or blade
|
|
Working Speed
|
≤800mm/s
|
|
Resolution Rate
|
±0.05mm
|
|
Supported Graphic Formats
|
BMP,PLT,DST,AI,DXF,etc
|
|
Cooling Mode
|
water cooling and protection system
|
|
Compatible software
|
CoreDraw AutoCAD Photoshop
|
|
Working Voltage
|
AC220V±10%,50-60Hz, 10A max
|
|
Working Humidity
|
5％~95％ (without condensed water)
|

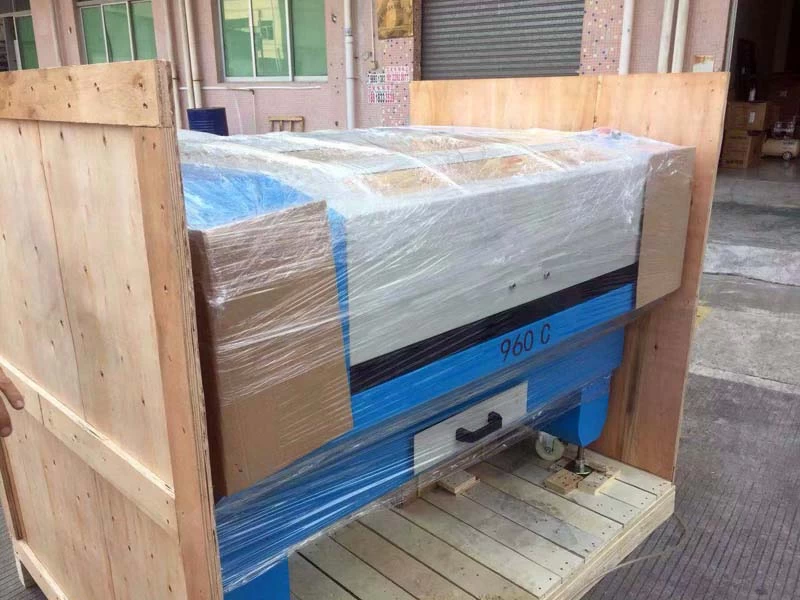

PACKING:
