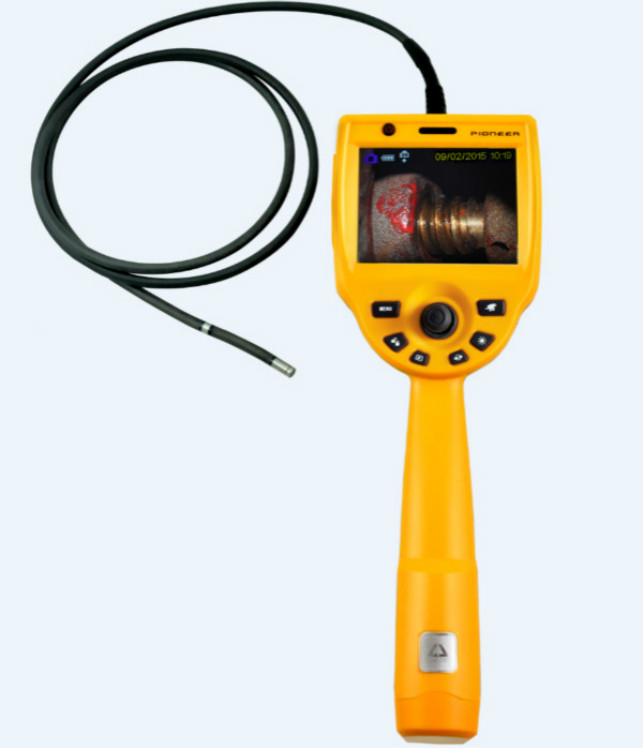

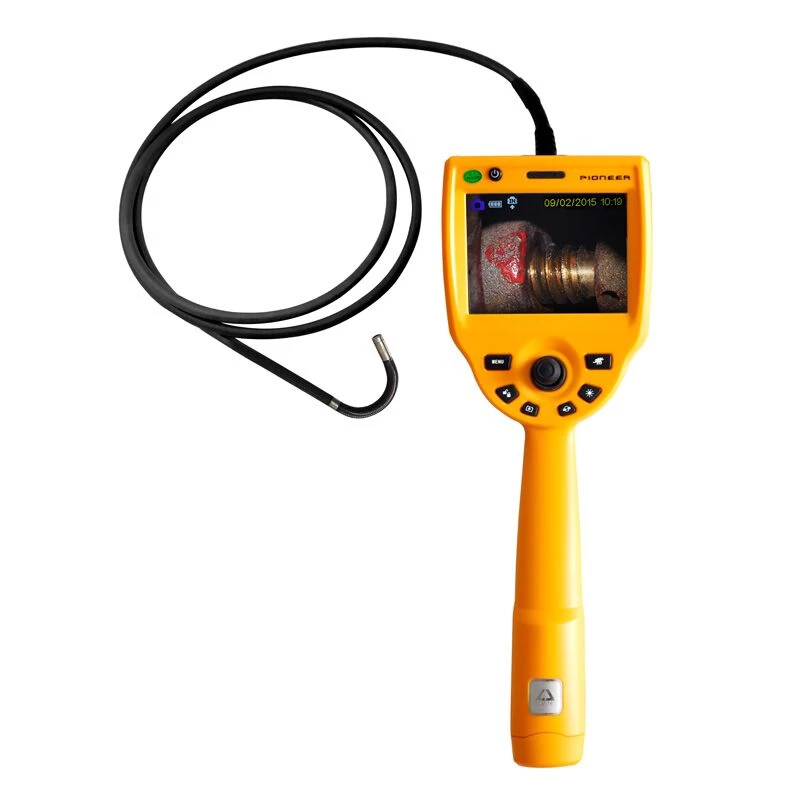

Coantec E5 Motor Control Industrial Videoscopes With 10 Meters Tubes
Long tube maximum 10 meters and bending upto AOF 120° Motor drive joystic for easy operation

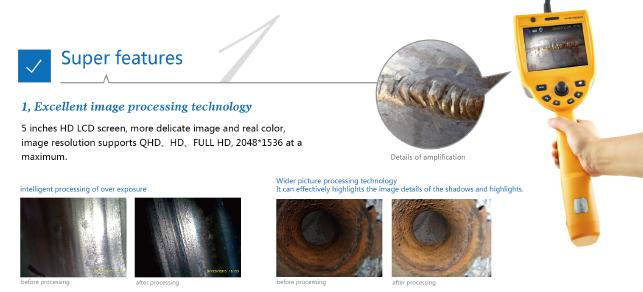

Excellent Image processing technology
5 inches HD LCD screen, more delicate image and real color, image resolution supports QHD、HD、FULL HD, 2048*1536 pixels at a maximum.
Long Insert tube
The length of insert tube can be customized, up to 2 meters, 120° bending angle. This technology breakthrough is fully used in the inspection of pipeline,
header and heavy equipment.

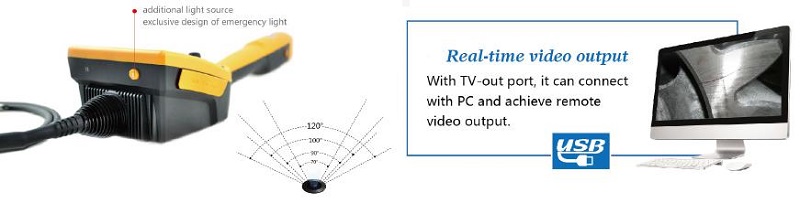

Super illumination and wide viewing angle
Rear-mounted LED light, Optic fiber light guiding; the illumination is up to 100,000Lx. Good performance for dark and harsh environment.
Real-time video output
With TV-out port, it can connect with PC and achieve remote video output.
Excellent quality

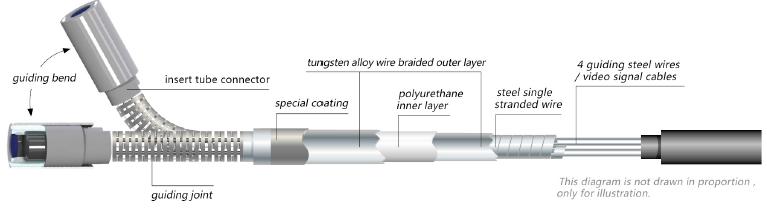

Double tungsten alloy braided insert tube of 4 layers
Wear resistance: 20 times better than steel wire insert tube
flexibility: 4 times better than other materials

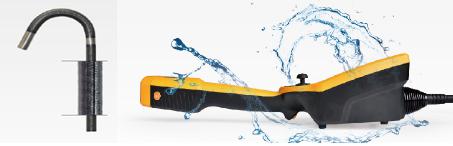

Waterproof and wear-resistant
Pass a large number of harsh environment testing: -25~85 degrees working environment
Waterproof and dustproof: insert tube IP67; 1.2 meter fall resistance
Wear-resistant probe and laser welding process
Titanium alloy probe case, the wear resistance is 100 times that of ordinary stainless steel probe.
Sapphire protective lens, the intensity is 8 times that of quartz lens and 20 times that of stalinite lens.
On the part of insert tube probe, we used 21-point laser welding process, which has more strict requirements for the producing precision.
This precise process ensures E5 series borescopes owns powerful guiding function.
Low energy cost and long-lasting work time
rechargeable batteries, low power consumption design, saving 30% power.
Working time：4.5 hours

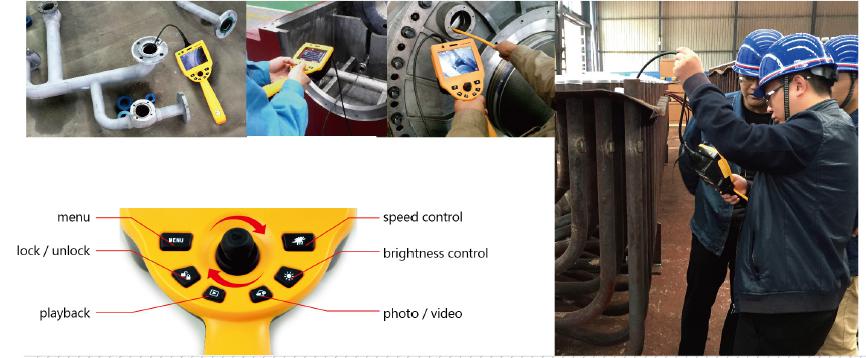

Easy operation
Intelligent guidance menu
The intelligent guidance menu is simple and clear. Easy operation for rookies.
It supports 7 languages, including Chinese, English, Russian, etc.
0.1 second auto exposure and white balance function, helps to quickly capture the real details of detected objects and feedback with HD image.
Light and handy
Complete accessories and long working time
The total weight (with battery) is only 1.45Kg. It is also equipped with leather bag, safe and portable for different inspection environment.

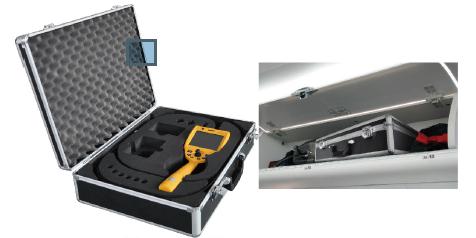

The packaging case is fall-resistant, light and portable. Users can easily put it into luggage rack in the aircraft, train, etc.
With a design of low power consumption, a set of rechargeable lithium batteries of E5 series can work at least 4 hours. It is equipped another
set of batteries to support long time inspection work.
Coantec also supply Automotive Borescopes for high performance cars and vehicles. Search it now!
Specification:
|
Angle of Field
|
70°
|
|
Depth of Field
|
10～80mm/5mm～∞/45mm～∞（optional）
|
|
Light Type
|
Rear-mounted LED（≥3w hour）
|
|
Illumination
|
100,000lx at a maximum，adjustable
|
|
Intensity Adjustment
|
Manual, six levels
|
|
White Balance
|
Auto white balance
|
|
LCD Monitor
|
Highlight 5.0” LCD screen
|
|
Language
|
Chinese,English and other five languages
|
|
Photo/Video
|
JPG image,AVI video
|
|
Memory
|
standard :8G SD card, max 32G
|
|
Data I / O port
|
USB port, TV out video signal output, support display connection
|
|
Insert Tube Length
|
2.0m
|
|
Bending Angle
|
≥160°
|
|
Insert Tube Material
|
quadruple-wall braided tubes of Tungsten alloy wire
|
|
Construction Material
|
Dropping-resisting alloy outer case
|
|
Camera Material
|
Titanium alloy
|
|
Protecting Device of Durability
|
Protecting device joint the host and wear-resisting tube ，length: ≥120mm
|
|
Control panel
|
Setting、playback、photo/video、rotary sensibility of probe、intensity adjustment
|
|
Flashlight
|
Supportable lighting for dark room
|
|
Waterproof
|
IP67:Probe,objective lens ( official inspection report available )
|
|
Working Time
|
≥3 hours
|
|
Host Weight
|
≤1.5kg（with batteries）
|
|
Power Supply
|
Rechargeable lithium battery
|
|
Voltage
|
DC12V, 1A maximum current
|
|
Warranty
|
12 months, life - long maintenance
|
Operating Environment:
|
Host System Operating Temperature
|
-10 ° C ~ 50 ° C, the LCD screen to be preheated below 0° C
|
|
Video Probe Temperature
|
--20 ° C ~ 70 ° C, 0 ° C the following should be reduced steering
operations
|
|
Storage Temperature
|
-20°C~60°C
|
|
Relative Humidity
|
Up to 90%, non-condensing
|
