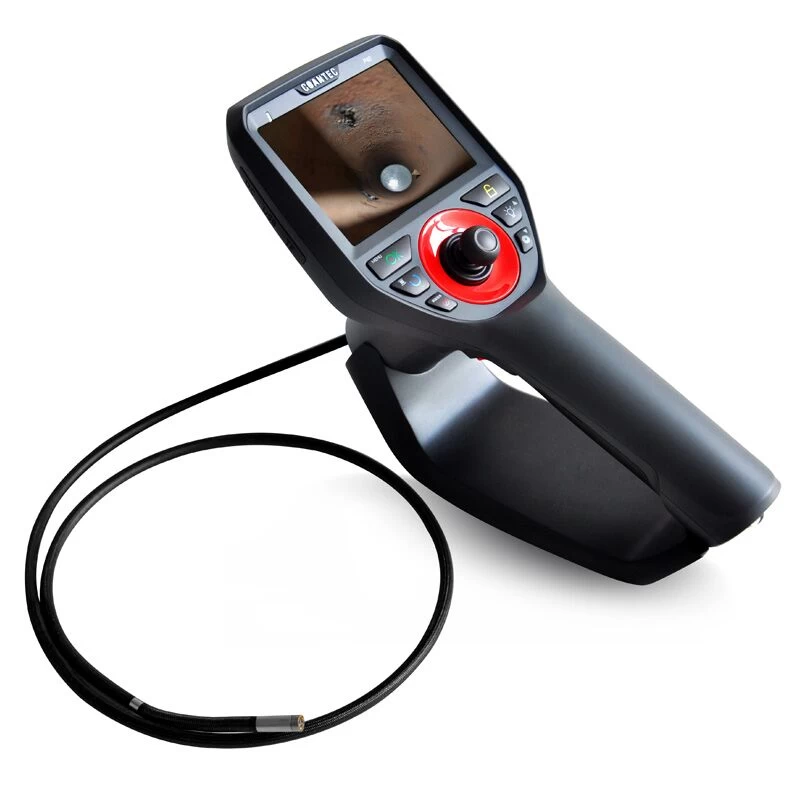

Coantec M3 Industrial Videoscope Detachable Insertion Tube

Detachable tubes for different diameters.

Portable and one-hand operation.

Rated IP67 waterproof(probe,tube)

Sync up with PC for real time picture.

Coantec M3 Industrial Videoscope Detachable Insertion Tube

This series Videoscope is with strong functions like HD camera and replaceable tube.And it is available in many fields.

Top Features:

Parameters:

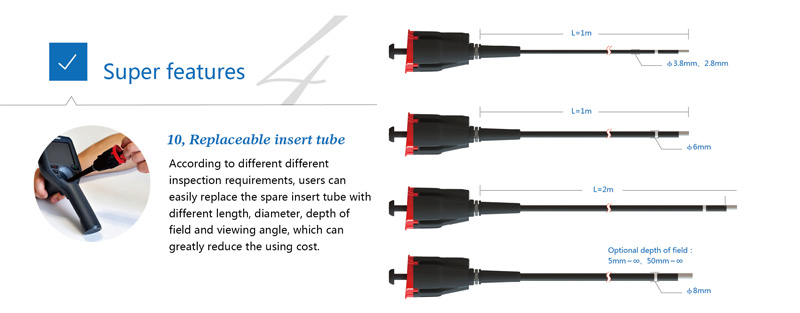

Replaceable Insert Tube	Users can easily replace the spare insert tube.
Remote Connection	Connect with computers and remotely view the situation of measured object in real time.
Camera Diameter(mm)	Φ6mm/3.8mm/2.8mm

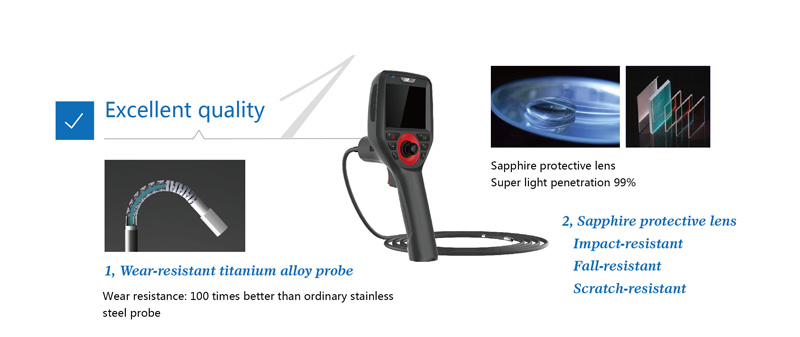

Camera Material	Titanium alloy
Camera Pixel	450,000

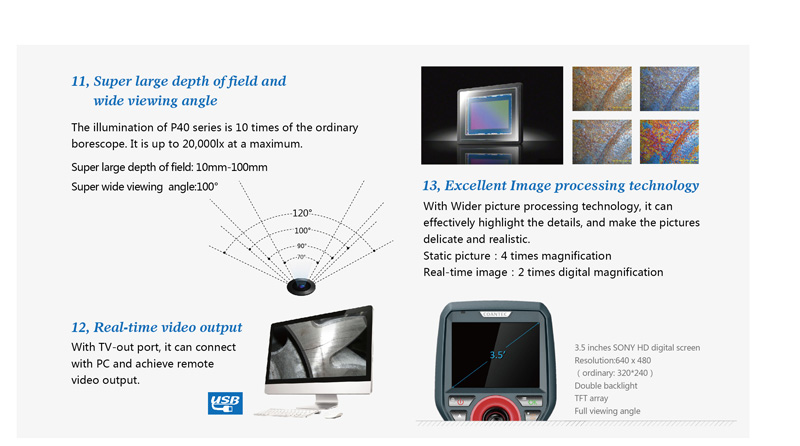

Depth of Field	10-100mm
Angle of Field	120°
Illumination	20,000lx at a maximum，adjustable
Bright/Chroma/Contrast Ratio Adjustment	Manual：bright: six levels，chroma and contrast ratio: manual adjusting
Bending Control	360° manual omni-directional control
Bending Angle	≥160°
Effective Working Length	1.0m/1.5m/2.0m

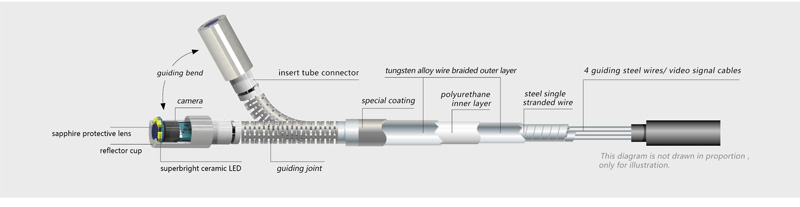

Insert Tube	Quadruple tungsten-braided tubes
Protecting Device of Durability	Buffer protection device between the host and wear-resistant tube
Display	Highlight 3.5 inches TFT LCD
LCD View Angle	85°
Image Resolution	720*480
Memory	Standard TF card:8G, Maximum: 32G
Data I/O port	Micro-USB port、Video output port
Waterproof	Camera/Object glass/ Tubes: IP67
Host Working Time	≥4 hours
Weight	≤0.55kg（with batteries）
Power Supply	LG or Samsung Rechargeable lithium battery
Battery Capacity	4.2V 2200mAh
