Wooden grain coated aluminum coils are widely applied to ACP,
aluminum ceiling, roofing, fireproof roller shutter, doors, wall panel , facade cladding, etc.

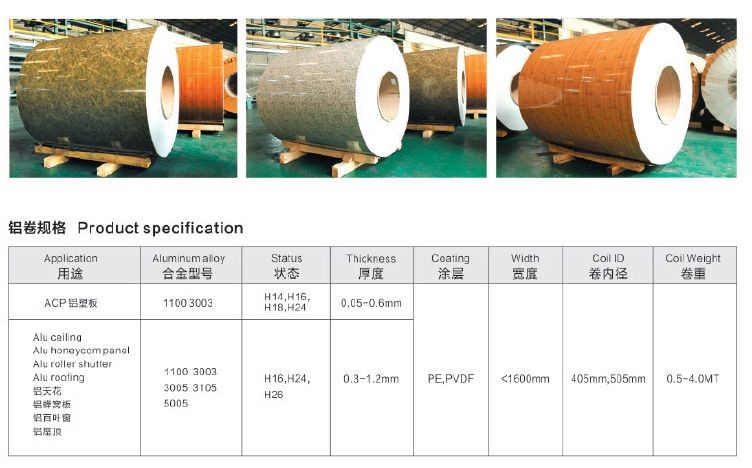

1. Specification for coated aluminum coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.04-1.20mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil ID: 405mm,505mm, Coil OD: 1000-1400mm
05) Coil standard weight: 2500kgs/coil
06) Coating: PE or PVDF coating
07) Surface treatment: anti-scratch, glossy, matte
08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.
09) Dried and baked: oven baked at 450 degree F
10) Coating thickness: double coating-25 micron, single coating-18 micron
11) Coating hardness: (pencil hardness) 2H
12) Coating adhesive: no lower than first grade
13) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
14)Flexibility(T-bend):2T or by your option
15) MEK resistance: more than 100
16)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.
2. Applications
Interior applications: ACP skin, door skin, wall cladding, ceilings, kitchen cabinet, balconies, shutters...
Exterior applications: roller shutters, gutters, wall cladding, facades, roofing, canopies, tunnels, column covers , renovations...
Advertisement and market applications: display platforms, signboards, fascia, shop fronts...
Zhaoqing DingFeng Building Materials is the most professional coated aluminum coil suppliers in China, with wide range of wooden grain and marble stone patterns for choice.
