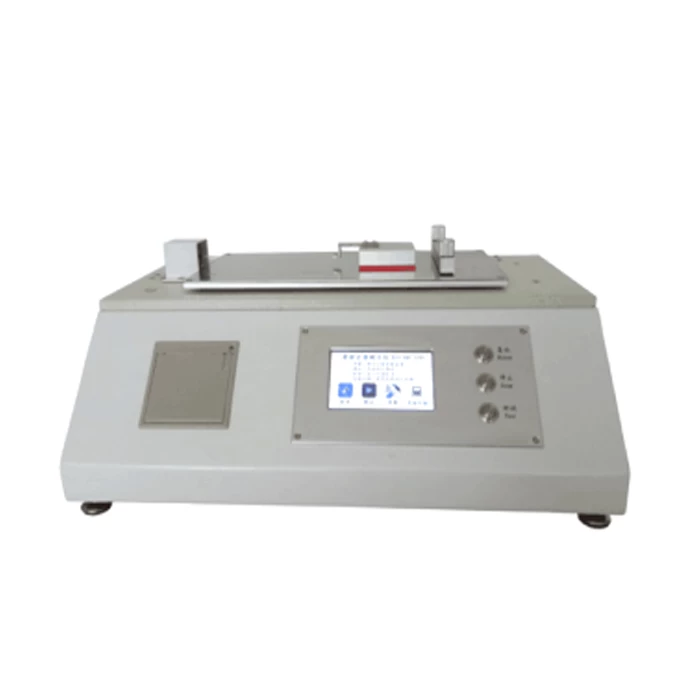

Coefficient of Friction COF Tester GT-CN11
Product Introduction
Application:
Friction Coefficient Tester can be used to determine the static friction coefficient and dynamic friction coefficient of plastic film and sheet (or other similar materials).
The supporting control software can intuitively understand the smoothness and opening of the film, and show the distribution of the smoothing agent through the curve.
By measuring the smoothness of the material, it is possible to control the opening quality of the packaging bag, the packaging machine's packaging speed, and other production quality process indicators to meet the product requirements.
|
Feature
- Full digital automatic system, liquid crystal display. The test process traces the friction and the test results show the dynamic and static friction coefficients.
- It can connect to a computer. When connected to a computer, in addition to automatically memorizing the results, changes in the friction curve can also be displayed and saved.
- The use of high-precision force sensor, the measurement accuracy of 1 level.
- Specially designed drive system, smooth movement and more accurate test results.
Key Specifications
Model
|
GT-CN11
|
Sample Thickness
|
≤0.2mm
|
Slider Size (L×W)
|
63×63mm
|
Slider Quality
|
200±2g
|
Test Bench Size
|
170×336mm
|
Test Accuracy
|
±2%
|
Slider Speed
|
100±10mm/min
|
Slide Stroke
|
0-150mm( can be adjust)
|
Force Range
|
0-5N
|
Dimensions
|
500×335×220mm
|
Power Supply
|
AC220V 50Hz
|
Standards
|
GB10006, ASTM D1894, ISO 8295
|
