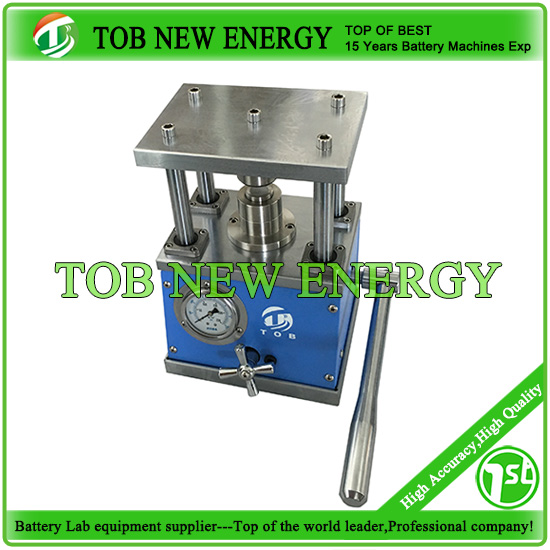

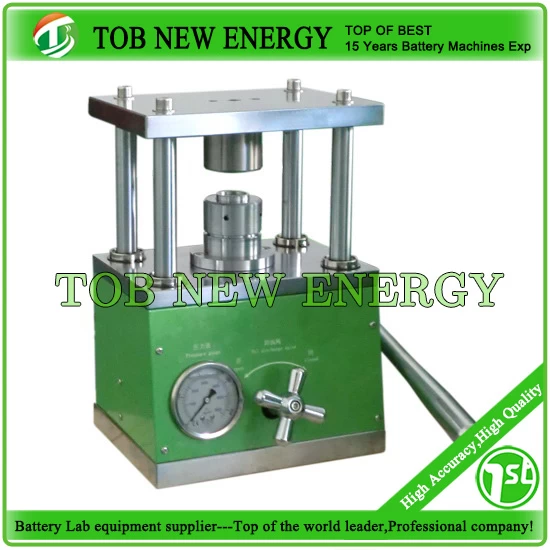

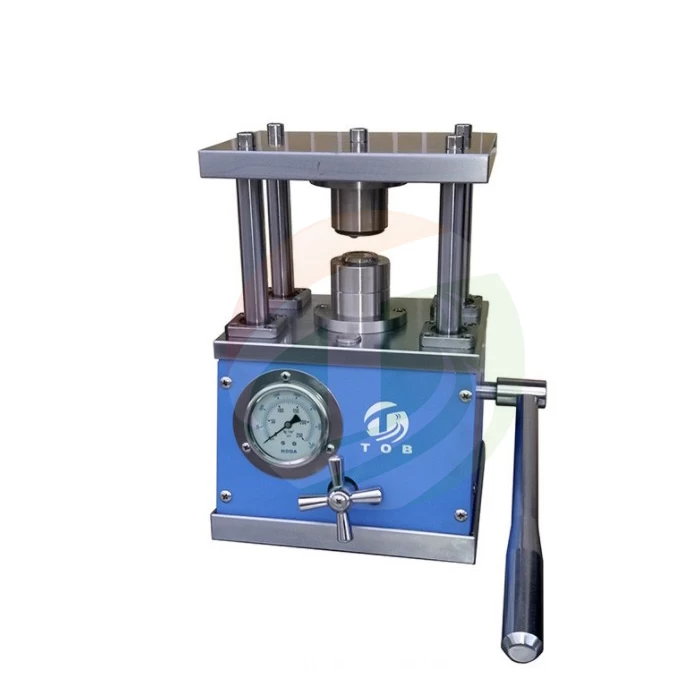

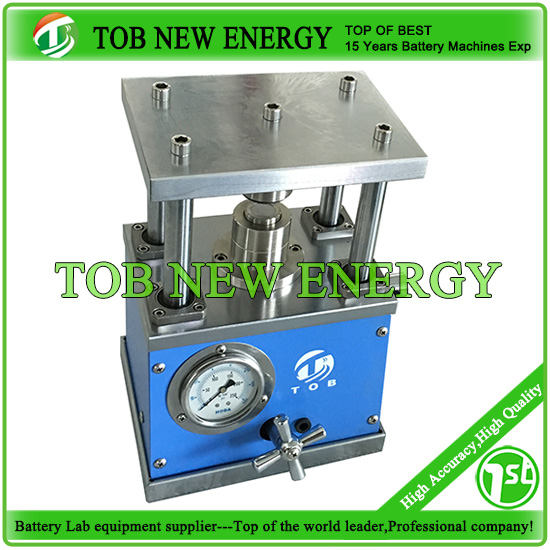

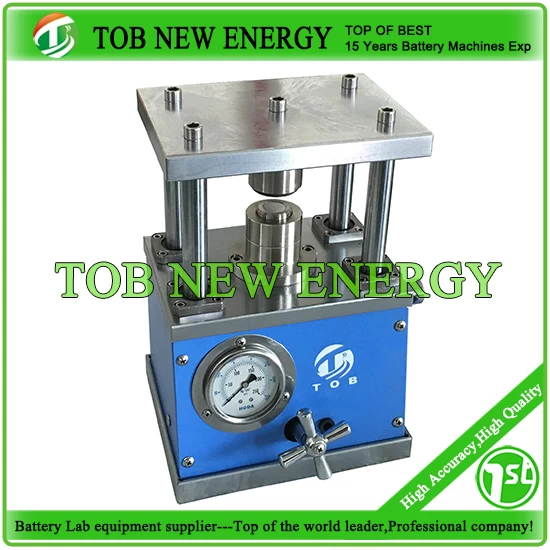

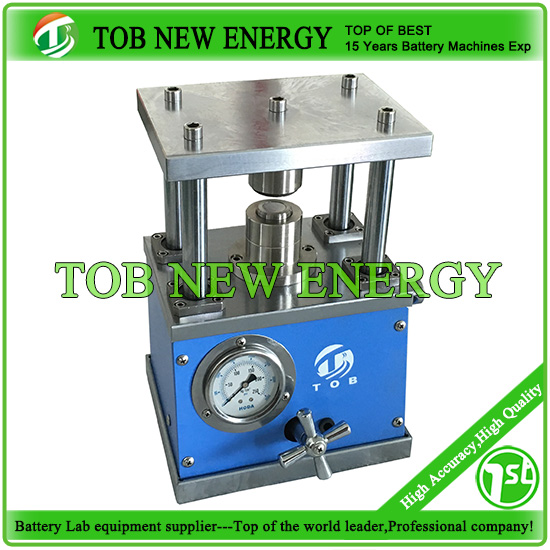

Compact Hydraulic Coin Cell Crimper Machine: One for All Button Cells of CR2016, CR2025, & CR2032 (Optional Die CR1220, CR2325 or CR2450，AG3, AG5)
SPECIFICATIONS
1 TOB-MR-120 coin cell crimper is a newly designed coin-cell sealing machine with lighter weight. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with adjust the sealing line and without changing the die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.
2 In addition, customers can easily replace the original die for disassembling purpose.
3 It can also be worked in glove box with smaller volume.
|
Machine model
|
Hydraulic Crimping Machine TOB-MR-120
|
|
Standard Crimping Die
|
1 One set of crimping die for CR2032,CR2025,and CR2016
2 Optional die available from product option for crimping
CR2325,CR2450,AG3,AG5
3 PTFE Anti-Corrosion Core prevents coin cells from being short circuited
|
|
Advantages
|
1 The lower die with high precision positioning ring spcing, control the battery packge height
2 The upper die is provided with a seling cup inner screw spring mechanism,
ensure in case the battery sealing clamp can not be removed,only the top screw clockeise and the button battery out.
3 By using aluminum alloy and high strength steel,
surface after the environmental protection electroplating processing will never rust
|
|
Rocker Pressure
|
<6kg
|
|
Max Pressure
|
200kg/cm2
(The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
|
|
Working Pressure
|
80-100kg/cm2
|
|
Dimension(L*W*H)
|
232*170*330mm
|
|
Weight
|
28kg
|
|
Shipping Weight
|
35kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Reference Pictures
|

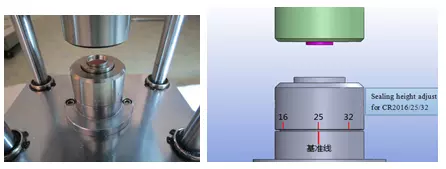

1. Adjusted sealing die for CR2016,2015,2032 coin cell

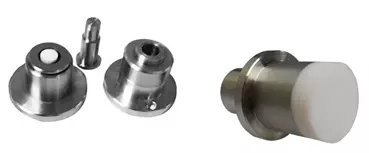

2. Optional die for other model battery and PTFE Anti-Corrosion Core
|
