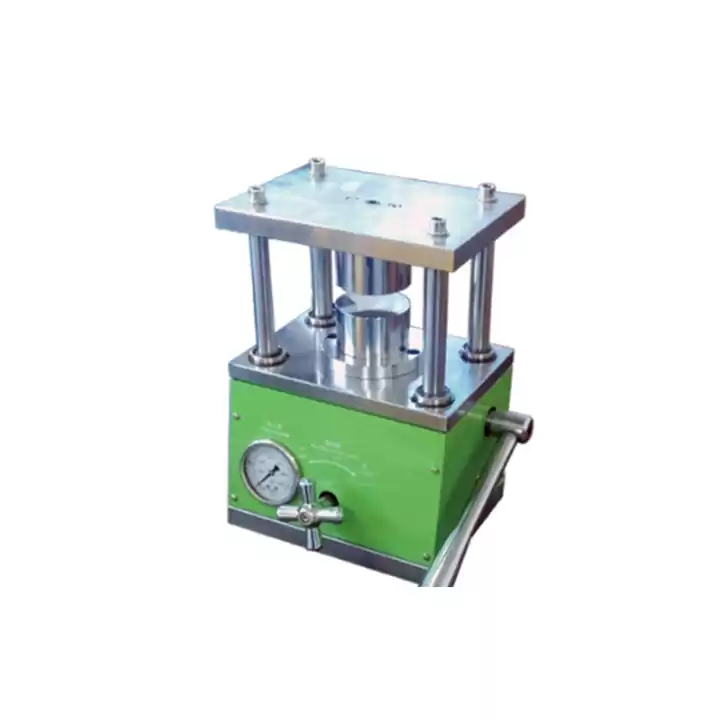

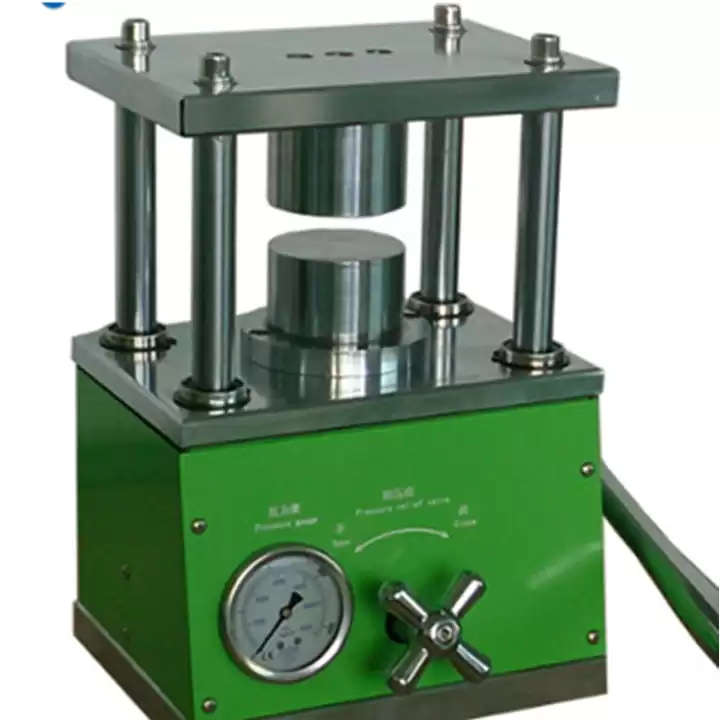

Coin Cell Manual Hydraulic Press Machine For Battery Electrode
TMAX-YP180 Manual Coin Press is a CE Certified desktop dry pressing machine up to 8 metric tons for materials /
chemistry research laboratories to prepare the compound ceramic sample. It has built in hydraulic pump with auto return function.
|
Max. Pressure
|
8 metric tons Max.
Pressure gauge is built in
|
|
Gauge Pressure Value
to Force Conversion
|
-
Notes:
-
Displayed Pressure Value to Actual Applied Force
-
Conversion: 1 MPa = 0.6 Ton
-
The actual force applied on the Hydraulic Cylinder (Ton) equal
-
to the force applied on your working piece
-
For calculating the actual pressure (MPa) applied on your working piece,
-
please follow the equations in below:
P = T/(πr^2) x g x 10
-
P: Pressure (MPa) applied on your working piece
-
T: Force (Ton) applied on the Hydraulic Cylinder
-
g: Standard gravity. g ≈ 9.8 m/s2
-
π: ~3.14
-
r: Radius (cm) of the working piece
-
*1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
|
|
Pump
|
Build-in Hydraulic Pump
|
|
Warranty
|
Two year limited manufacturer warranty with lifetime support.
|
|
Bottom Hydraulic Cylinder Travel Distance
|
Standard 30mm, opitional other distance
|
|
Dimensions of Machine
|
230mm X 200mm X 330mm
|
|
Compliance
|
CE Certified
|
|
Net Weight
|
30 kg
|
|
Press Dies
|
Pressing dies with various diameters are available upon request
|
