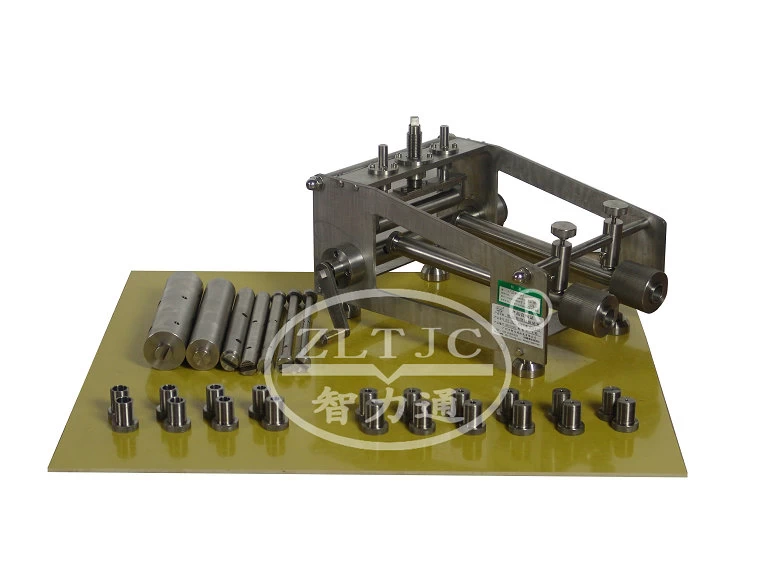

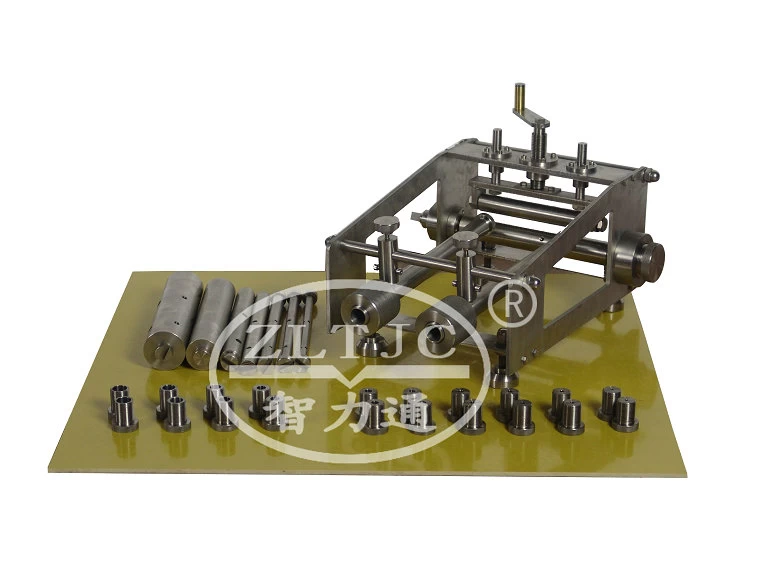

Cold Bend Test Apparatus
Product details: Model ZLT-SDJ1.

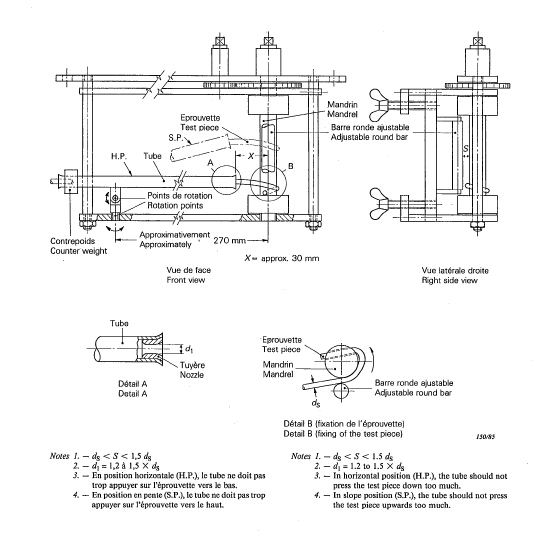

To determine the bending stability at low temperature of insulated cords and cables up to 12,5mm diameter in cold test chambers or freezers with mandrels to 50mm diameter, according to IEC60811-1-4 clause 8.1 figure 1.
Standard outfit:
1 rigid horizontal structure
1 driving shaft, with bush to take up the mandrel, with journal for the actuating shaft,
1 transmission shaft,
1 sets of metal tubes, outlet diameter of 3-4-5-6-7-8-9-10-12-14-16 mm, for diameter of specimen 2,5~12,5 mm,
1 sets of metal tubes, diameter of 3-4-5-6-7-8-9-10-12-14-16 mm,
All stainless steel.
