Cold rolled corrugated metal steel sheet for building’s roof

914 metal steel sheet is a new type of plate, also known as B-36 roof slab. It can be used as floor bearing plate, roof slab or ceiling lining plate.


  • Red 21Y
  • Red 20Y
  • Red 19Y
  • Red 16Y
  • Red 15Y
  • Red 14Y
  • Red 13Y
  • Red 12Y
  • Red 11Y
  • Red 10Y
  • Red 09Y
  • Red 08Y
  • Red 07Y
  • Red 06Y
  • Red 05Y
  • Red 04Y
  • Red 03Y
  • Red 02Y
  • Red 01Y

Cold rolled corrugated metal steel sheet for building’s roof

The roof sheets of this model is a structural roof panel product with a plate width of 914mm. It is rolled from galvanized steel plates or color coated steel plates. The roof bottom plate can be used as the horizontal roof panel of large venues. It is magnificent, beautiful and practical.It can be used as the bottom lining plate of inverted roof, with high bearing capacity and saving the number of purlins. It forms a complete roof system together with hard thermal insulation materials and flexible waterproof coiled materials.

Product Specification

Rib height

38mm

Rib distance

152mm

Modular width

914mm

Feeding width

1250mm

Available Thickness

0.3mm-1.2mm

Length

20FT/40FT

Material

PPGI/PPGL/Al-Mg-Mn alloy metal sheets

Surface Treatment

Original pre-coating

MOQ

500m2 per color&size

Delivery time

10--20days

Features

1. Lightweight

2. Easy to install

3. Waterproof and long service life

4. Environmental protection materials

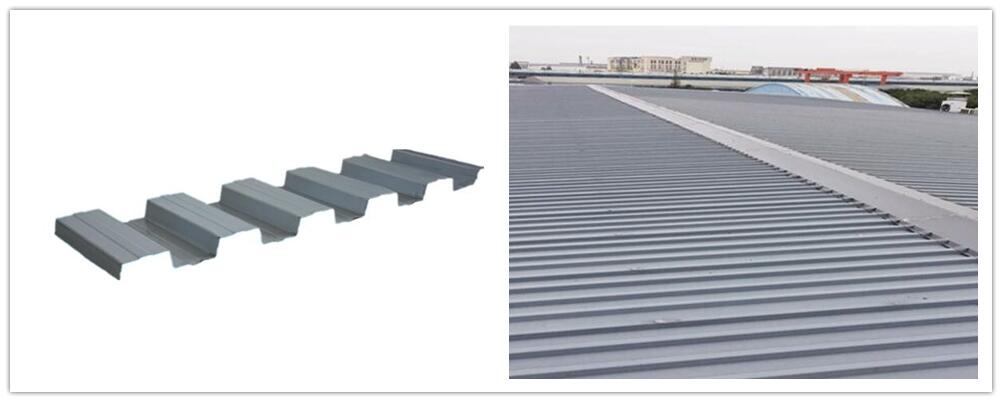

Product display

Cold rolled corrugated metal steel sheet for building’s roof

Packing & Delivery

Packing:

Seaworthy packing standards:

Premium packing:

Packed with steel box,in order to protect the panels in good status before installation.

Delivery:

Delivery time for regular colors,coating types and thickness:7-10 days;

Delivery time for special colors,coating types and thickness:15-25 days;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Installation guide

If you have any questions about the installation of this product, please contact us and we will send you a detailed installation instruction.We can also tell you how to easily solve the installation problem in the email : syinhuan@chinayinhuan.com
