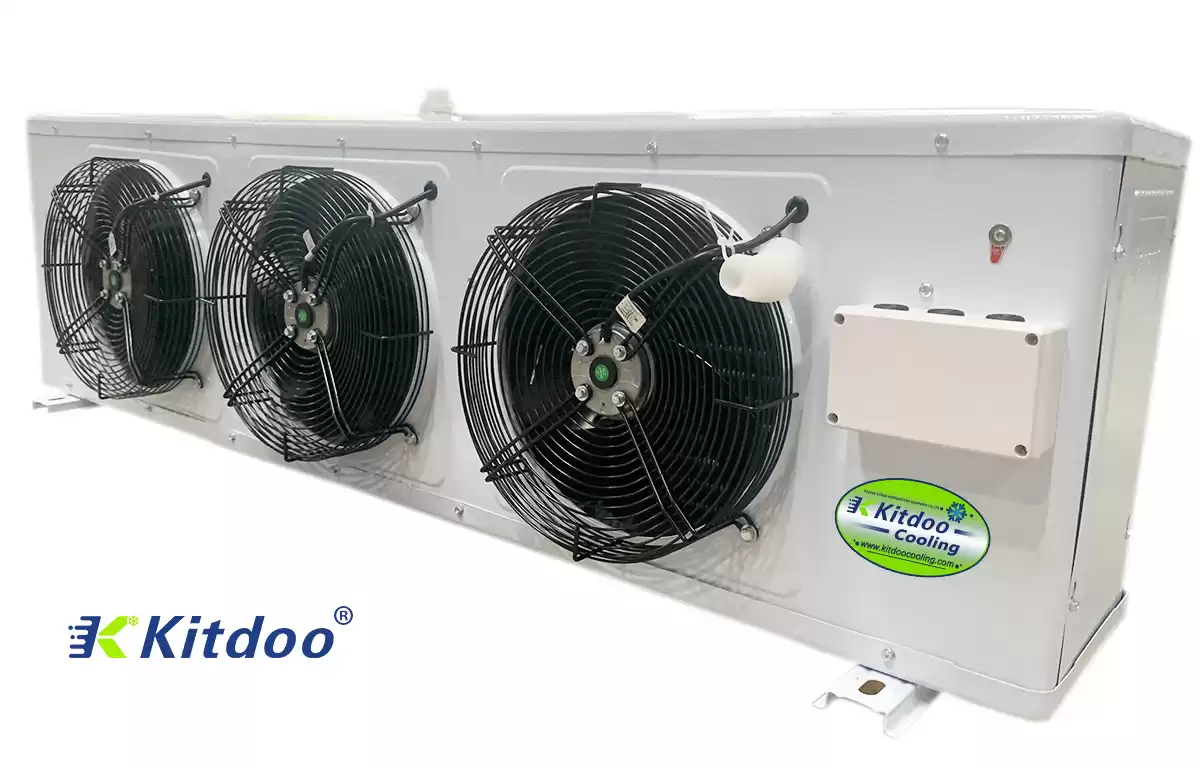

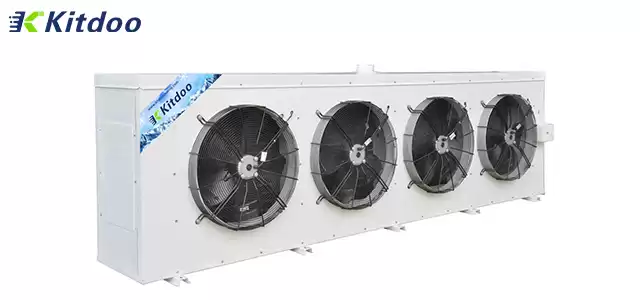

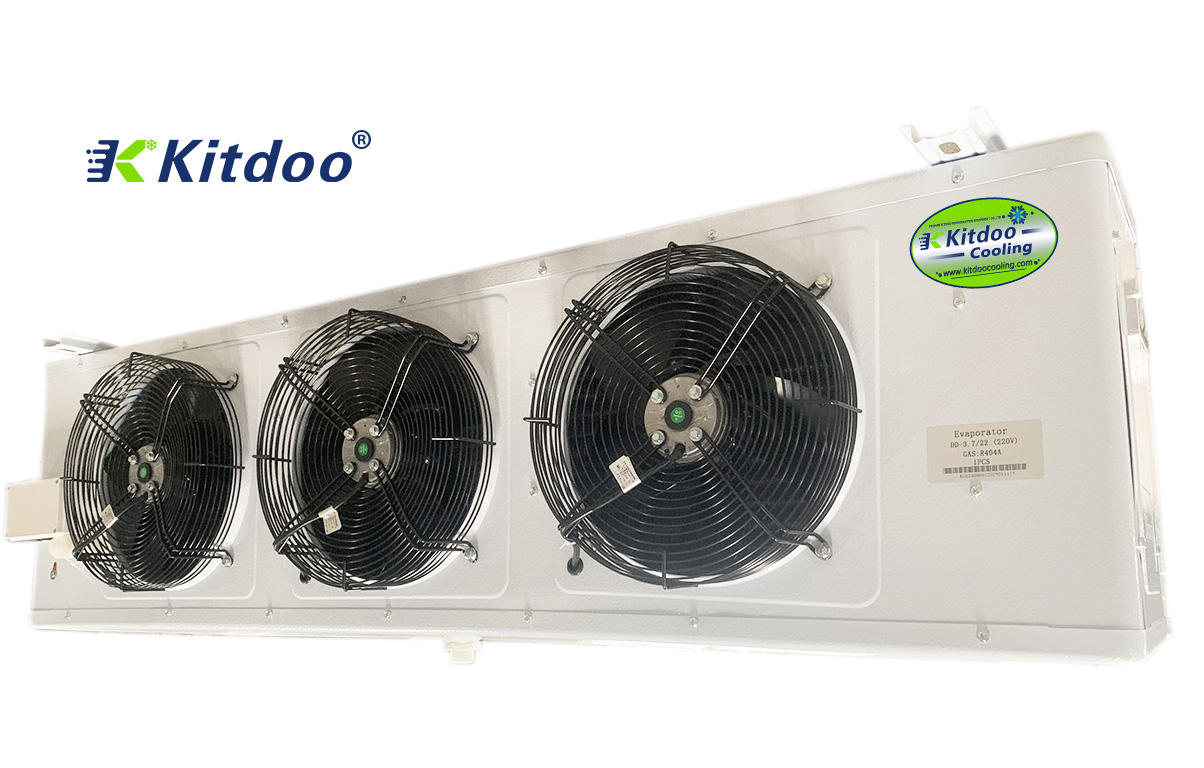

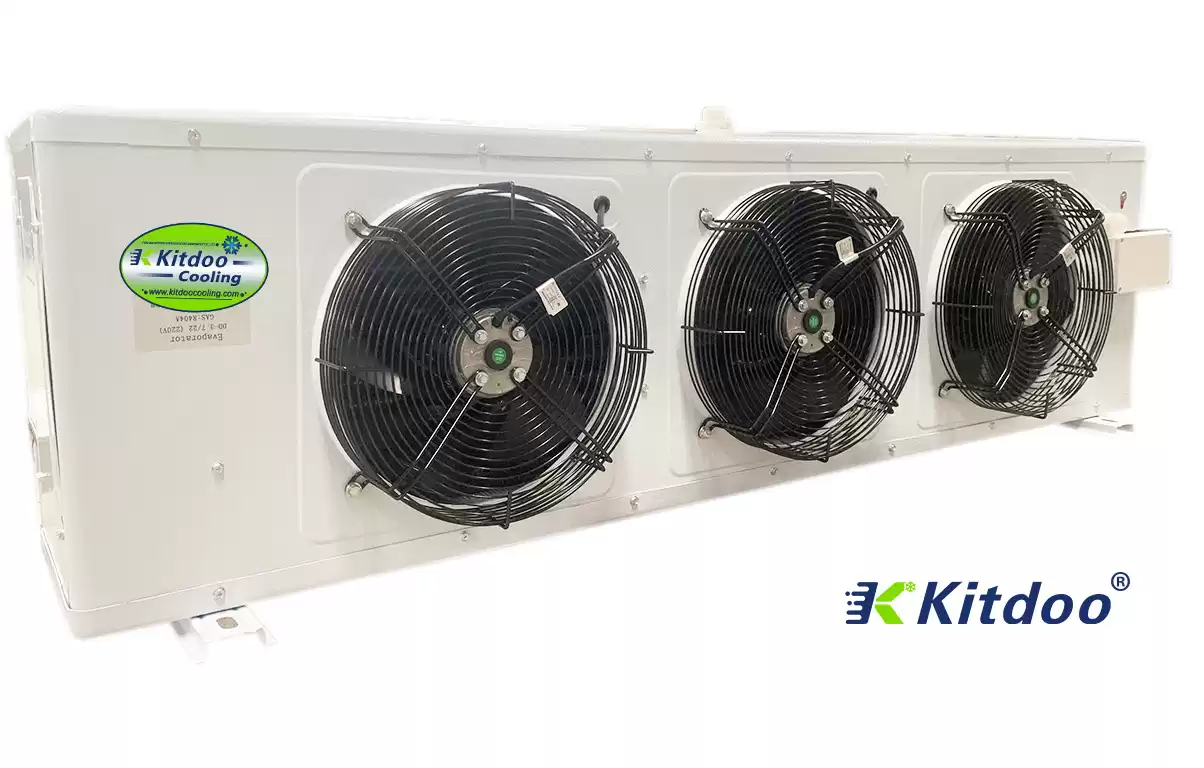

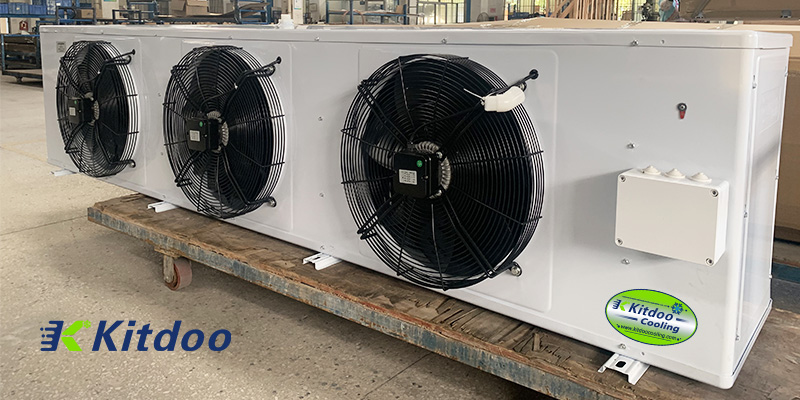

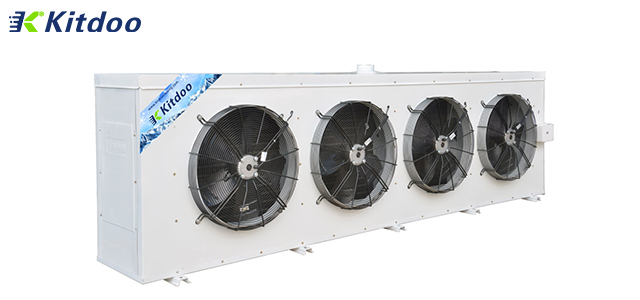

cold room units and cooling unit for cold storage
DD series air freezer cooler are for Medium temperature from -2 to -18 degree, fin space is 6mm.
Model D Series cold room cooling unit/cooling unit for cold storage is a type of cooling equipment applied to vrious of refrigeratories like cooling unit for cold storage, storing and freshing food. Model D series have the three types: DL, DD, DJ, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model DD applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.

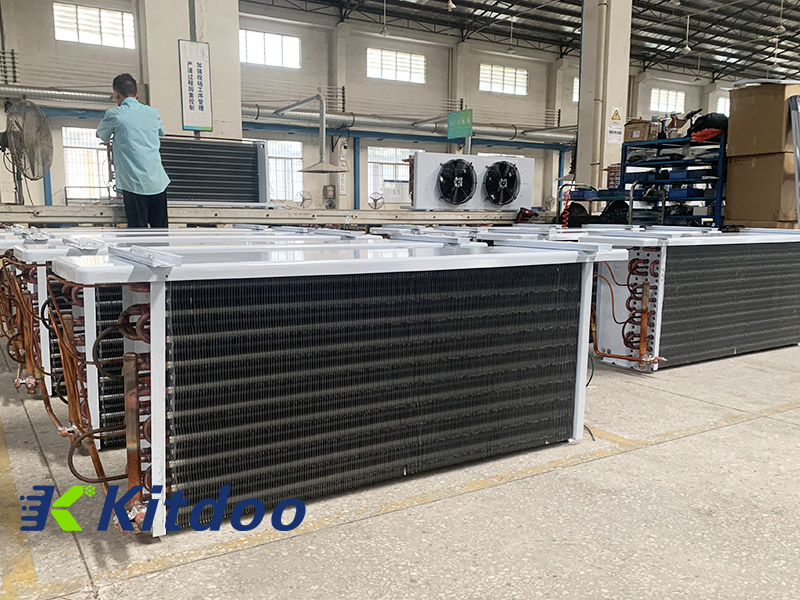

The shell of cold room cooling is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold room cooling unit has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.

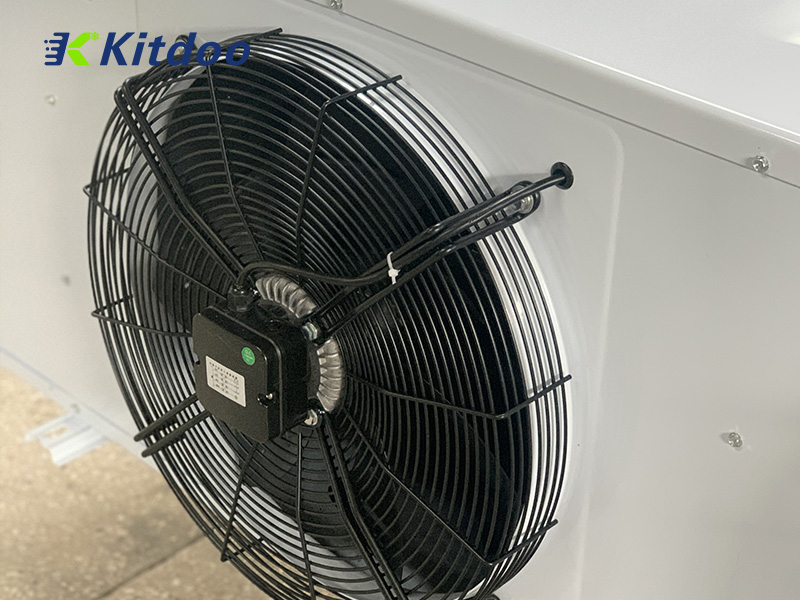

After the evaporator cold room is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The air freezer cooler uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The air freezer cooler should be able to Install explosion-proof motors according to different needs.
KITDOO refrigeration equipment company provides customers with professional one-stop cold chain services.
1.Commercial Medium temperature cold room units.
2.There are enough space between fans and coils.
3.Exquisite and compact shape design to maximize cold room space utilization
|
Model
|
Capacity
(W)
|
Cooling surface
(m2)
|
Fin Space
(mm)
|
Fan
|
HeaterVoltage
(v)
|
|
Qty
|
Size
(mm)
|
Air flow
(m3/h)
|
Voltage
(v)
|
|
DD-1.3/7
|
1300
|
7
|
6
|
1
|
300
|
1700
|
380
|
220
|
|
DD-2.2/12
|
2200
|
12
|
6
|
2
|
300
|
3400
|
380
|
220
|
|
DD-2.8/15
|
2800
|
15
|
6
|
2
|
300
|
3400
|
380
|
220
|
|
DD-3.7/22
|
3700
|
22
|
6
|
3
|
300
|
5100
|
380
|
220
|
|
DD-5.6/30
|
5600
|
30
|
6
|
2
|
400
|
8000
|
380
|
220
|
|
DD-7.5/40
|
7500
|
40
|
6
|
2
|
400
|
8000
|
380
|
220
|
|
DD-11.2/60
|
11200
|
60
|
6
|
2
|
500
|
12000
|
380
|
220
|
|
DD-14.9/80
|
14900
|
80
|
6
|
2
|
500
|
12000
|
380
|
220
|
|
DD-18.7/100
|
18700
|
100
|
6
|
3
|
500
|
18000
|
380
|
220
|
|
DD-22.4/120
|
22400
|
120
|
6
|
3
|
500
|
18000
|
380
|
220
|
|
DD-26.4/140
|
26400
|
140
|
6
|
3
|
500
|
18000
|
380
|
220
|
|
DD-30.0/160
|
30000
|
160
|
6
|
4
|
500
|
24000
|
380
|
220
|
|
DD-35.0/180
|
35000
|
180
|
6
|
4
|
500
|
24000
|
380
|
220
|
|
DD-37.0/200
|
37000
|
200
|
6
|
4
|
500
|
24000
|
380
|
220
|
|
DD-40.0/220
|
40000
|
220
|
6
|
4
|
500
|
24000
|
380
|
220
|
|
DD-46.0/250
|
46000
|
250
|
6
|
4
|
500
|
24000
|
380
|
220
|
|
DD-50.0/275
|
50000
|
275
|
6
|
4
|
600
|
44000
|
380
|
220
|
|
DD-57.0/310
|
57000
|
310
|
6
|
5
|
600
|
44000
|
380
|
220
|
|
DD-67.0/360
|
67000
|
360
|
6
|
5
|
630
|
45000
|
380
|
220
|
|
DD-81.0/440
|
81000
|
440
|
6
|
5
|
630
|
45000
|
380
|
220
|
