1. Specification for coated aluminum coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.018-1.20mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil ID: 405mm,505mm, Coil OD: 1000-1400mm
05) Coil standard weight: 2500kgs/coil
06) Coating: PE or PVDF coating
07) Surface treatment: anti-scratch, glossy, matte

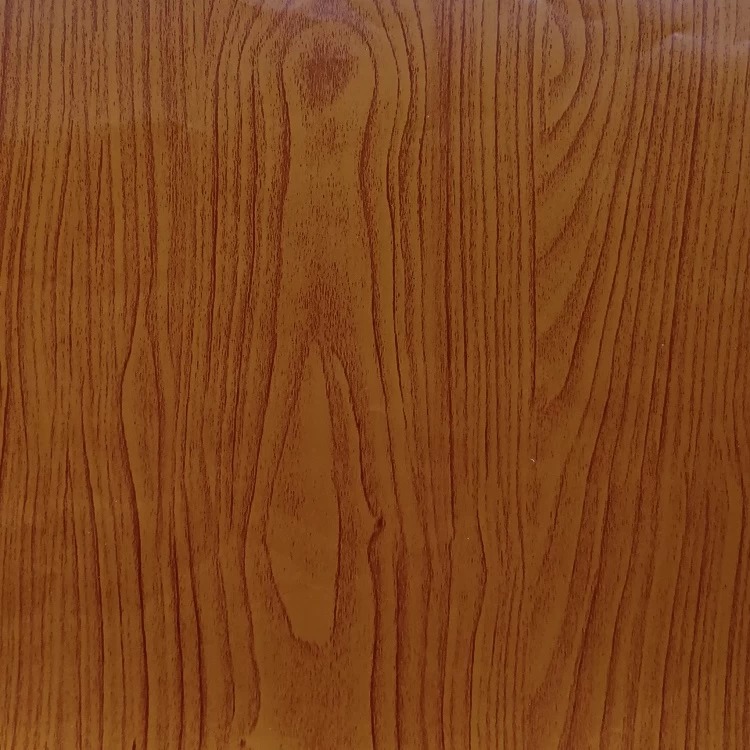

08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.
09) Dried and baked: oven baked at 450 degree F
10) Coating thickness: double coating-25 micron, single coating-18 micron
11) Coating hardness: (pencil hardness) 2H
12) Coating adhesive: no lower than first grade
13) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
14)Flexibility(T-bend):2T or by your option
15) MEK resistance: more than 100
16)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.
2. Applications
Interior applications: ACP skin, door skin, wall cladding, ceilings, kitchen cabinet, balconies, shutters...
Exterior applications: roller shutters, gutters, wall cladding, facades, roofing, canopies, tunnels, column covers , renovations...
Advertisement and market applications: display platforms, signboards, fascia, shop fronts...
|
Coating Characteristic table
|
|
|
Item
|
Test Item
|
Standard
|
National standard
|
DF Test Result
|
|
1
|
Color Difference
|
ECCA T3
|
Δ E≤ 2.0
|
Δ E≤ 1.5
|
|
2
|
Gloss Difference
|
ECCA T2
|
≤ 10
|
≤ 5
|
|
3
|
Coating Thickness
|
ECCA T1
|
Two layers Min 23um
|
≥ 24um
|
|
4
|
Pencil Hardness
|
ASTM D3363
|
≥ HB
|
HB
|
|
5
|
T-bend
|
ASTM D4145
|
≤ 2T
|
≤ 2T
|
|
6
|
Adhesion
|
ASTM D3359
|
Grade 0
|
Grade 0
|
|
7
|
Impact
|
ASTM D2794
|
≥ 50 kg/cm
|
≥ 50 kg/cm
|
|
8
|
Boiling water Resistance
|
GB/T17748
|
2h No Change
|
4h No Change
|
|
9
|
Solvent Resistance
|
ASTM D2248
|
200 times paints remaining
|
500 times no break
|
|
10
|
Acidity Resistance
|
ASTM D1308
|
5%HCL 24hrs no change
|
No change
|
|
11
|
Alkali Resistance
|
ASTM D1308
|
5%NaOH 24hrs no change color Δ E≤ 2.0
|
No change
|
|
12
|
Nitric acid Resistance
|
AAMA620
|
Δ E≤ 5.0
|
Δ E≤ 5.0
|
|
13
|
Oil Resistance
|
ASTM D1308
|
20# oil 24hrs no change
|
No change
|
|
14
|
Salt Spray Resistance
|
ASTM B117
|
4000hrs≤ Grade 1
|
No change
|
|
15
|
Abrasion resistance
|
ASTM D968
|
≥ 5L/um
|
≥ 5L/um
|
|
16
|
Dirt Resistance
|
GB/T9780
|
≤ 5%
|
< 5%
|
|
17
|
Color retaining
|
GB/T16259
|
4000 hrsΔ E≤ 4.0
|
4000 hrsΔ E≤ 3.0
|
|
18
|
Gloss weaken Level
|
GB/T16259
|
4000 hrs ≤ Grade 2
|
4000 hrs ≤ Grade 2
|
