Colored NEMA fr4 g10 fiberglass sheet supplier
Type:Insulation Sheet
Material:Fiberglass
Application:High Voltage
Rated Voltage:40KV
Tensile Strength:≤3mm:8‰ the length of the diagonal;≥3mm:5mm
Thickness:0.1-100mm
Standard size:40" x 48" (1030mm x 1230mm)
Size:Can be customized

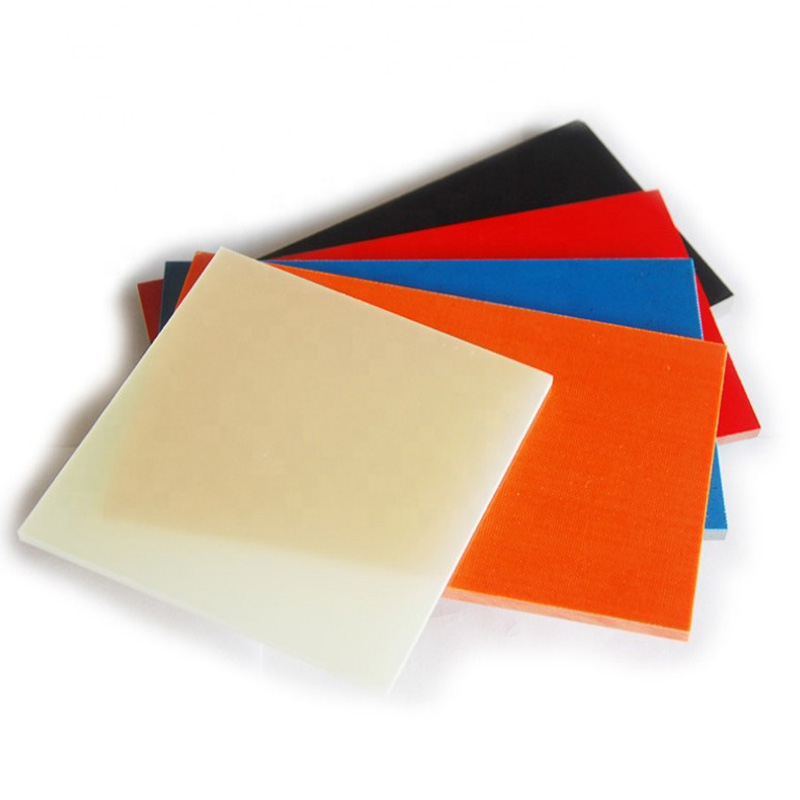

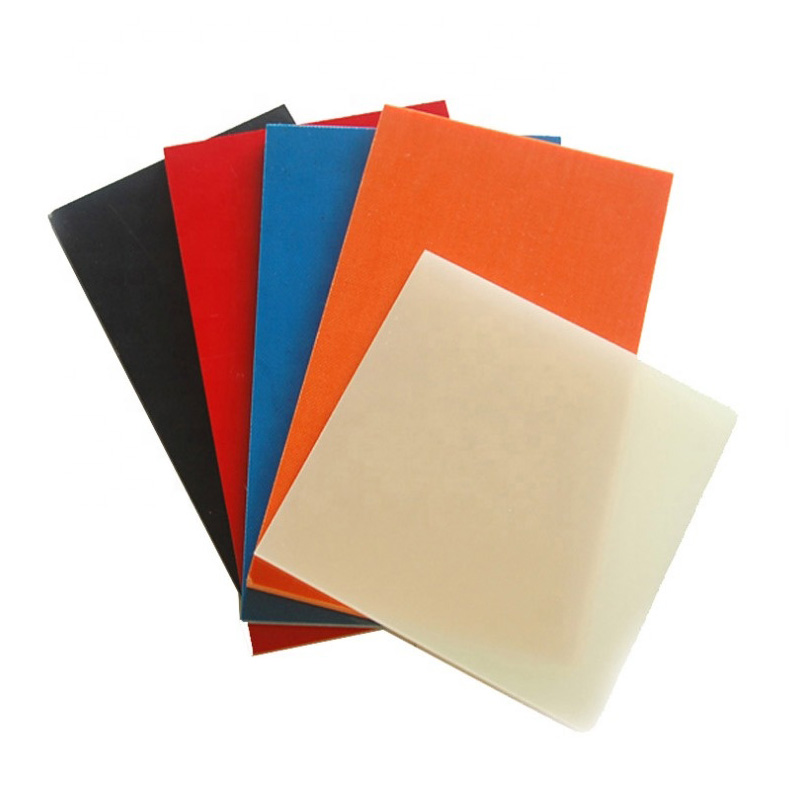

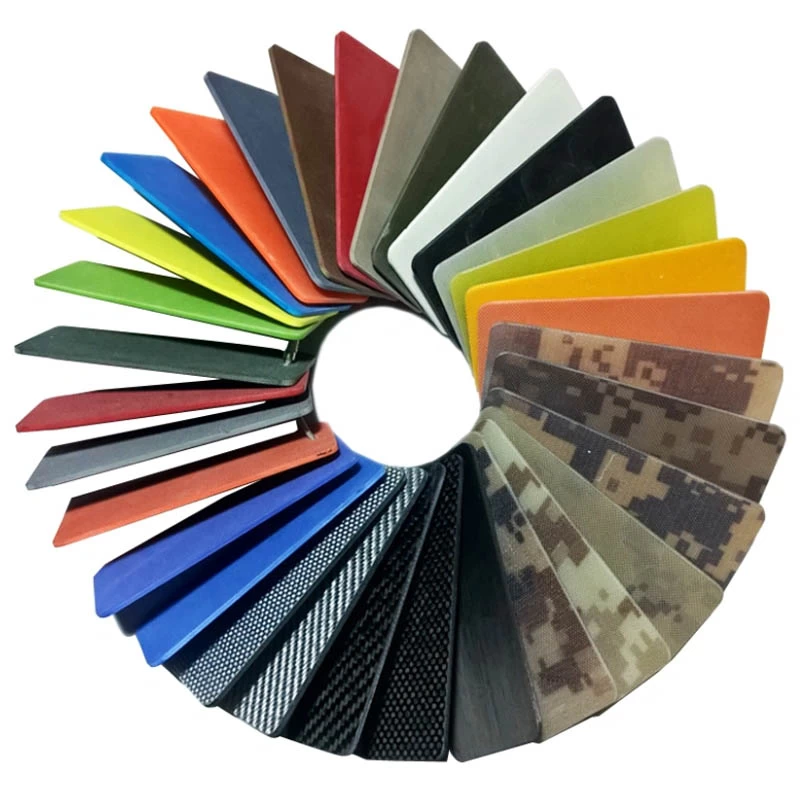

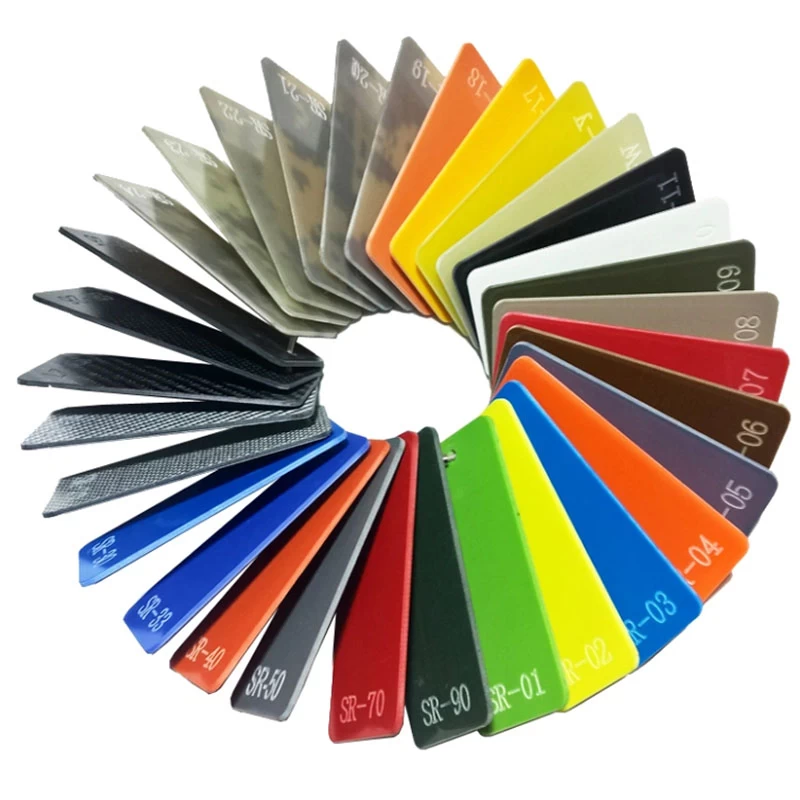

Color:Black, light green, yellow etc.
Name:Glass epoxy sheet/ unclad laminate fr4 /g10 material
- Delivery time(Prototype)
- Monthly capacity
- Minimum Tolerance
- Max.part size
- Spindle speed
- Surface Treatment
- Inspector reporter
G10 FR4 Epoxy sheet is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder.It has characteristics of high strength, excellent electrical properties and chemical resistance.These properties are maintained not only at room temperature but also under humid or moist conditions.so it is the common choice used for insulation material.


Product characteristics of the epoxy sheet:
Application:
Mainly applied in electronic and electric industry, applied very widely, requirements for high performance electrical insulation parts, such as FPC Stiffener, PCB drilling plate, glass meson, carbon film printing glass fiberboard potentiometer, precision planetary gears(grinding chips), precision test plates, electrical equipment insulation stays partitions, insulation pads, transformer boards, electrical insulation parts, grinding gears, electronic switch insulation boards.
We are confidents to provide with CUSTOMIZED high quality Epoxy glass fiber Fr4/g10 products by our professional manufacturing team, manufacturing lines and experienced CNC router operators who have been engaged in this industry for more than 10 years.


Product characteristics of the epoxy sheet:
- Fire Resistance: UL94 V-0.
- Good flatness, smooth surface, no pits, standard thickness tolerances.
- Low water absorption, has good moisture resistance and good dielectric properties .
- Stable electrical insulating properties, good electrical performance in dry or wet conditions.
- High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.
- Good mechanical workability.
- In high temperature electric performance is stable.
- High mechanical properties and dielectric properties.
Application:
Mainly applied in electronic and electric industry, applied very widely, requirements for high performance electrical insulation parts, such as FPC Stiffener, PCB drilling plate, glass meson, carbon film printing glass fiberboard potentiometer, precision planetary gears(grinding chips), precision test plates, electrical equipment insulation stays partitions, insulation pads, transformer boards, electrical insulation parts, grinding gears, electronic switch insulation boards.
We are confidents to provide with CUSTOMIZED high quality Epoxy glass fiber Fr4/g10 products by our professional manufacturing team, manufacturing lines and experienced CNC router operators who have been engaged in this industry for more than 10 years.

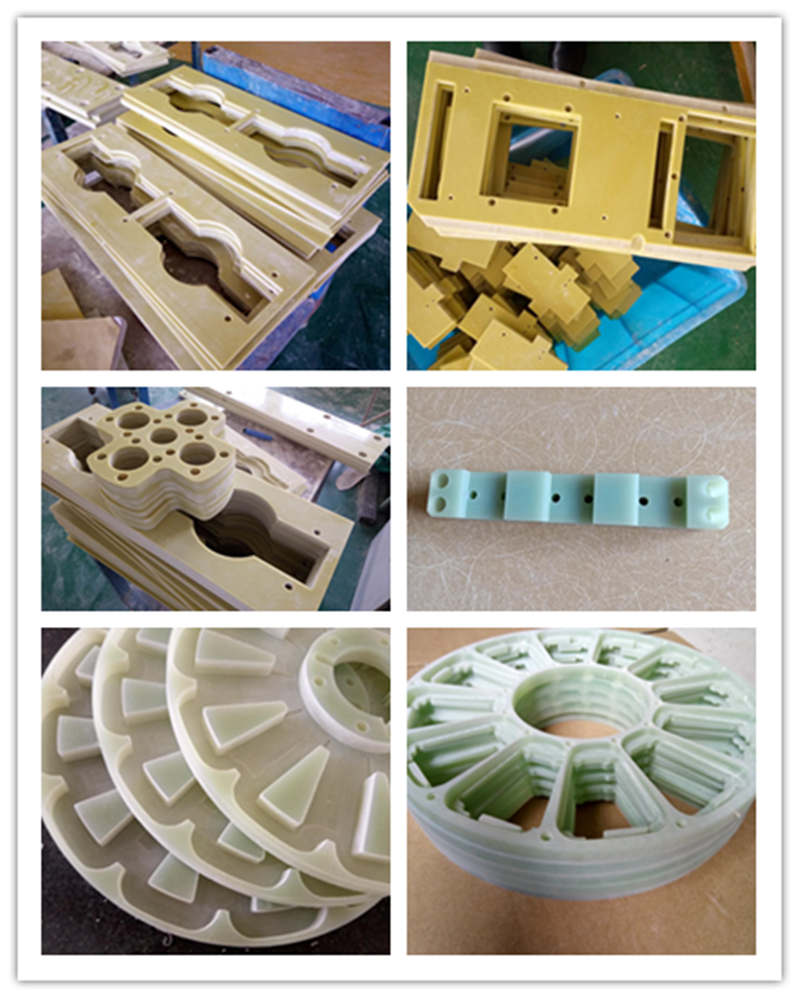

Machined FR4/G10 Parts:
