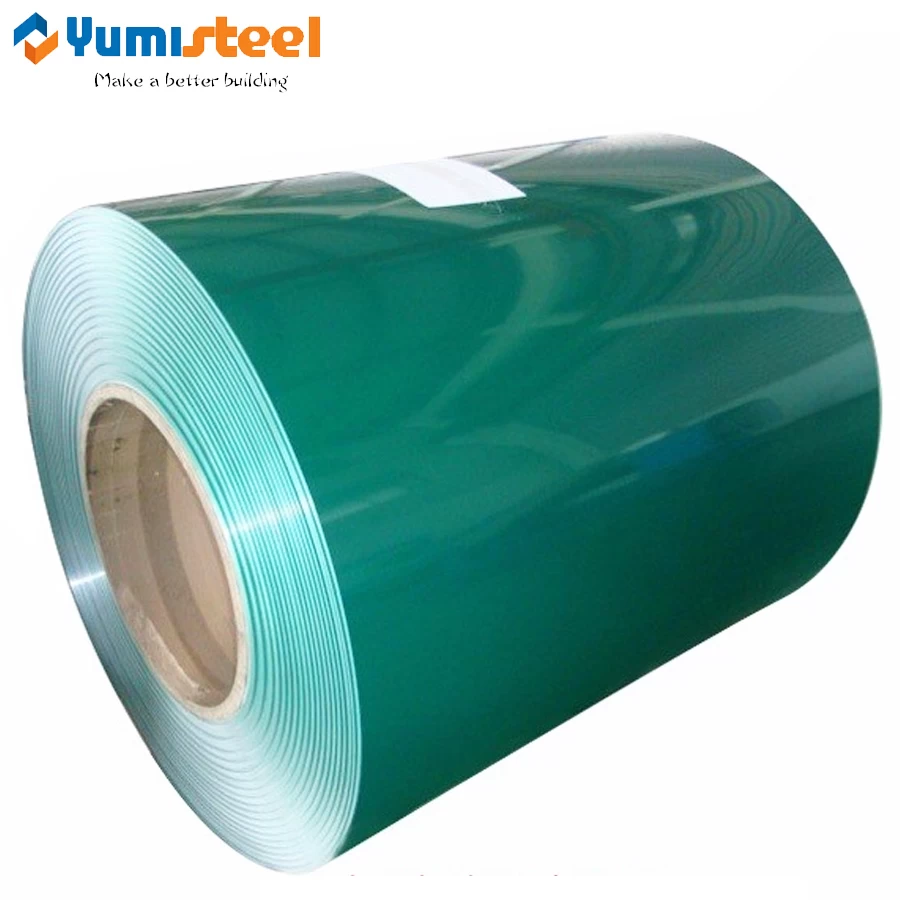

What's PPGI steel coils?
PPGI is short for pre-painted galvanized steel coils,which is also known as color coated galvanized steel coils. The total thickness of color steel coils is including
base steel sheet, primer coating, top coating and protective layer.The back painting is usually in white grey color.Colors can be customized,customer can offer color reference or offer us RAL color number.We can also offer special patterns, such as wood grain, flower print, camouflage, brick,etc. Pre-painted galvanized steel coil is widely used in home appliance industry, building materials industry, agriculture, and so on.
Color galvanized steel coils specification
|
Product name
|
PPGI coils
|
|
Base sheet
|
Galvanized( Zinc coating )
|
|
Thickness range
|
0.20 - 1.00 mm
|
|
Width range
|
900 - 1250 mm
|
|
Coil weight
|
3 MT - 10 MT
|
|
Mass of coating
|
40 g/m² - 275 g/m²
|
|
Painting standard
|
Primers: Epoxy, PU
|
|
Top Coating: Polyester (PE),Silicon Modified Polyester (SMP),High-durability Polyester coating(HDP)Poly Vinyl Di Flouride (PVDF)
|
|
Back Coating: Epoxy, Polyester, PU
|
|
Top Coating
|
15 μm - 30 μm
|
|
Back Coating
|
7-10 μm
|
|
Colors
|
As Per RAL Chart/Customer requirements.
|
|
Packing
|
Seaworthy Packaging
|

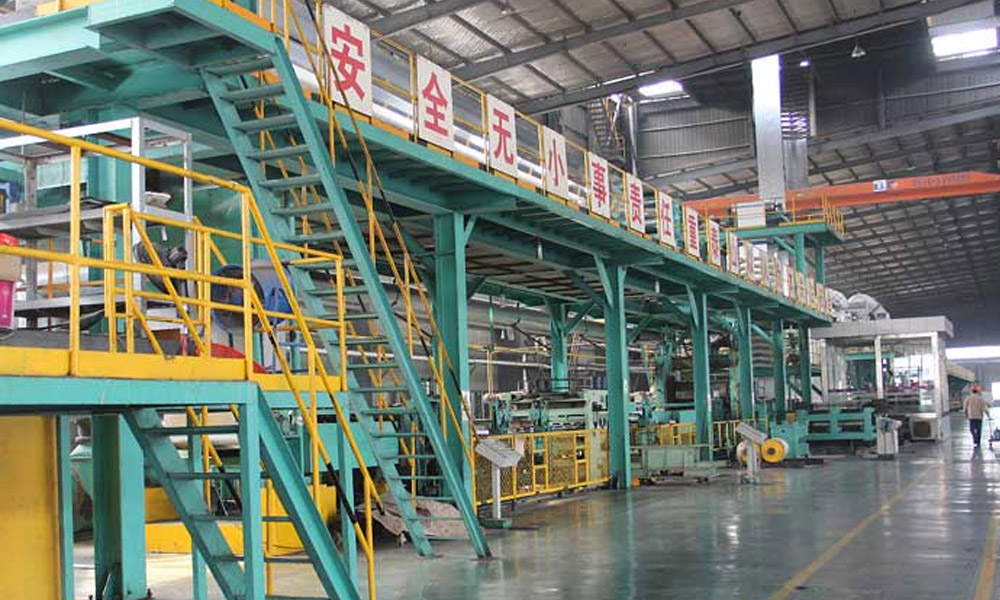

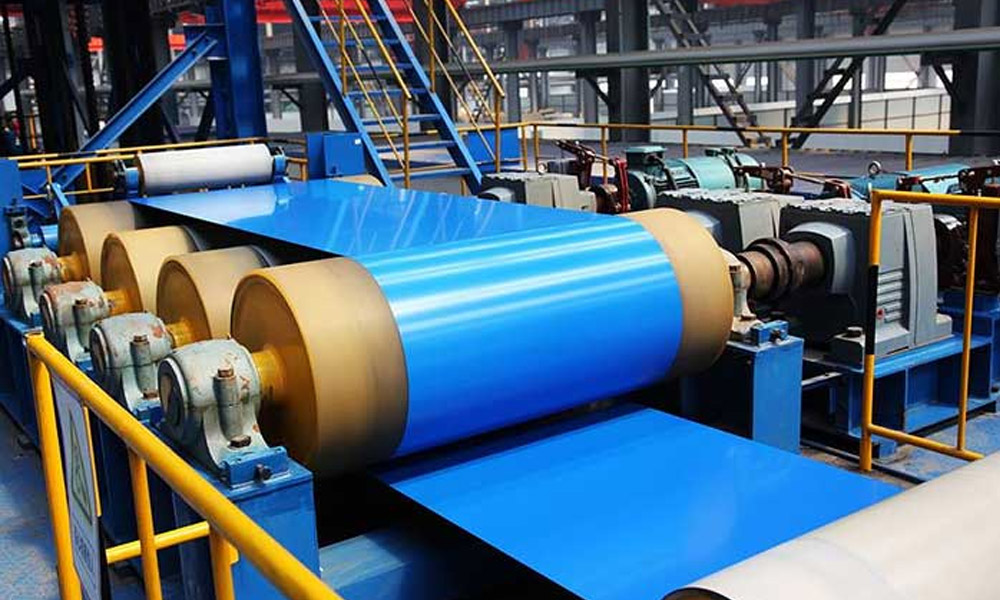

Our pre-painted steel coils equipment
There are two color coated steel coils production lines in our factory. We never modulate paint by ourselves and and buy paint from Nippon paint,Kcc or Wuxi Wanbo. They are all top brands in this industry. With professional and responsible attitude,we have confidence to offer you best quality color coated steel coils.

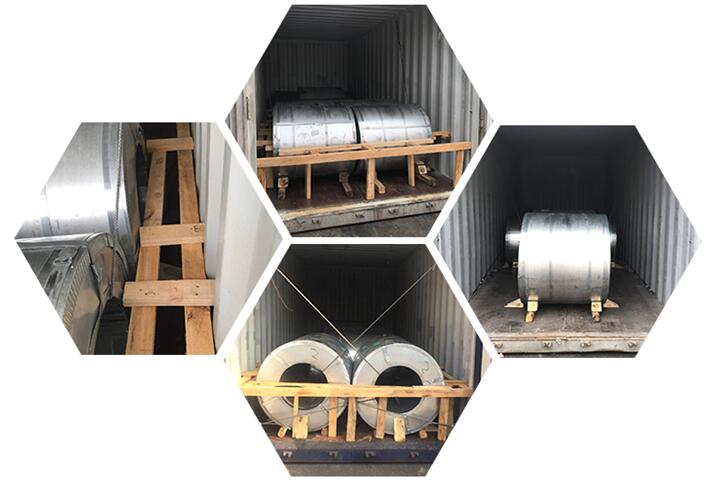

Packing & Delivery:
☆ Packing:
All steel coils from Yumisteel will be well packed as follows.
☆ One layer of Mildew paper and one layer of moisture-proof kraft paper to protect the steel coils.
☆ One 3.5cm thick kraft paper loops inside,and connected with mildew paper and of moisture-proof kraft paper to make sure the steel coils are well protected.
☆ Then again one layer of steel sheet on the surface and tighted with steel strips.
☆ When loading,we put mildewproof bags in the container.
☆ Delivery:
Delivery time for regular sizes: 15-20 days ;
Delivery time for special sizes: 25-30 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
