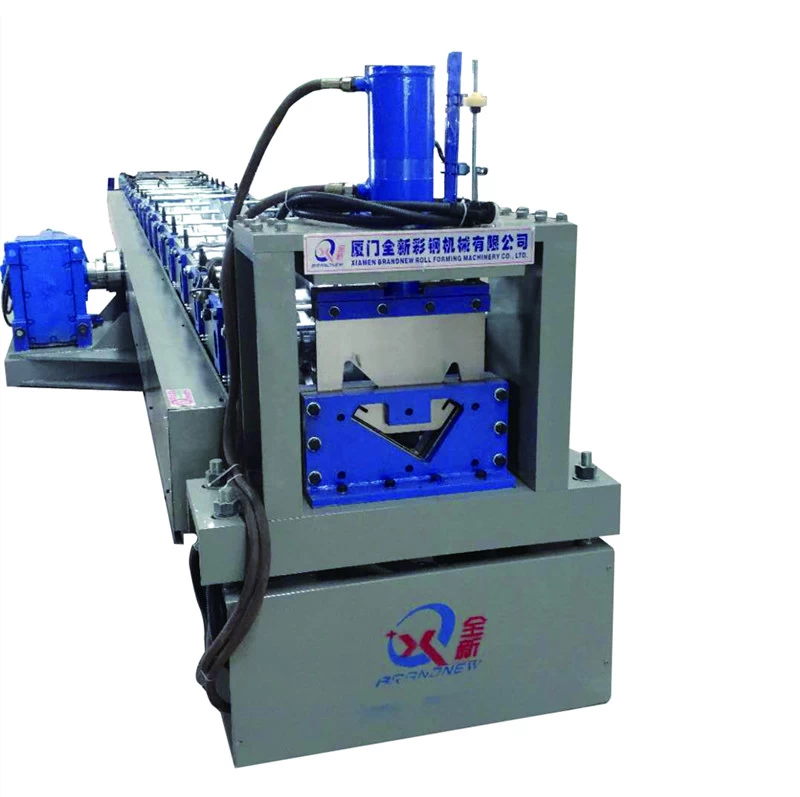

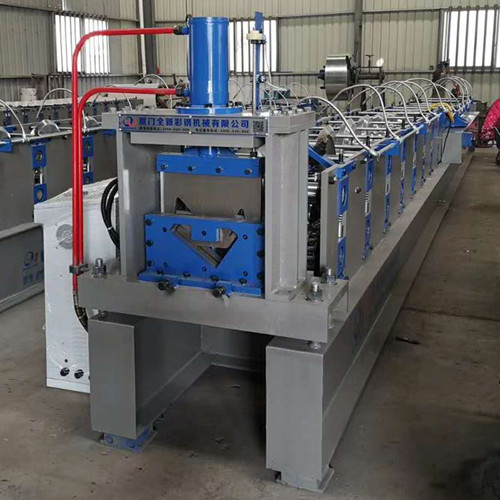

Column Steel Roll Forming Machine

We are professional steel column roll forming machine manufacturers and suppliers in China, and specialized in providing standard and customized service.



Details

Material: galvanized steel

Yield strength: 235MPA

Feeding width: 440mm

Material thickness: 3.0mm


Machine Specification

1. Machine size

 9M X 1.8M X 1.5M

2. Machine weight

 About 9T

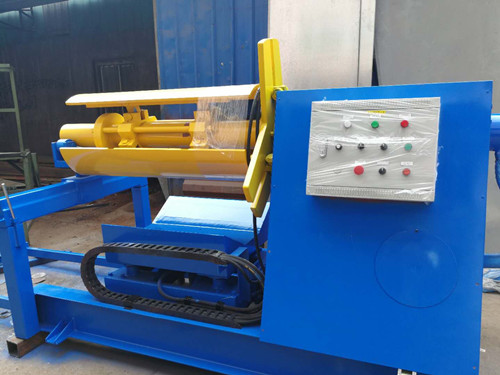

3. Decoiler

One manual decoiler, un-power

Hydraulic uncoiler for option

                                 ( Hydrauli decoiler with car)


4. Machine roller

Main rollers are made by high quality GCR15, heat treatment

Machine body frame is made by H450 steel


5. Machine post cutter

Hydraulic post cutter with 5.5KW motor

Three blades, made from Cr12
