Product Description

Product Application

Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem.

Information

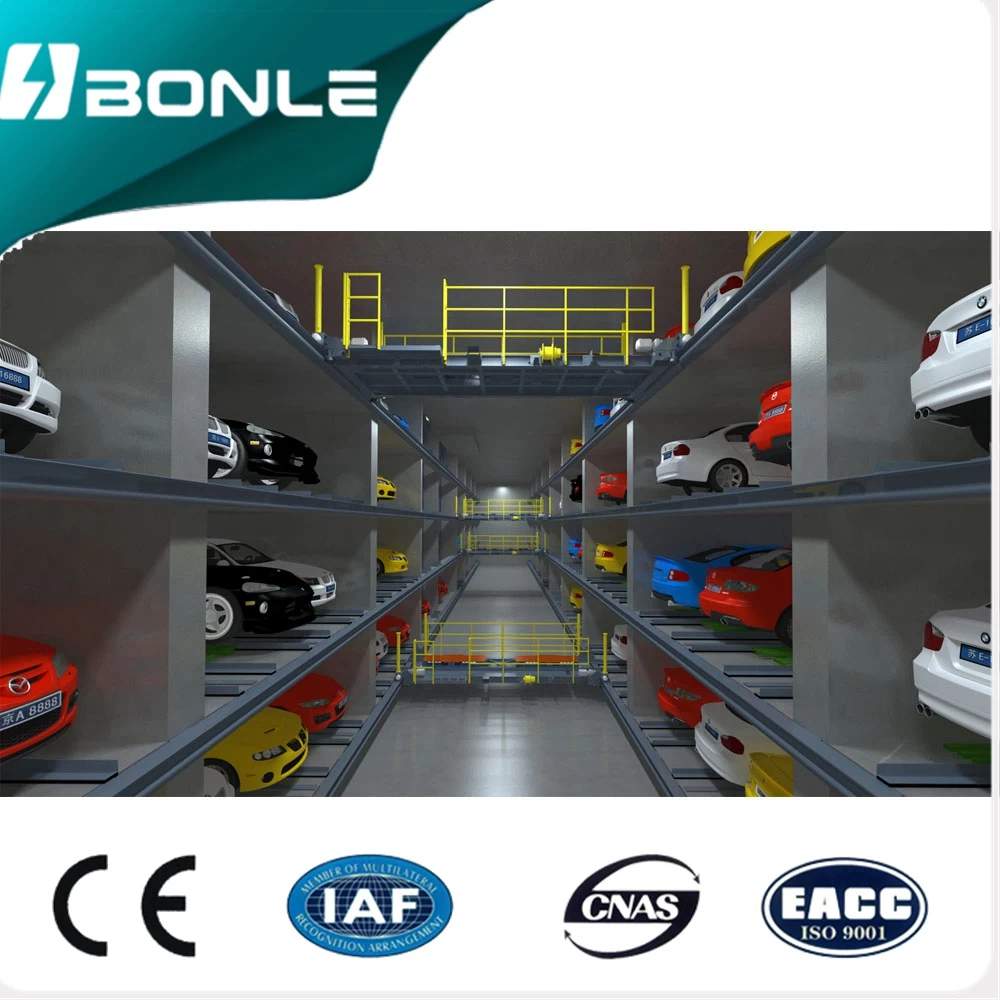

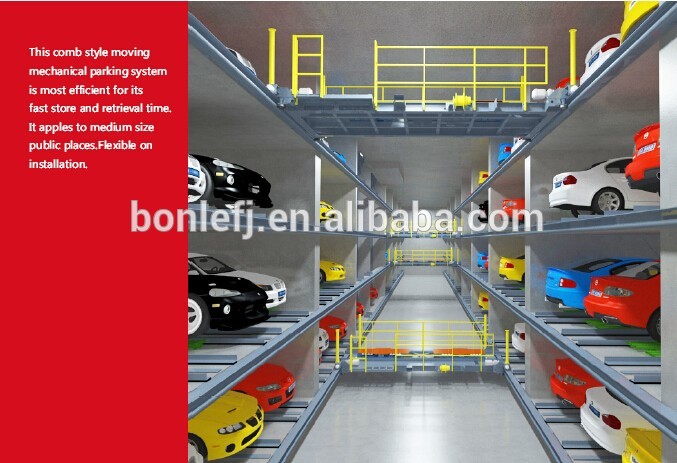

Comb Finger Plane Moving Mechanical Parking Sysdem
Dimensions of vehicle suitable for parking
Vehicle Type
SUV
PC/over size
PC/L
PC/Me
PC/C
L (MM)
5000
5300
5000
4700
4400
W (MM)
1850
1900
1850
1800
1750
H (MM)
2050
1550
1550
1450
1450
Weight (KG)
1850
2350
1700
1500
1300
Automatic Door
High-speed rolling door
Drive
Lifting motor power
11KW~30KW
Lifting speed m/min
30~60m/min
Shuttle Sliding Motor Power
2.2*2KW
Shuttle Sliding Sliding Speed m/min
Max 90m/min
Load carrier Lifting motor power
1.5KW
Load carrier Lifting speed m/min
Max 15 m/min
Load carrier Traveling motor
0.75*2KW
Load carrier Traveling speed m/min
Max 45 m/min
Entrance lifting speed m/min
Max 15 m/min
Entrance rotating motor power
2.2KW
Entrance rotational speed
360°/min

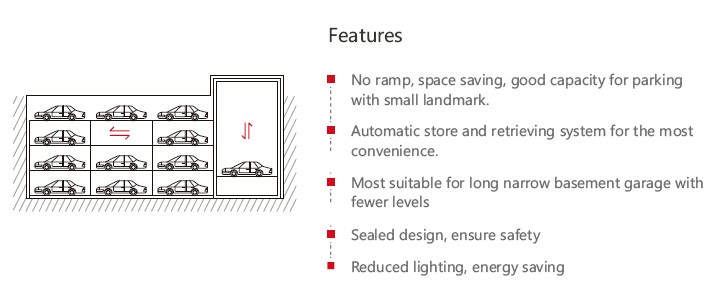

Features
Show
Advantage

Advantage


1.Steel Selection: Large-scale steel ，solid steel design


2.Installarion Technology: High strengh bolt , long-lasting life


3.Restrictor:Resonable design with external contracting holding for tires,


preventing slidding


4.Motor Position: Hiding motor , convenient usage
