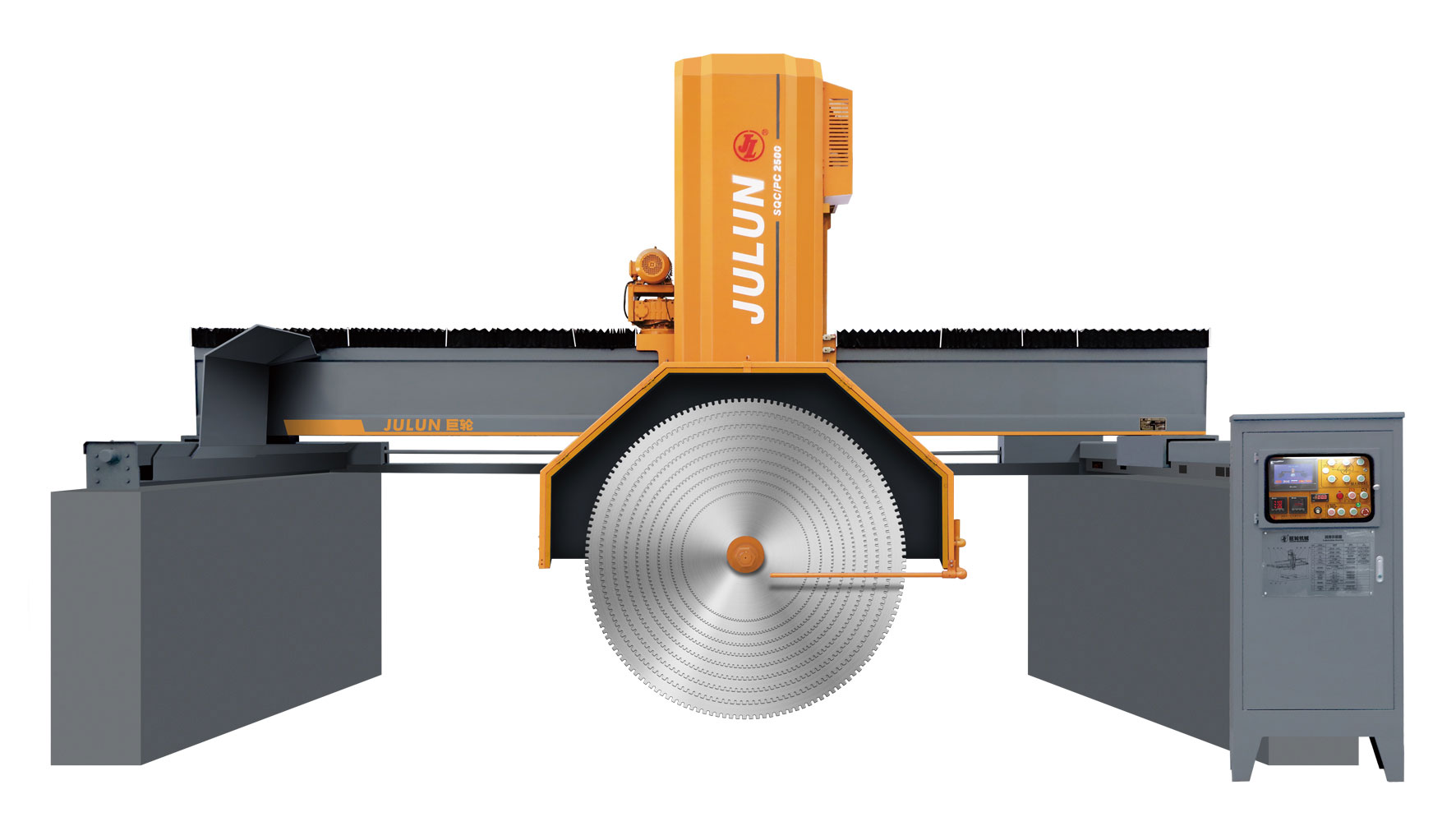

Combined Block Cutting Machine Slide Type

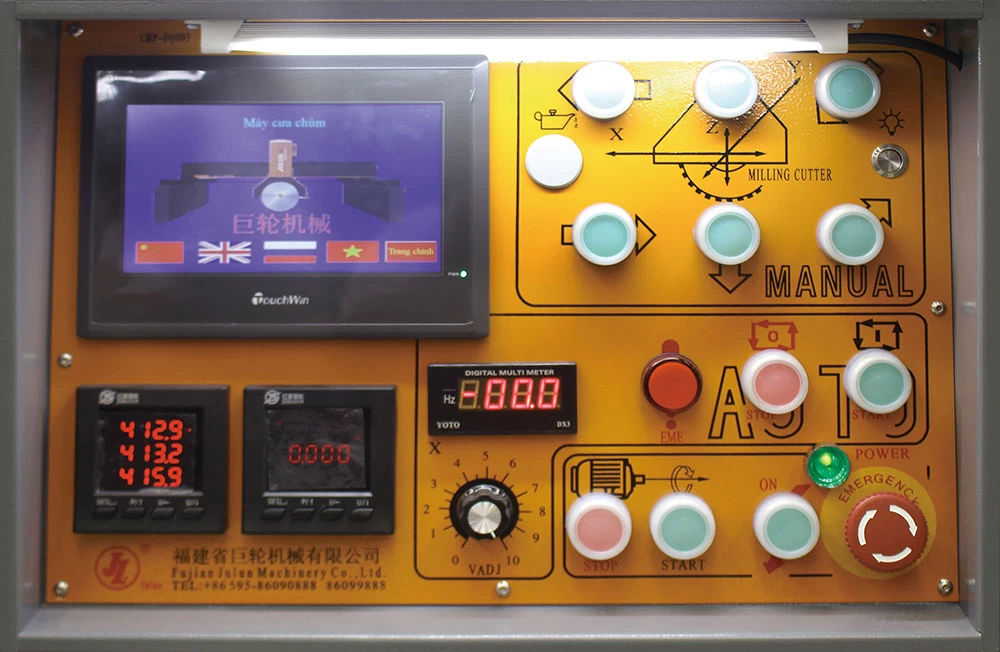

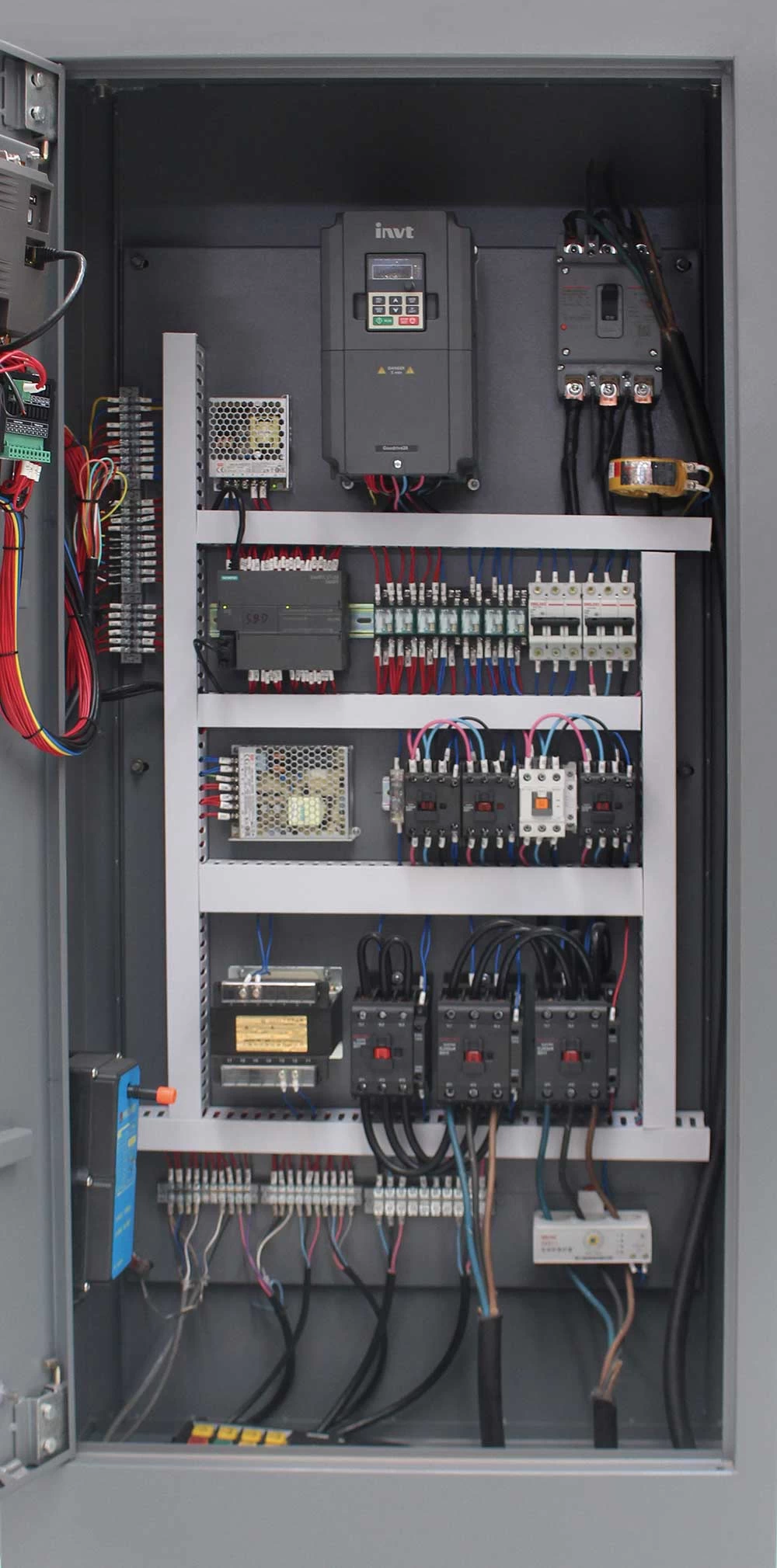

1.Quarry stone block cutting machine uses PLC system and Human-machine Interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding and adjusts the speed according to the stone material.

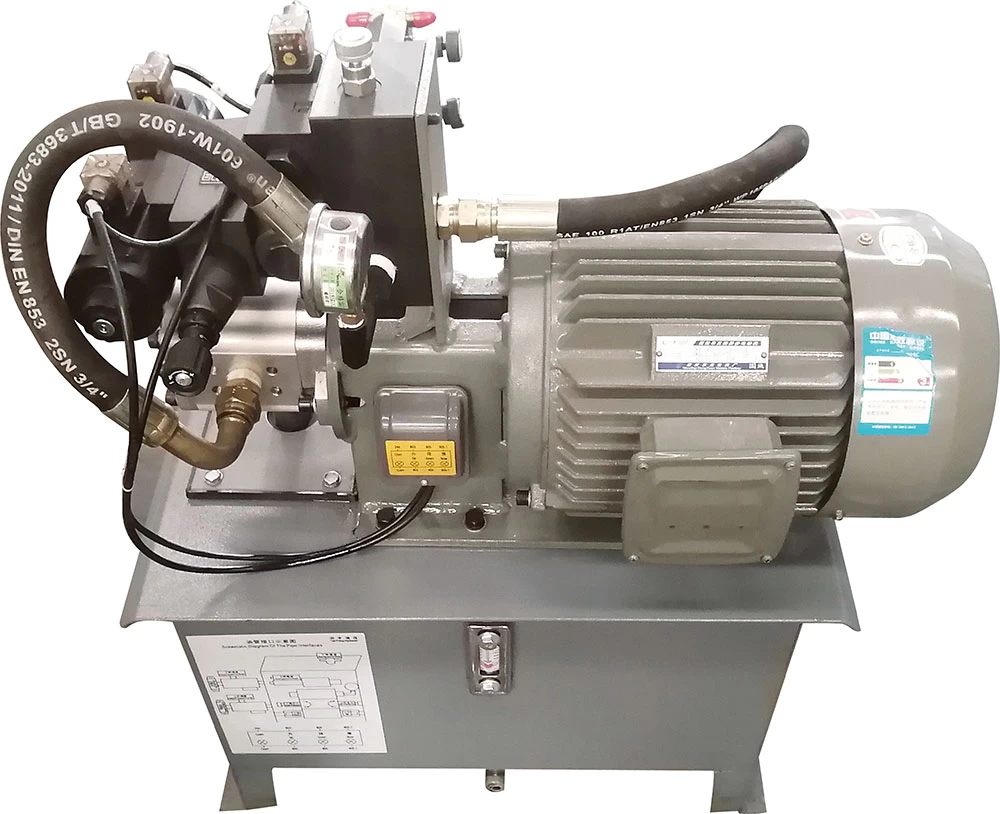

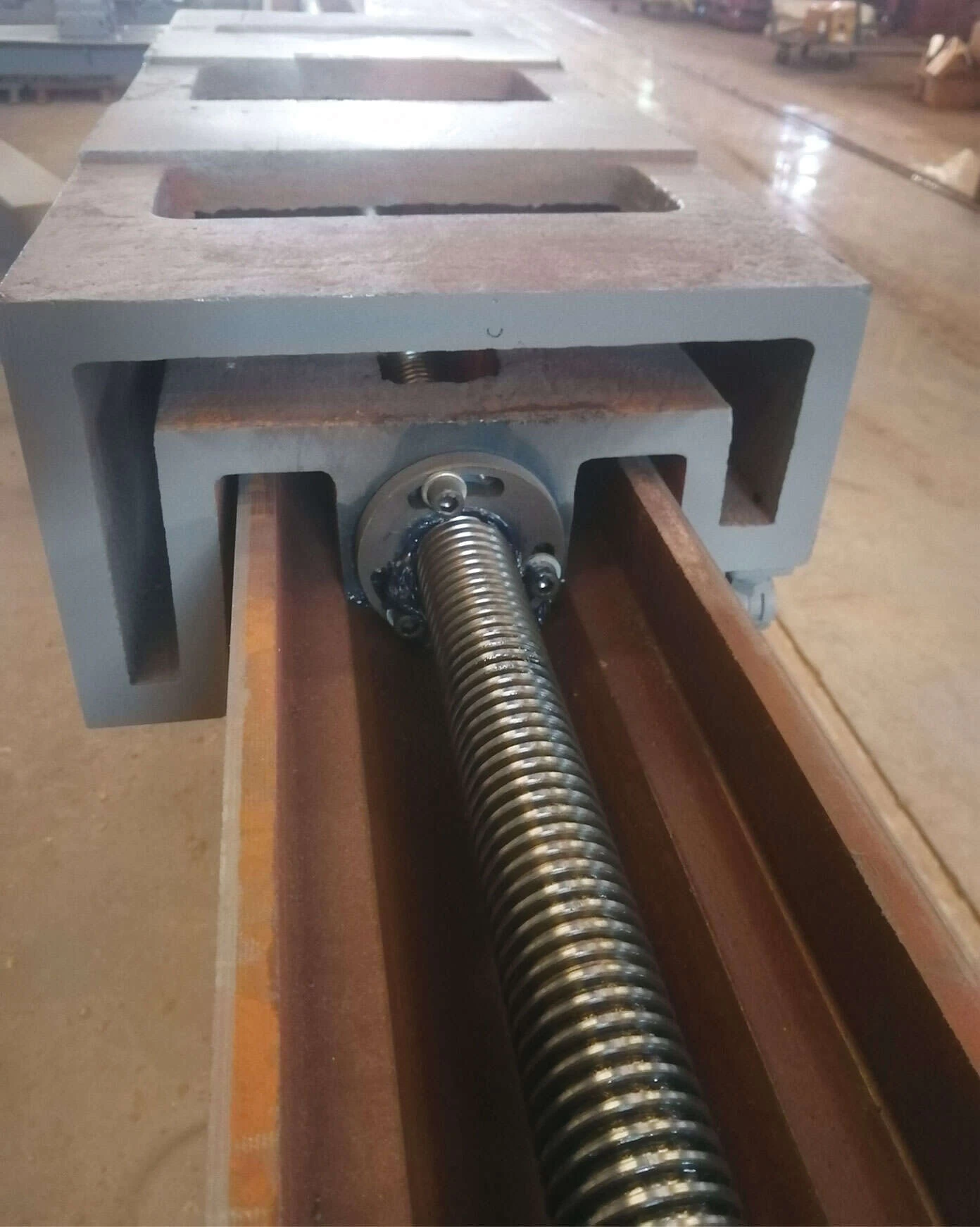

2.It uses hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials; The block can be placed on the ground directly and economize the worktable and its maintenance costs;
3.The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Specification
|
Appellation
|
unit
|
SQC/PC-2200/2500/2800
|
|
Max.blade diameter
|
mm
|
Φ2200/Φ2500/Φ2800
|
|
Max.processing length
|
mm
|
3800/3500/3200
|
|
Max.processing width
|
mm
|
2200
|
|
Max.lifting stroke
|
mm
|
1150/1350/1350
|
|
Water consumption
|
m³/h
|
15
|
|
Power of main motor(optional)
|
kw
|
37/45
|
|
Total power
|
kw
|
47/55
|
|
Dimension(L×W×H) (from base to the highest point)
|
mm
|
8000×4400×3700
|
|
Weight
|
kg
|
12000
|
Photos
