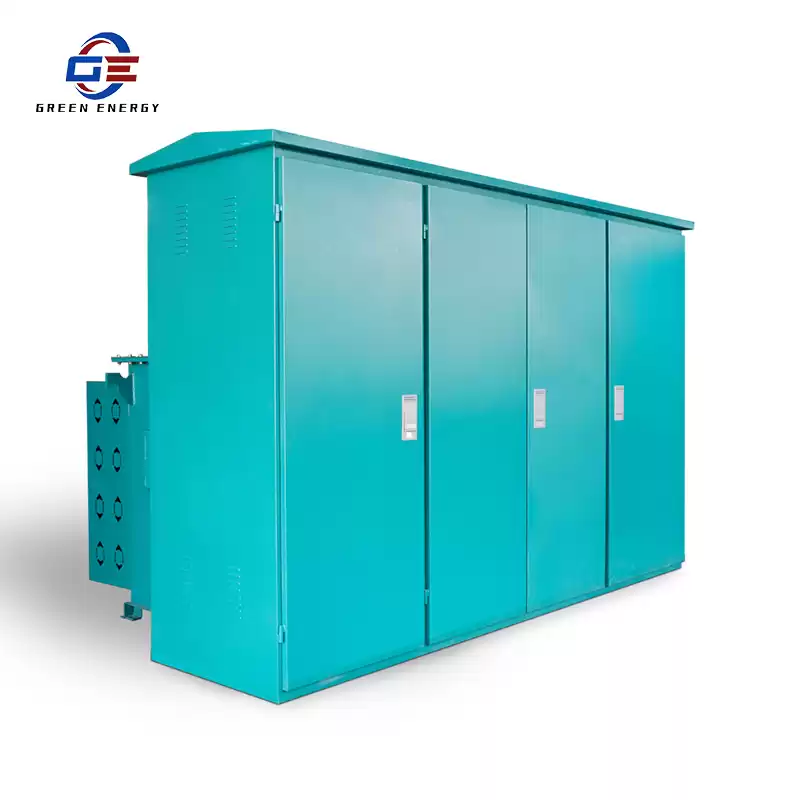

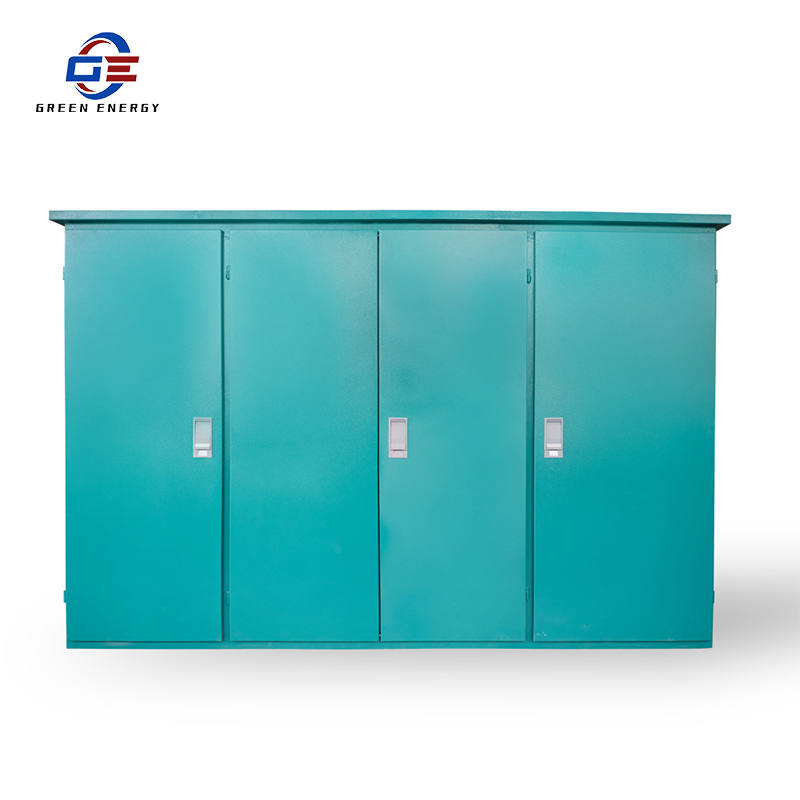

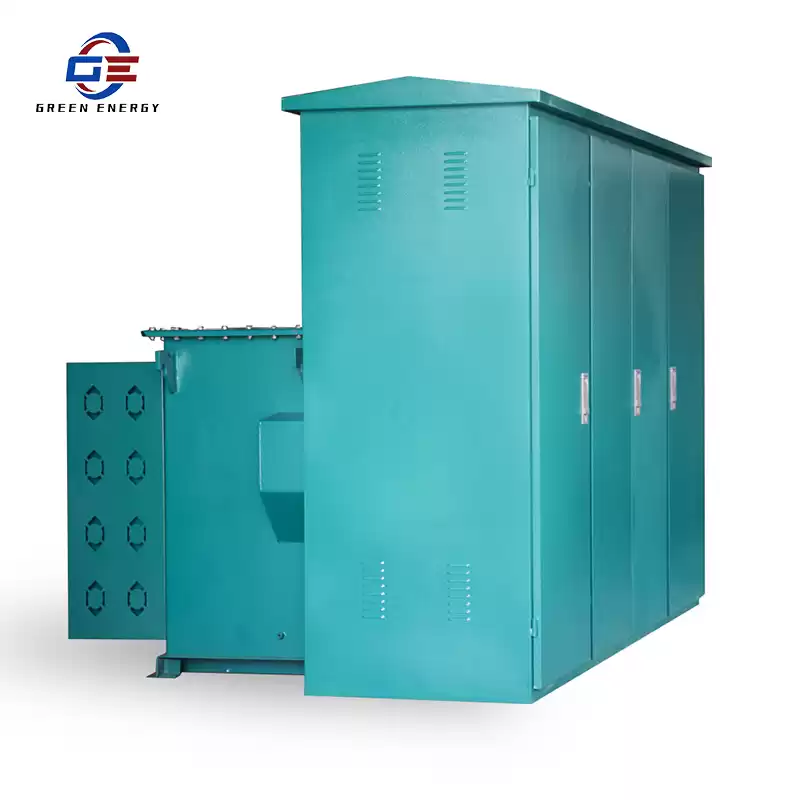

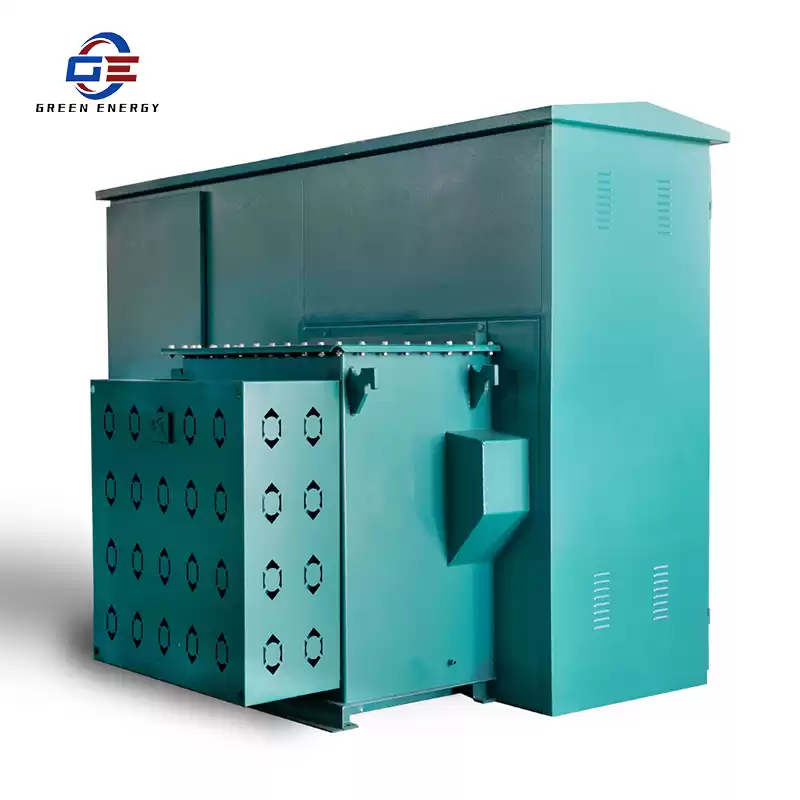

Combined Transformer Pad Mounted Transformer for Bitcoins Mining
⇒ PRODUCT DESCRIPTION
ZGS11 series combined transformer is a new type of power distribution equipment (also called American box transformer), is will high-voltage switch plug-in fuse, high-pressure current limiting fuse installed in transformer, the insulation and cooling with mineral oil, with reasonable structure compact, small volume, installation flexible, convenient operation, cover an area of an area small, etc. Combined transformer is especially applicable to the load center city grid, to reduce the consumption,improve the quality of power supply.
This series of products has been widely used in communities across the country,and public places, industrial mining enterprises etc distribution sites.
Features
1. Compact structure and easy installation.
2. Sealed and fully insulated structure to ensure personal safety.

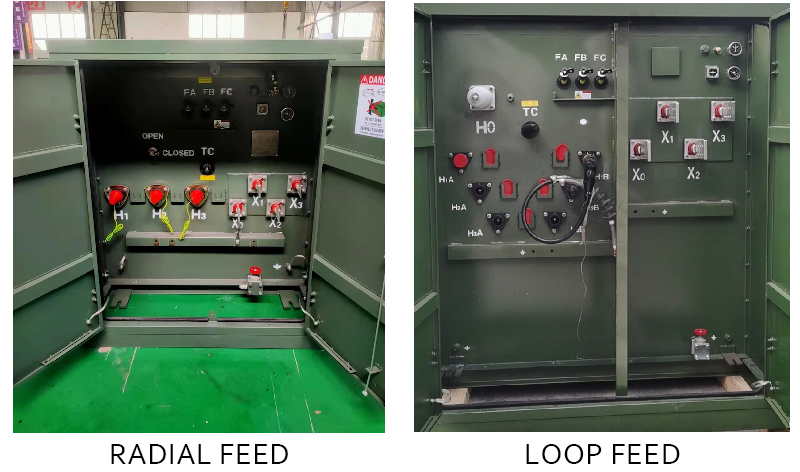

3. It can be used for radial feed and loop feed, which is convenient for conversion and improves the reliability of power supply.
4. Low loss, low noise and superior performance.
5. The cable connector adopts the plug-in form, which has the characteristics of isolation switch, convenient operation and flexibility.
6. High voltage double welding wire protection, the inserted welding wire has temperature and current dual sensitive protection performance
7. Transformer fault backup welding wire and second-line fault protection.
8. The box adopts anti-theft structure.
9, low temperature, strong overload capacity
10. Due to the special structure of the transformer body, its outstanding advantages are high quality and small neutral point voltage offset.
Technical Data of ZGS11-H(Z) Pad Mounted Transformer
|
Rated Capacity(kVA)
|
Rated Voltage
|
Vector-group
|
No-load Loss(W)
|
75℃ Load Loss(W)
|
No-load Current(%)
|
Short-circuit Impendance(%)
|
|
HV(kV)
|
Tapping Ranges
|
LV(kV)
|
|
100
|
6
6.3
10
10.5
11
|
±5%
±2×2.5%
|
0.4
|
Yyn0
Dyn11
|
200
|
1500
|
0.65
|
4.0
|
|
125
|
240
|
1800
|
0.65
|
|
160
|
280
|
2200
|
0.60
|
|
200
|
340
|
2600
|
0.50
|
|
250
|
400
|
3050
|
0.50
|
|
315
|
480
|
3650
|
0.45
|
|
400
|
570
|
4300
|
0.45
|
|
500
|
680
|
5150
|
0.40
|
|
630
|
810
|
6200
|
0.40
|
4.5
|
|
800
|
980
|
7500
|
0.35
|
|
1000
|
1150
|
10300
|
0.35
|
|
1250
|
1360
|
12000
|
0.30
|
|
1600
|
1640
|
14500
|
0.30
|

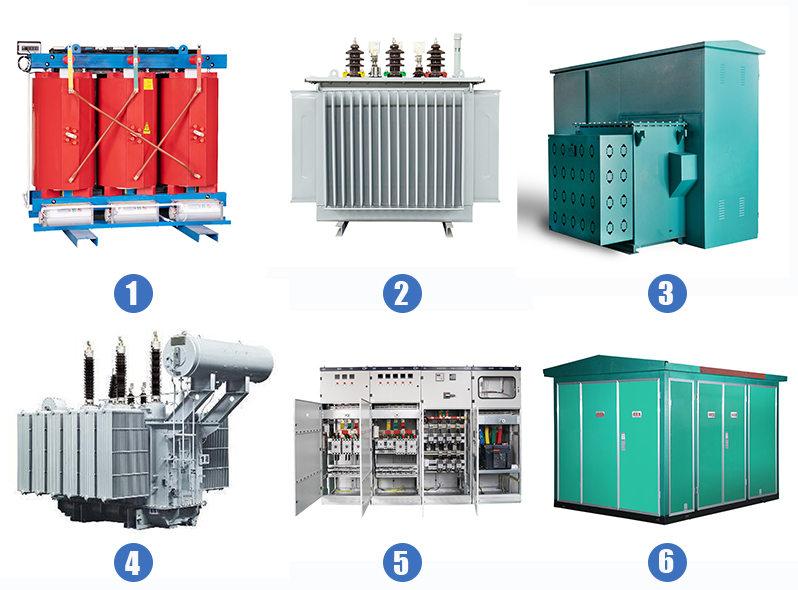

⇒ RELATED PRODUCT
