Combined Tube and Sheet Laser Cutting Machine F3015BE
Plate and tube laser cutting machine is designed for metal pipe and metal plate cutting. (tube made of Stainless steel, carbon steel, aluminum, copper etc.)
Features of Dual Function Plate and Tube Laser Cutting Machine:
Specialized pipe rotary attachment with advanced pneumatical chuck that can improve the cutting efficiency.
Considerate design of dust removing system with different cavities, and huge wind channel improves the working condition Smart control. Lubrication system and easy loading materials design“W “ extra beams to strength the machine bed.longer lifespan.
Extruding aviation grade aluminum beam 3 guideways 2 on top and 1 on side wall ,lighter in weight but tough.
Earlier manufacturer of dual use pipe laser with 3 yearsexperience in building such stable running laser.
Powerful chucks for accurate clamping pipe and tube, profiles.

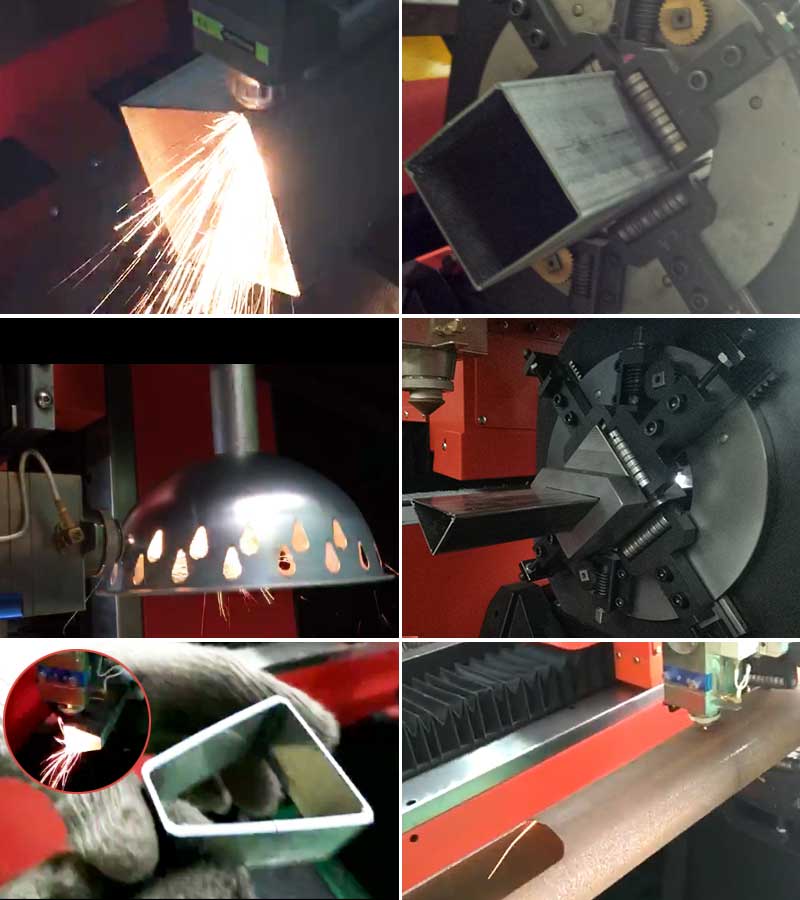

The front manual chuck is very forceful ,more accurate and durable, easy to adjust for any operators ,and cost-effective also. When tube fabricators need to cut special-shaped tubular product, customized fixture tool is needed, find the details from beblow photos.

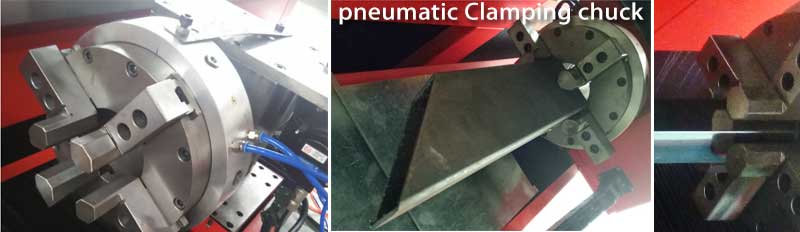

Pneumatic Clamping Chuck:
Such chuck is fully automated , operator needs only to press two buttons to control the movements of claws ,but for different batch of tubes (20mm diameter difference） ，the claws travel distance
is to be adjusted once again.
Parameters of Baisheng Fiber Laser cutting Machine:
|
Brand and manufacturer
|
Baisheng, Guangzhou Baisheng Electron co.,ltd
|
|
Machine Model
|
F3015BE (metal laser cutting machine)
|
|
Dimension
|
5200*5000*1900mm
|
|
Laser power
|
700w 750w 1000w 1500w 2000W
|
|
Machine weight
|
4500KG
|
|
Fiber laser Generator
|
Raycus, IPG
|
|
Laser wavelength
|
1080nm
|
|
Laser Beam quality
|
<0.373mrad
|
|
Worktable
|
Sawtooth with pneumatic easy moving attachment
|
|
Fiber Laser cutting head
|
WSX or Raytools or Precitec auto focus cutting head
|
|
Focus lens
|
original
|
|
Working life of fiber module
|
More than 100000 hours
|
|
Motors & Drivers
|
Japan or France brand
|
|
Reducer
|
Imported high precision and output torque, low noise
|
|
Guide Rails
|
High accuracy linear , from Taiwan
|
|
Transmit system
|
DUAL drive rack and pinion , 4 servo motors .
|
|
Chain system
|
Enclosed high quality
|
|
Water Chiller
|
TEYU( S&A) brand, or Hanli
|
|
Control system
|
Professional laser control system--Cyptube + CypCut
|
|
Position type
|
Red Dot pointer
|
|
Cutting thickness
|
≤8mm(stainless steel)
≤16mm(carbon steel)
|
|
Max. Idle Running Speed
|
110M/min
|
|
Max Cutting Speed
|
35m/Min
|
|
Geometric Position Accuracy
|
within ±0.05mm/M
|
|
Reorientation accuracy
|
within ±0.03mm/M
|
|
Lubrication system
|
Auto Electrical motored,smart control led display
|
|
Min. Line Width
|
±0.02mm
|
|
Power Consumption
|
8-21KW total
|
|
Auxiliary gas system
|
Japan SMC series components, dual air inlets, low pressure piercing , automatic pressure adjustment and switching
|
|
Power supply Voltage
|
380V/50Hz/60Hz
|
|
Auxiliary Gas for cutting
|
Oxygen, Nitrogen, Air
|
|
Compatible software
|
Autocad, Coreldraw, etc
|
|
Graphic format
|
DXF/PLT/AI/
|
|
Working method
|
Industrial PC control with console desk and romote
|
|
Total power protection rating
|
IP54
|
Control Software:

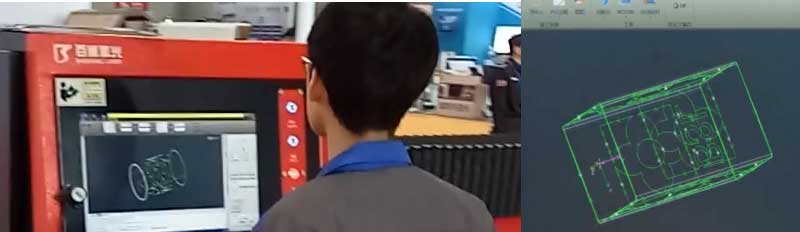

Advanced tube laser and sheet metal control software.Cypcut and Cyptube combined functions laser ,when laser switches to cut pipes , CypTube software works .
CypCut provides common drawing functions,
which can be easily used from the left drawing toolbar. Most of these drawing
functions are similar to AutoCAD, and they are also very intuitive to use. The
software has a variety of user-friendly graphics operating functions, simple
and quick to get started.
Supports Multiple Files
Cypcut software supports graphic data
formats such as AI, DXF, PLT, Gerber, and LXD, accepts international standard G
codes generated by Master Cam, Type3, and other software, and automatically
optimizes when external files such as DXF are opened/imported, saving time and
efficiency. ....
Automatic Height Control:
The BCS100 self-contained capacitor height
adjuster (abbreviated as BCS100) adopts a closed-loop control method to control
the laser-cutting capacitor follower and provides a unique Ethernet communication
(TCP/IP protocol) interface. It is easy to implement high-speed automatic
tracking and sharing with Cypcut software

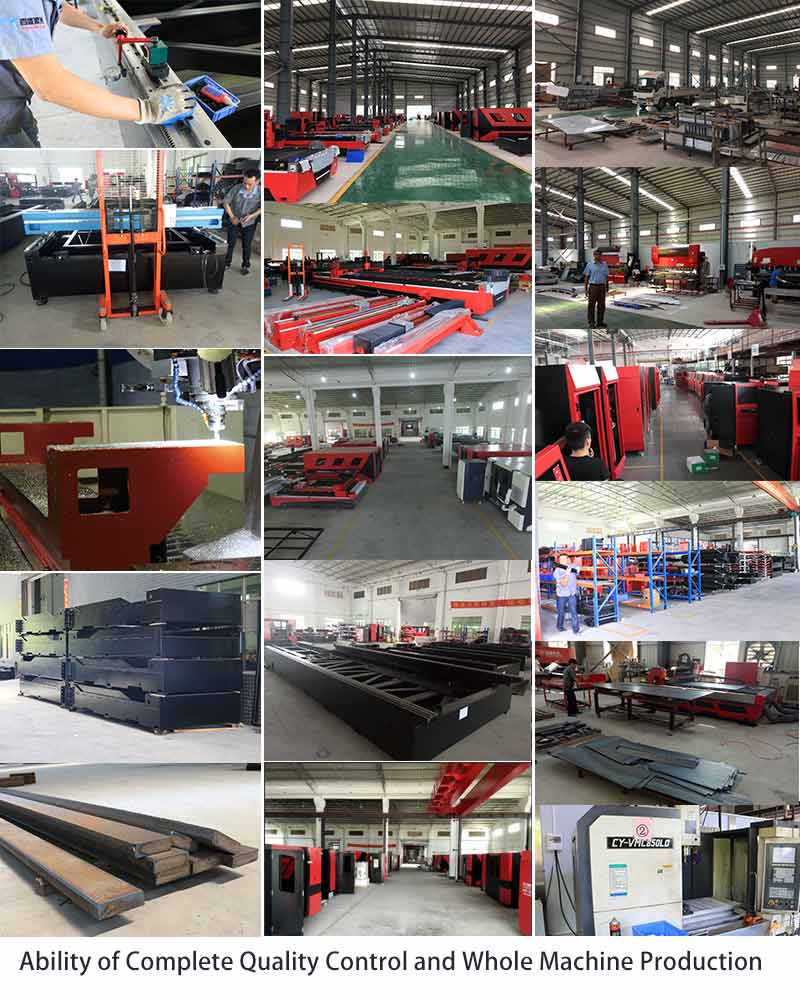

Baisheng Laser Company Album
