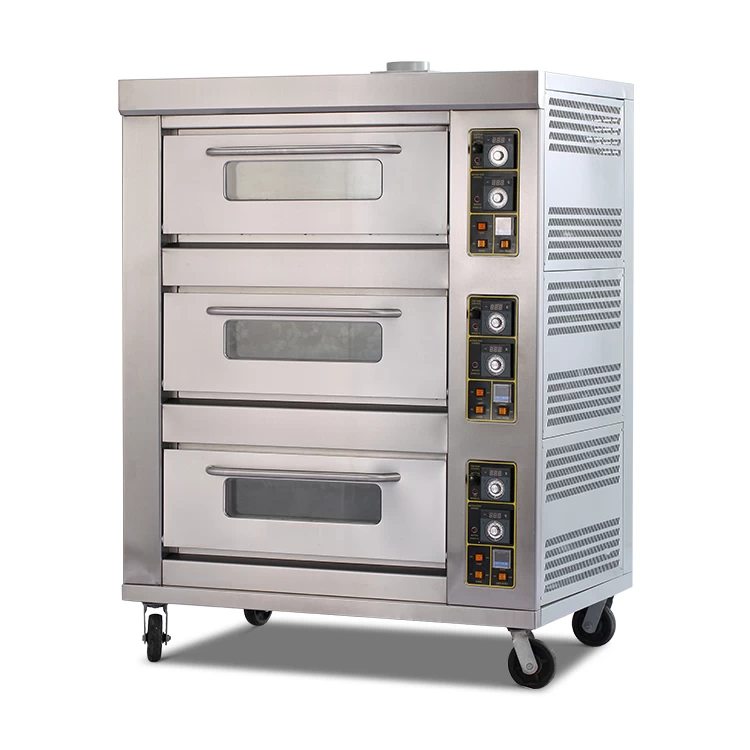

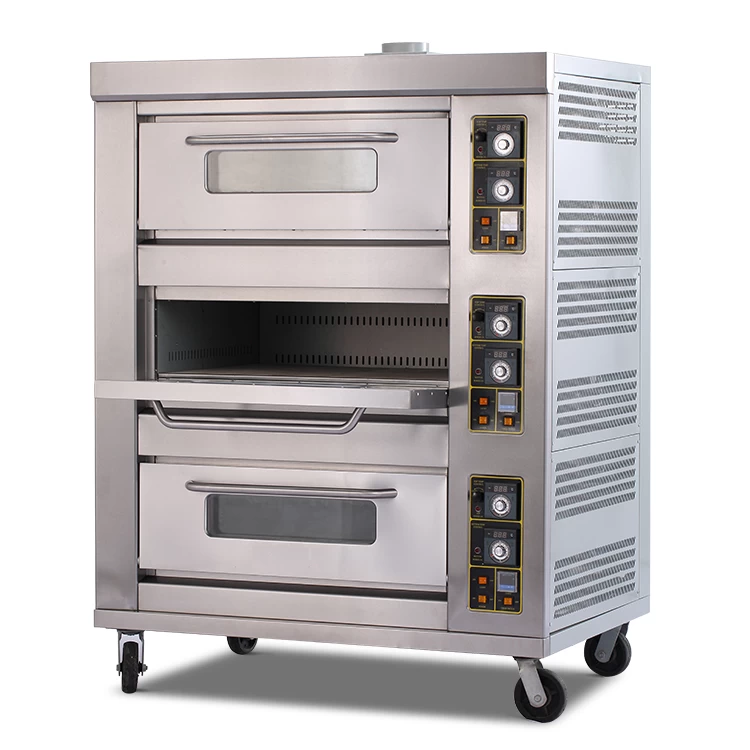

Commercial Gas Pizza Oven for Bakery Equipment
OEM & ODM are welcomed!
The material and function of Commercial Gas Pizza Oven :
(1) Front 430 stainless steel (conventional
thickness is 0.6mm, other three sides can be made of stainless steel or cold
plate)
(2) Liner: Electrolytic plate (conventional:
0.4mm), infrared heating plate, slate (heated evenly);
(3) Temperature control: digital display
temperature control, pointer temperature control, electronic version
temperature control (better)
(4) AC contactor: Since the power of the
heating tube is too large, the electricity passes through the AC contact to the
heat pipe, and the sense Control
the AC contactor after the temperature is transmitted to the thermostat
(5) Insulation cotton (insulation cotton):
the material is glass fiber, the temperature can withstand 800 °C, play the
role of heat insulation and heat preservation, the thickness is 7cm;
(6) Fire-blocking plate: the material is
electrolytic plate (expensive than cold plate, cheaper than stainless steel),
the thickness of the plate is 0.6mm (conventional), which plays a role in
blocking fire and prevents scorching food;
(7) Exhaust pipe: controlled by the exhaust
pipe switch, emitting a part of the oven heat, reducing the temperature inside
the oven;
(8) Fan: high-quality fan, two-door gas
furnace need to use two sets of fans, because the pressure of the gas pipe is
not enough, it is necessary to blow gas and gas into the combustion pipe
through the fan;
(9) High-quality igniter; Tips: Open the door
first when it is ignited to prevent explosion;
(10) Fermentation tank: the fermentation time
is about one hour, and the general temperature can reach 85 ° C, which is used
to ferment bread;
(11) Cable: Connect the air switch, because
the power is too large, so the plug cannot be used;
(12) Solenoid valve: a switch that is
controlled by electricity, controls the gas input, opens: gas input, shuts off:
gas cannot enter;
(13) Insurance: plays the role of protecting
the current switch;
(14) Heat pipe: to increase the temperature,
let the liner warm
(15) Inner lighting: easy to look after the
food and its degree of roasting. Type: incandescent lamp (FSL Foshan Lighting),
high temperature resistance, longer life than LED lights.
(16) Reset switch: Dell brand, reduce power
consumption; prevent users from forgetting to turn off the lights (lights will
continue to work, reduce the life of the lights)
Model
|
Description
|
G36B
|
Triple-layer Six-tray gas oven
Unit Size: 1320*920*1740mm
Internal Size: 870*640*220mm
Packing Size: 1420*1020*1810mm
Temperature Range: 30~400℃
Gas Type: LPG/LNG 2800Pa
Voltage: 220V/50Hz
Net Weight: 220kg
Gross Weight: 230kg
|
Commercial Gas Pizza Oven Features:
1.Gas
oven, double layer heat preservation; Wide glass window
2.Equipped baking timer,accurately control baking time,and with timing alarm
3.Boric Stone flooring, chamber temperature up to 400
degrees.
4 Front #201 stainless steel.
5 Good heat insulation.
6 1.2~1.5 mm thickness.
7. Nice and neat design suitable for open kitchen of mall,
supper market, bakery room
8High quality Heating element. Heating event.
9 Digital computer control. Well control of the temperature and
timing.
10.Safe protection for temperature exceeding.
