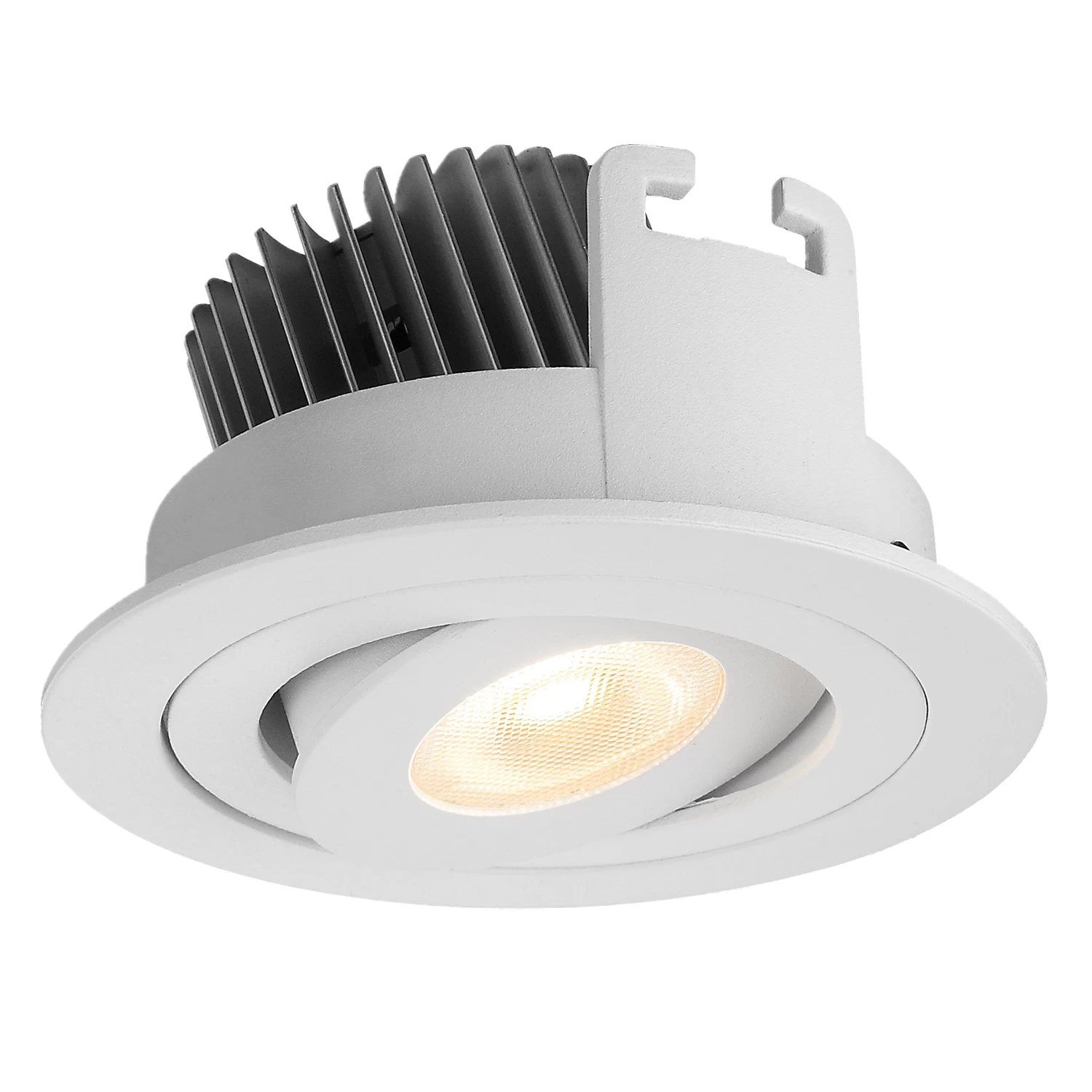

Commercial 10W adjustable led round recessed downlight


  • The product contains an alumium die-cast front and a pure alumium heat sink, completes with power coating finishing
  • By using the new generation of CITIZEN COB LED chip, this product creats extreme low heat and offers an excellent lumen ferformence
  • A range of the reflectors are available with different beam angles, all complering with hight reflecting vacum plated finishing



  • Product Size
  • Material
  • Light sourceLED COB
  • CRI>90
  • CCT3000K
  • Finish
  • Lumen700lm

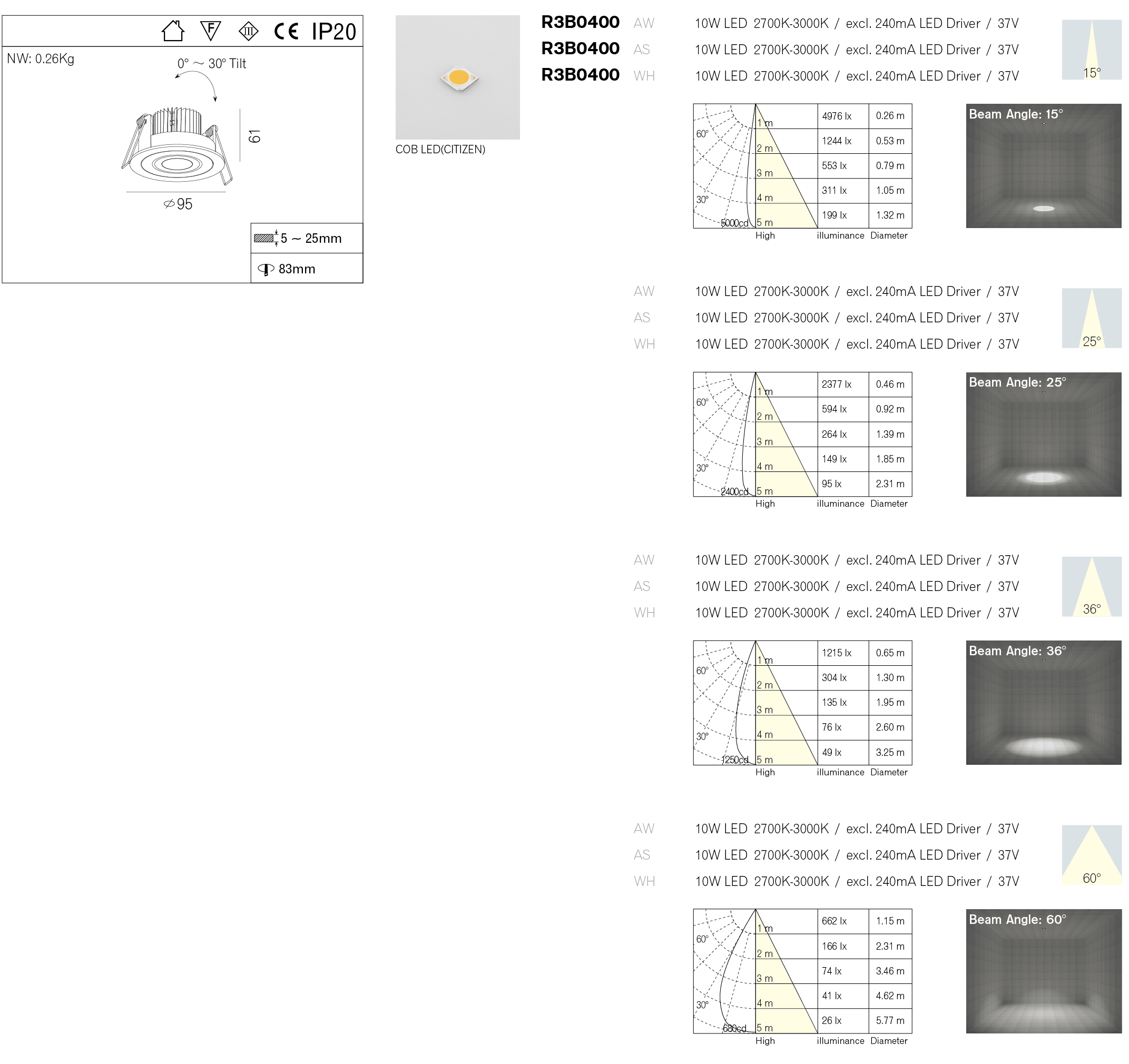

  • Beam angle15° 24° 36° 60°
  • Lamp Power10w
  • IP RateIP20
  • Cutout

Model number

 R3B0400

Installation

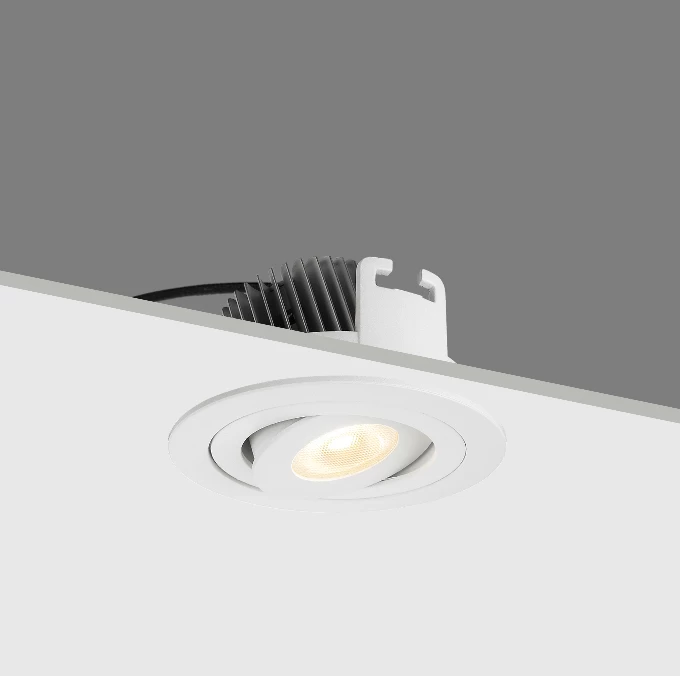

 Recessed light

Power

10W

Light source

 COB

Lumen

700lm

Material

Aluminum

Beam Angle

15° 24° 36°

Electric Data

DC 37V  250mA

CCT

 2700K/3000K/4000K/5000K

Finish

Texture:White、Black、Silver

IP

IP20

Certification

 CE、STD、RoHS

CRIRa>)

>90

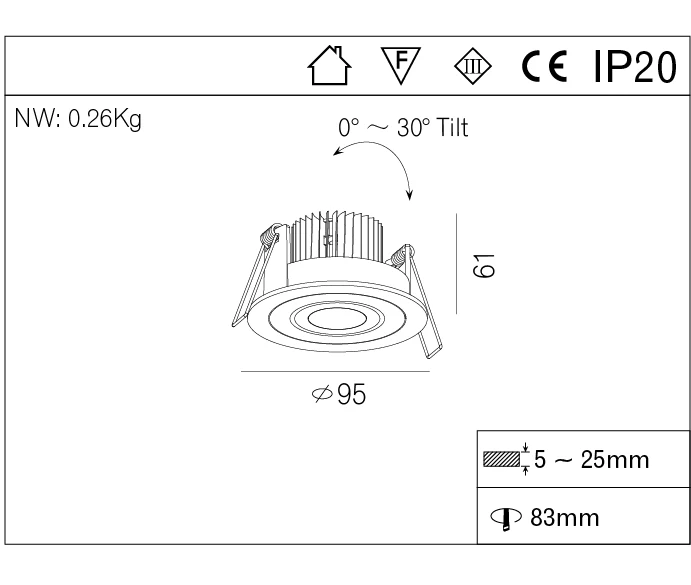

Cutout shape/size

  83mm

Class

Class III

Requirements

 1-10V/SCR/DALI


10w led downlight

  Application


lighting application cafe  lighting application club  lighting application hotel  lighting application office area  lighting application residence  lighting application restaurant  lighting application shopping mall  lighting application showroom  lighting application stroe  lighting application Villa
