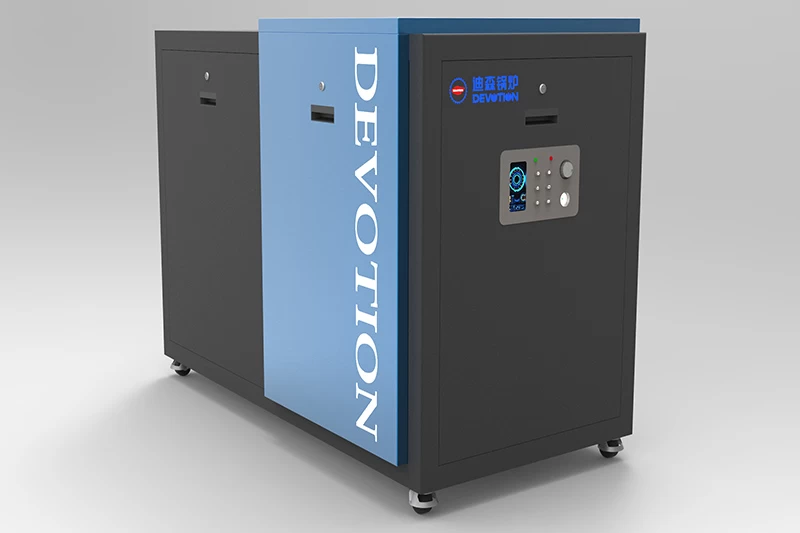

Condensing Gas Boiler For Business Has The Following Advantages
-
Full Premix Combustion Technology
-
Heat Efficiency exceed 105%
-
Stainless steel heat exchanger
-
Low NOx emission≤30mg/Nm3
-
Remarkable small footprint, good for tight space
-
Easy to install, easy to move, simple to operate
-
Flexible cascade, capacity from 60KW to 4200KW
A. Smaller footage
4200KW-6T, only 6M2
B. Long service life
Stainless steel heat exchanger, better anti-corrosion
C. Smaller noise
Operating noise＜45db
D. More energy-effective
Heat efficiency＞105%
E. Environment-sound
NOx＜30mg/m3
F. Flexible combination
(60kw-4200kw)
G. Simpler control
Smart control system
Stainless Steel Heat Exchanger
-
Stainless steel spiral plate type heat exchanger
-
Evenly rounded a spiral cycle, this enlarges heat exchanging surface
-
Counter flow of water and smoke can maximize heat transfer
-
Heat exchanger is arranged along the temperature of smoke to form fully premix layer and high temperature layer
-
Air forced circulation, making use of air from outdoor to facilitate firing
-
Self cleaning

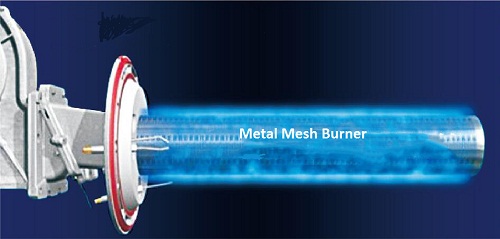

Variable frequency blower + stainless steel metal mesh burner
-
Full premix combustion technology to realize super low NOx emission(NOx≤30mg/Nm3)
-
Counter flow plus radiating heat exchanging, result in higher heat exchanging efficiency
-
Complete combustion with very small access air coefficient.
Cutting-edge Condensing Technology
Multiple energy savings
-
Saving energy by innovative structure
Dual cores turbine heat exchanging technology to achieve 360 degree heat exchanging, larger heating exchanging surface
Innovative condensing heat exchanger, different from down-stream layout of conventional boiler, to increase rated efficiency by 17%
-
Saving energy by combustion
100% full premix combustion technology to enable air and fuel gas fully premixed before getting into combustion chamber
-
Saving energy by operation
Modulating the firing to meet the load demand, to make the boilers capacity adjusted from 2.5% to 100% per demand. This maintains the optimum ratio of fuel and air and prevents the boilers from stop/start frequently, which contributes to remarkably prolonged service life, and reduces heat loss. The overall operating efficiency will be improved by over 15% .

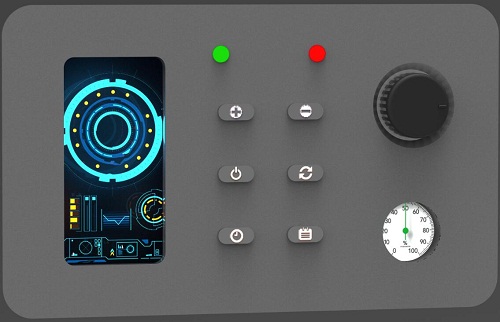

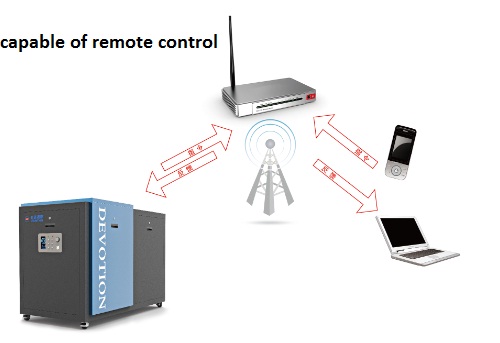

Optimized Control System
-
Real time reading operating parameter including temp. pressure, flow, heat, motorized motor status, circulating pump status etc.
-
Supervises operating status of system equipment
-
Real-time monitors over the system heat consumption, make-up water volume and fuel consumption.
-
Stores system operating parameter as reference for operation management.
-
Sets limit values on operating parameter for initiating alarm. In case of one abnormal parameter, the operating system will initiate alarm signal and form alert message for operation management to refer and deal with.
-
Set climate compensation curve to facilitate control system to adjust operation fast and timely subject to working conditions in order to keep the heating system safe, stable, energy-saving and efficiently.

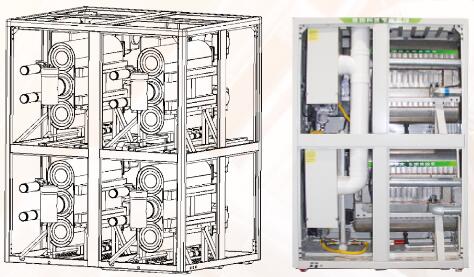

BUILDING BLOCK DESIGN
Just like building blocks, to combine Gas Boilers together and get the heat load needed. Simple, easy, and reliable.
Standard model for single Gas Goiler
60KW/500KW/600KW/1050KW
Model for cascade of Gas Boilers
120 / 240 / 360 / 1000 / 1200 / 1400 / 1800 /
2000 / 2100 / 2400 / 3000 / 3500 / 4000 / 4200

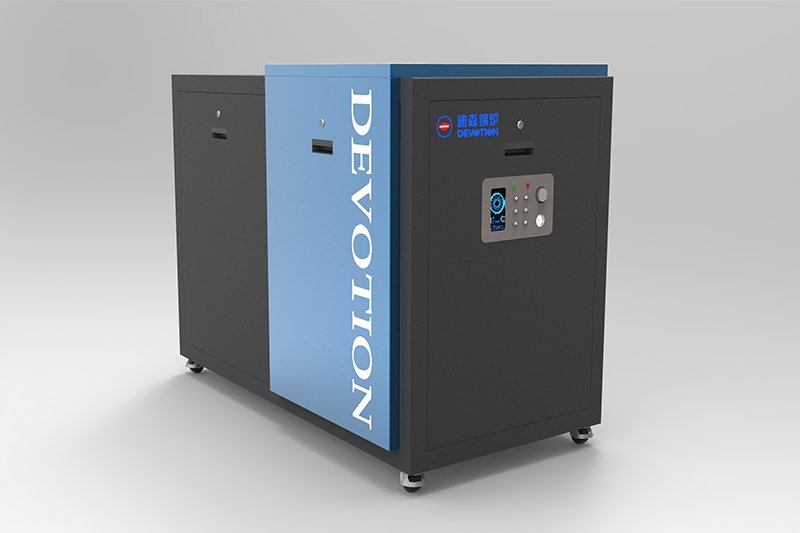

Product features
Simple to install, easy to move, small footprint
When the temperature below 60℃, can be vented with PVC
Capable of boiler cascade, big capacity of boiler can be installed in the basement, on the roof and outdoor.

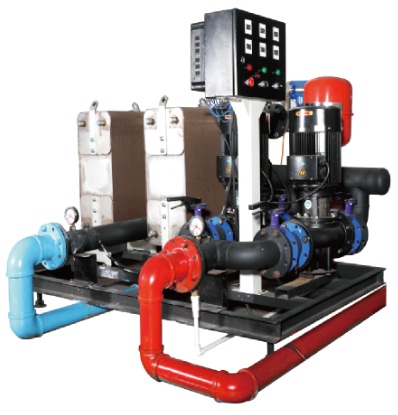

COMBI SOLUTION FOR HEATING AND HOT WATER

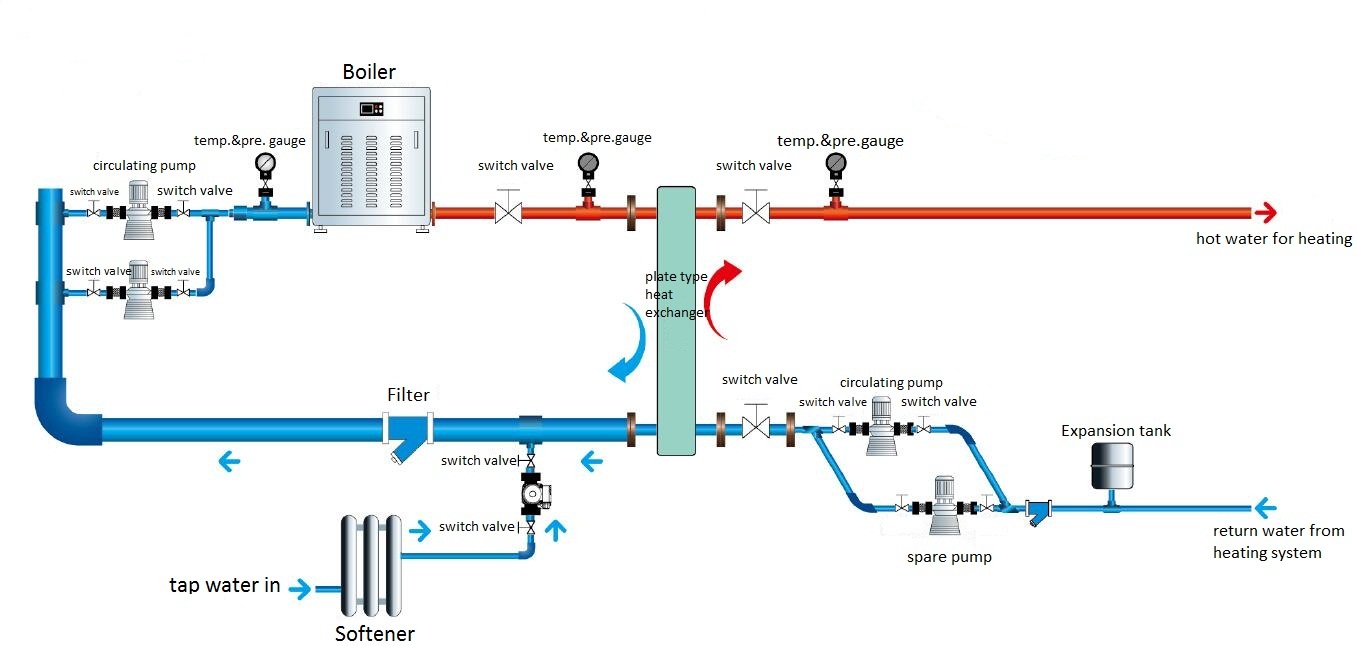

HEATING ONLY SYSTEM DIAGRAM
CENTRAL HEATING AND HOT WATER SYSTEM DIAGRAM
Full Premix

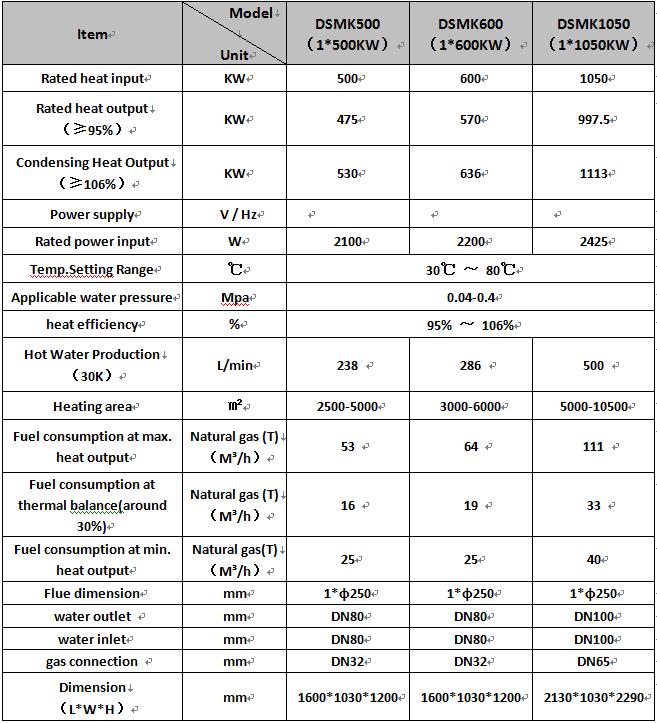

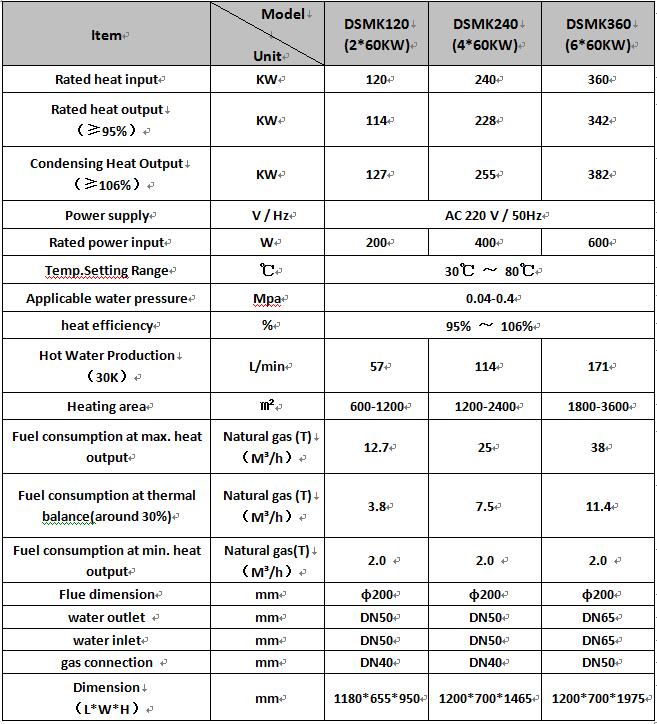

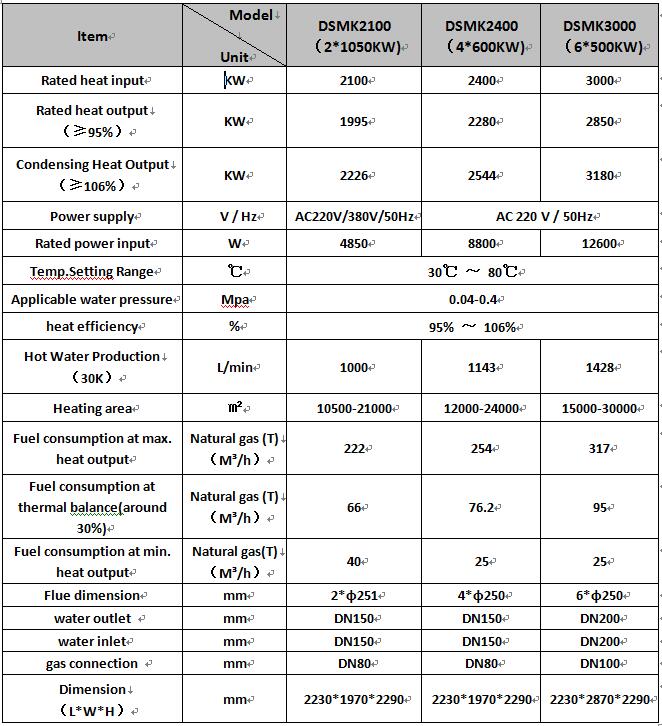

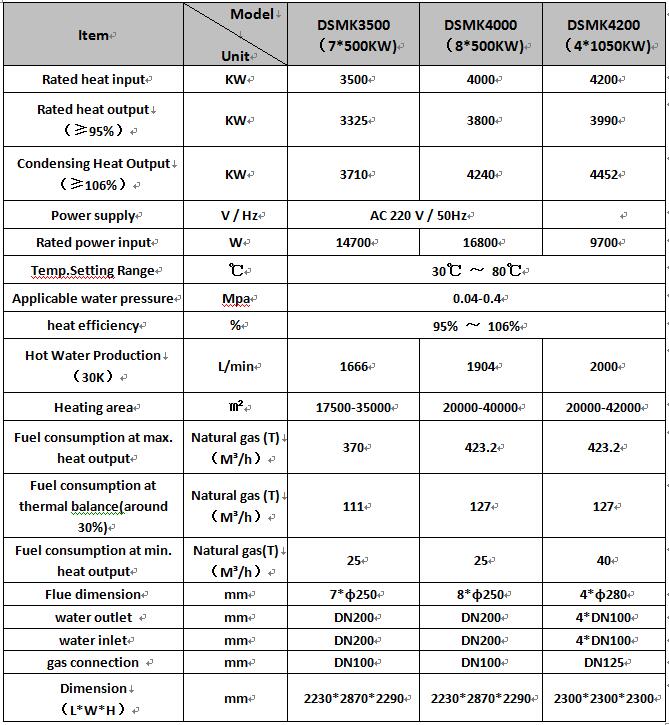

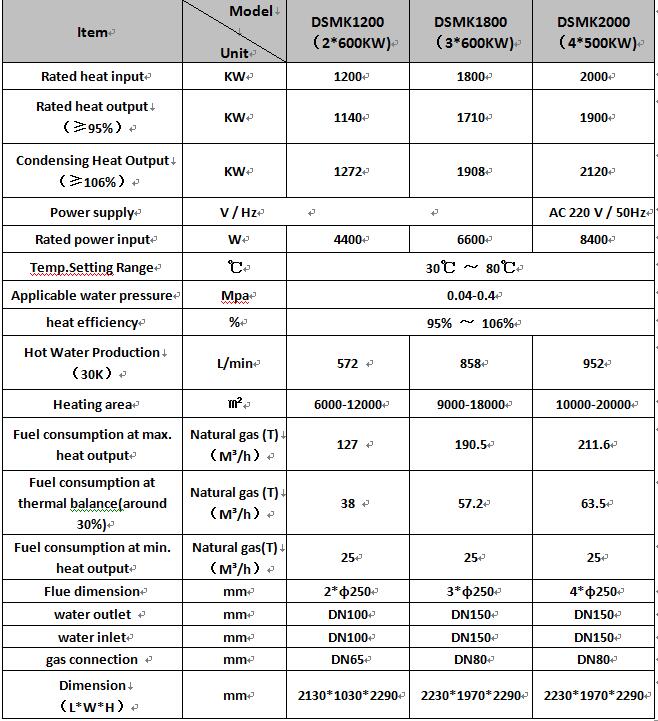

Condensing Gas Boiler Technical Specification
Remarks: by monitoring heating subject to demand in the room, the modular boilers can automatically turn off parts of the load in order to keep the system working most cost-effectively.
