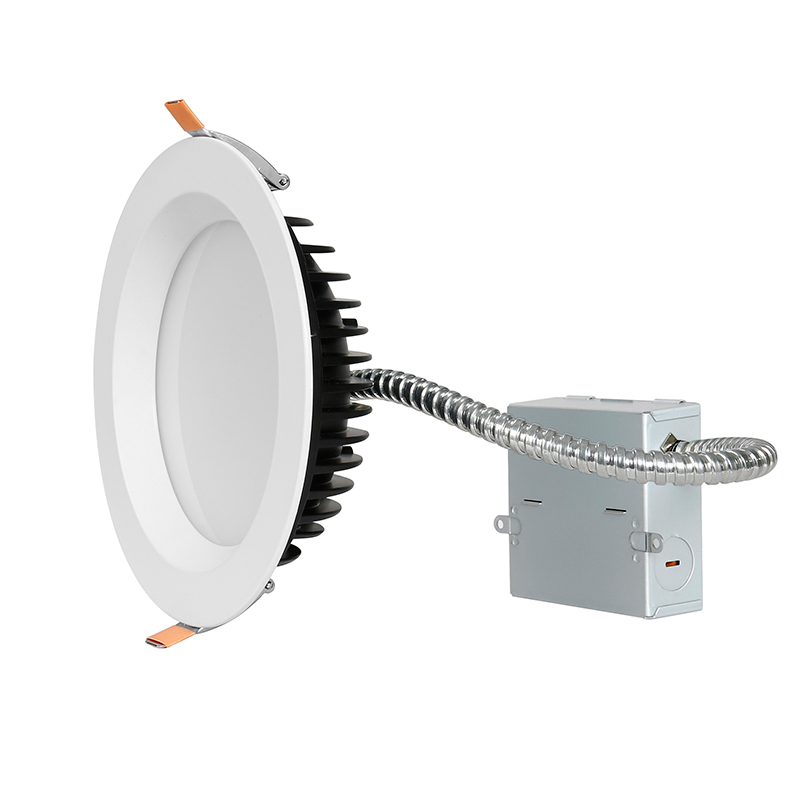

Commercial LED glare-free downlight
Outdoor dimmable LED COB downlight has a patented design and unique appearance. Using die-cast aluminum alloy and heavy aluminum reflector, the heat dissipation effect is remarkable. Provide high performance and low price for mainstream and residential commercial lighting applications. Not only provides full-spectrum colors, but the color rendering index is as high as 90. Dimmable LED lamps provide higher efficiency and longer life than compact fluorescent lamps.
The wide distribution mode of indoor true color downlight is very suitable for general area lighting. On-site selectable color temperature and high color rendering provide excellent color performance. Possible applications include mixed-use, residential, construction, healthcare, education, and hotel environments.
Commercial downlights have good heat preservation characteristics
-Patented design, unique appearance, easy for marketing
-Durable, die-cast aluminum alloy and heavy-duty aluminum reflector can dissipate heat.
-Provide white, nickel and black scratch-resistant and smooth surfaces.
-LM80 Sanan 2835 LED (0.5W/pc), guarantee high lumen and high quality.

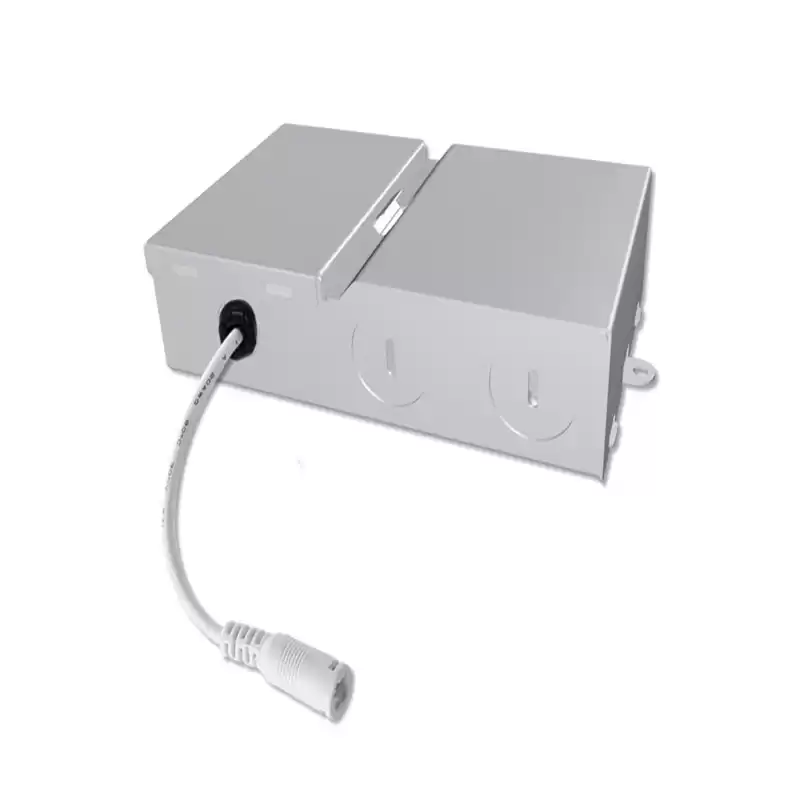

-Isolated LED driver with a 5-year warranty.
-100-277V AC perfect dimming triac or 0-10V dimming.
-It is directly installed in the insulated ceiling (IC) without any heat shield.
Indoor high energy-saving LED downlight specifications
|
Input power
|
Input voltage:
|
Lumens
|
Halogen equivalent
|
Efficiency
|
Radio International
|
|
15 watts
|
100-277 alternating current, 50/60HZ
|
1200 lumens
|
120 watts
|
80 lumens/W
|
> 82Ra (CRI 90 optional)
|
|
LED chip
|
Luminous flux angle
|
Color temperature
|
Size
|
Cut size
|
Dimming
|
|
COB
|
110°
|
2700K-6000K
|
Ø145X86mm
|
Ø130mm
|
Triac Or 100-130V dimming 10 -100%
|
|
Airtight
|
Lamp life
|
Certification
|
Warranty
|
Quantity/Box
|
Power factor
|
|
Yes
|
70% light output at 50000 hours
|
ETL, cETL, Energy Star
|
5 years
|
20 pcs/box
|
0.95
|

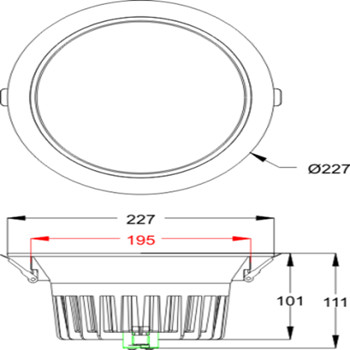

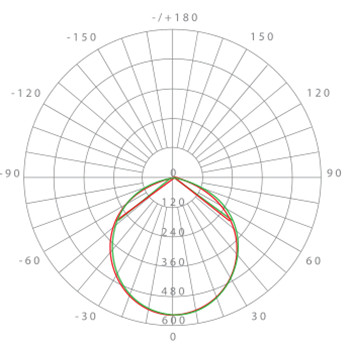

Photometric data size chart

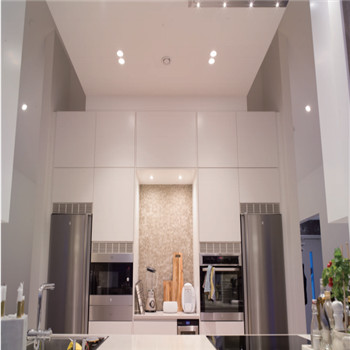

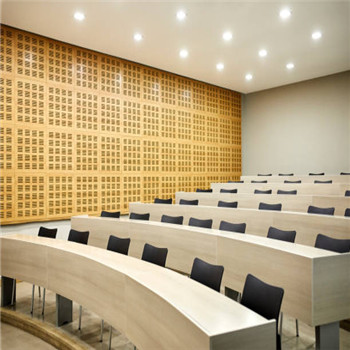

Easy to install outdoor LED downlight applications
-Residential
-Architecture
-Medical Insurance
-Education
Hotel
-Hospital
-Office
Warranty:
* 5-year standard warranty and labor allowance*
* Warranty limitation: The product must be rated according to the product data sheet (PDS); operation <16 hours; in an environment of -22°F ~ 140°F.
FAQ:
1. What is the warranty period of the lamp?
-For UL/DLC products, we provide a 5-year warranty, and other products provide a 2-year warranty.
2. Can I have a sample order for LED lights?
-Yes, we welcome LED lamp sample orders to test and check the quality. Mixed samples are acceptable.
3. What is the delivery date?
--Sample can be delivered in about 1 week, and bulk order will take about 2 to 3 weeks.
4. How is the quality?
-Choose high-quality materials.
-48-hour aging test to terminate defective products.
-Quality control test before shipment.
-Good packaging to ensure safety.
5. Where is your main market?
-North America and Latin America. We have LED lighting distribution warehouses in California, Texas and Michigan
6. Can you design a new model?
-Yes, we can open new molds and produce according to your drawings.
