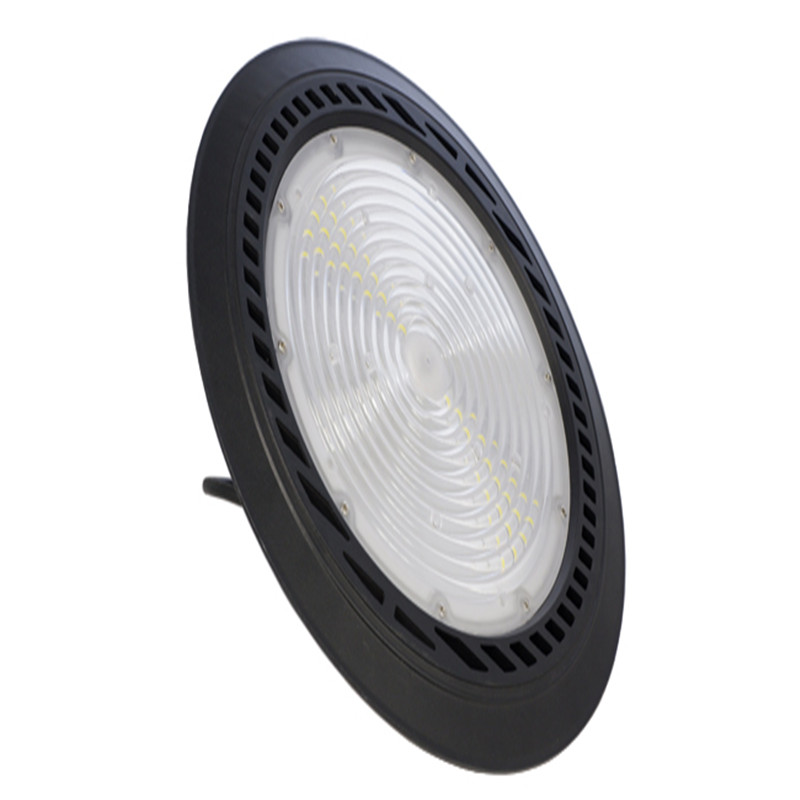

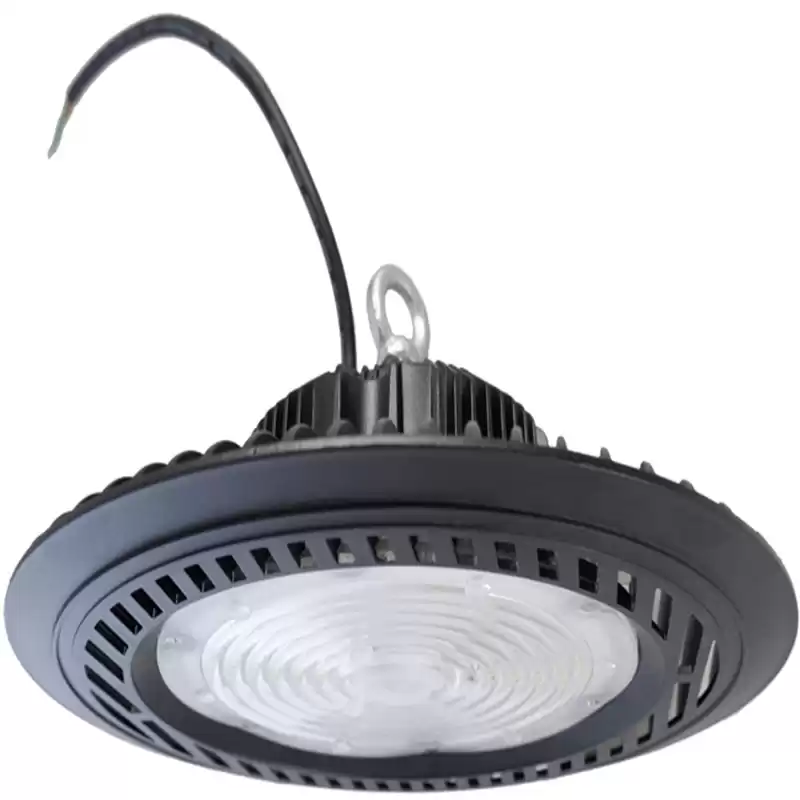

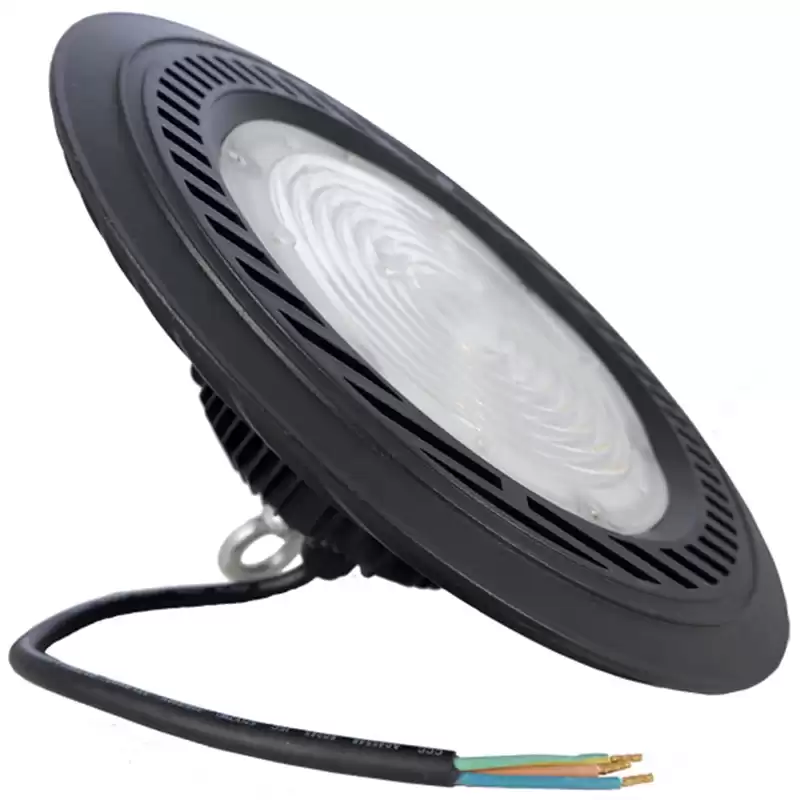

Commercial lighting UFO high bay lamp
Morstar UFO high bay LED light fixtures provide excellent value, excellent energy efficiency, easy installation and high reliability, and come with a 5-year limited warranty. Use high-purity aluminum heat sink with high thermal conductivity. Compared with traditional light sources, energy consumption is significantly reduced by 70%. The lamp has the characteristics of high brightness, low light attenuation, and large current margin. It is very suitable for quickly and easily illuminating warehouses, storage facilities, retail and light industrial places.

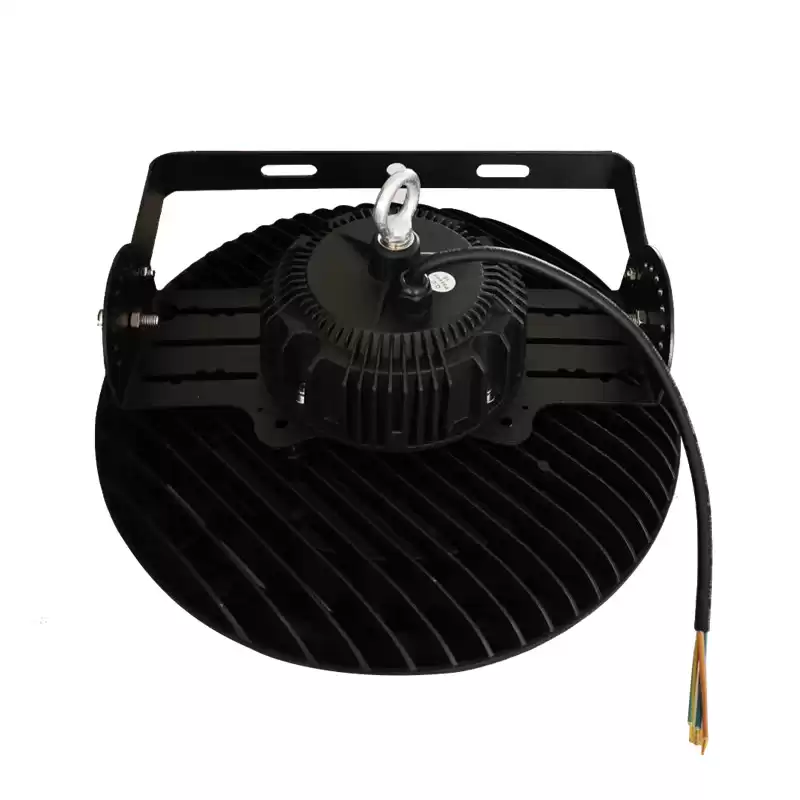

Aluminum heat sink UFO high bay is easy and simple to install. The product is made of aluminum alloy, which makes the product durable and IP65 moisture-proof. It has excellent performance in warehouses, storage facilities, retail and light industrial places with a ceiling height of 8-15M.
Specifiction of warehouse lighting UFO high bay
|
Input voltage
|
Power
|
Light effect
|
Luminous flux
|
chip
|
|
AC100-265~50/60Hz
|
150W+5%
|
125-130lm/W
|
18750-19500lm
|
450pcs*SMD2835/3030
|
|
Ra
|
Color tolerance
|
PF
|
THD
|
Conversion efficiency
|
|
CRI>70
|
≤10SDCM
|
≥0.95
|
≤10%
|
≥88%
|
|
Life time(H)
|
Beam angle
|
IK/IP Grade
|
Insulation grade
|
Surge protection
|
|
30000
|
90°
|
IK08/IP65
|
Class 丨
|
4KV
|
|
Size(mm)
|
N.W.(kg)
|
G.W.(kg)
|
Color box size(mm)
|
Carton size(mm)
|
|
Φ335mm/H165mm
|
3.1
|
3.75
|
/
|
350*350*185
|
Package of warehouse lighting UFO high bay
|
Qty
|
Carton size
|
Lamp body
|
|
1PC/ Carton
|
405 X 405 X 180 (mm)
|
N.W： 3.5 kg
G.W： 4.3 kg
|
Installation of high space lighting UFO high light
1. When installing the lamp, the wiring and the connection are sealed to prevent leakage. Do not power on during the wiring process.
2. When connecting an external power cord, you must take corresponding waterproof and leakage-proof measures.
3. Do not violate any fire protection laws when using the lamp.
4. Please find a professional electrician for installation. The connection method of the 0.75 square three-core cable is: the brown wire is the live wire, the blue wire is the neutral wire, and the yellow-green wire is the ground wire.

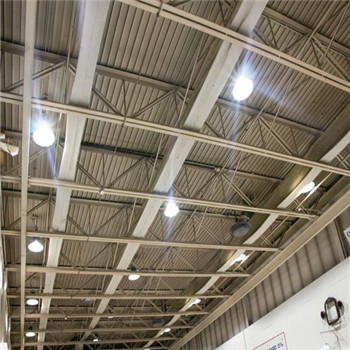

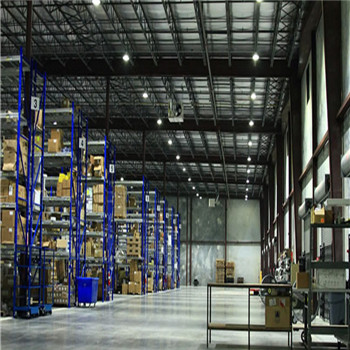

Application of Ik08 UFO high light 5 years warranty
-supermarket
-Large workshop
-Steel Plant
-Warehouse
-Gas station
-stadium
-Exhibition Hall
-Car waiting room
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
