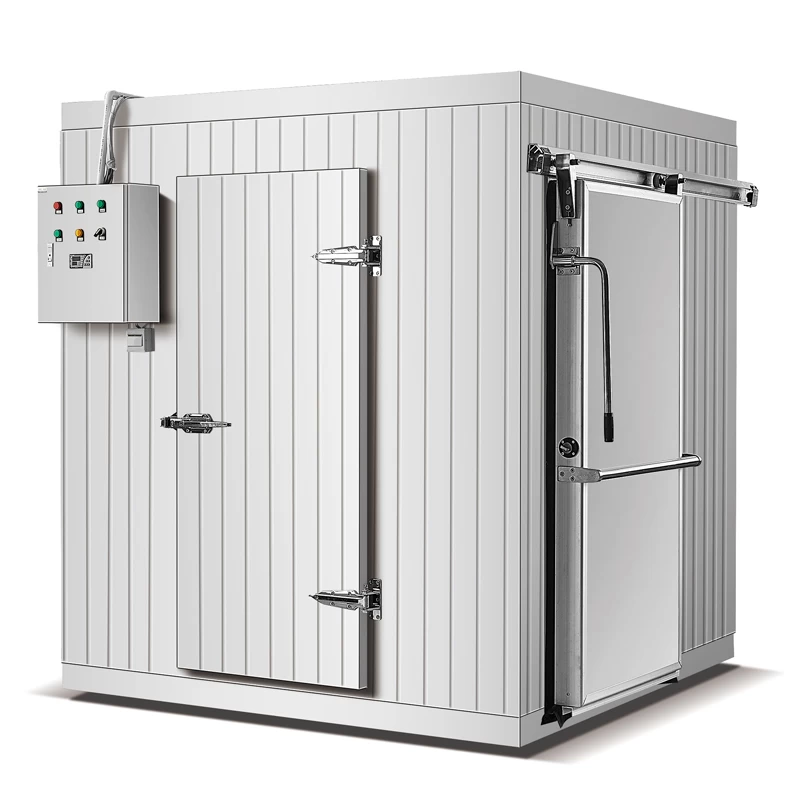

Regeneration Equipment Customize Size Deep Temperature Walk In Cold Room
Freezer
We are in the
position to accept orders according to customer's requirement and specialize in
designing, manufacturing, installing and debugging and maintaining cold room
refrigerator freezer project over 20 years experience, and our high quality freezer refrigerator products export
to many countries with first tech, high quality, best service, good reputation,
favourable price. Fruit or vegetable cold chamber can be made at any size.
♥Commercial Walk In Refrigerators Design Requirement
1.Outline
Dimension in metres (Length×Width×Height)?
2.The main
building to hold the room: steel structure,civil work structure or others?
3.Local voltage,
local frequency: 380V/3P/50Hz,or others.
4.The lowest and
highest temperature in construction site?
5.Product type:
meat, fruit,food or others?
6.Temperature of
product before stored into the cold room?
7.Indoor
temperature required?
8.Cooling time
required?
9.Numbers of time
to open and close to door per day?
10.Whether driving
forklift in the room?
♥Walk In Cold Room Freezer Application:
Food(meat,vegetable,fruit,dairy,drink,bread),
medicine, chemical,e lectronics, etc.
Functions:
fresh-keeping, air-conditioning are all available.
♥Specification:
1.refrigeration
system: Compressor, Condenser, evaporator, Refrigerant.
-- condensing
unit: bitzer, copeland, maneurop, fusheng. etc.
2.Electric
system:Siemens and Schneider electric components or others.
3.Insulation
panel:use 100%polyurethane insulation panel, density about 38~46kg/m3,with
gasket,with flame retardant, panel thickness:100mm~200mm, standard width of
panel is 980mm
1).Material:PU,
metal sheet.
2).Metal
sheet:Painted steel sheet,stainless steel sheet, aluminum or other.
3).Thickness of panel:75mm,100mm,120mm,150mm
etc.
4). Thickness of
cold storage panel temperature application.
Thickness of cold
storage panel
Application
temperature
50mm Temperature 5°C or above
75mm Temperature -5°C or above
100mm Temperature -5'C~-25°C or above
150mm Temperature -18'C~-45°C or above
200mm Temperature -55°C or above
♥.Cold Storage
Door:
1).Swing door and
sliding door for choice.
2).Swing
door:manual opened,automatic,etc.
3).Door board made
with special pressing technology PU material.
4).Door
frame:color steel or stainless steel.
5).Surface
material:color steel or stainless steel with protecting film.
We are specialized in Refrigeration Equipment manufacturing since 1986.
Various commercial refrigeration equipment like refrigerator freezer and commercial freezer you can choose here!
