We are professional power line choke coils factory, mainly for power line in and power out filter, power over internet transformers, EMI filters, DC converters in distributed power systems, radio interference suppression in motor, etc.
Quick Details
|
Part No: Power Line Chokes MCTQ23S
|
|
Brand name: MCT
|
|
Rated voltage 300 V AC
|
|
Custom made: Available
|
|
Rated current 0.7 ...2.3 A(+40 °C)
|
|
Logo: Can be customized
|
|
Rated inductance 10 ... 100 mH
|
|
Packing: Carton, can custom
|
|
Hi-pot Test voltage Vtest:2000 V AC, 2 s (line/line)
|
|
MOQ: Any quantity
|
|
PHENOLIC coil former (UL94 V-0)
|
|
OEM: Available
|
|
Sector winding
|
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
|
Certification: ISO9001,ROHS,CE
|
Part Information

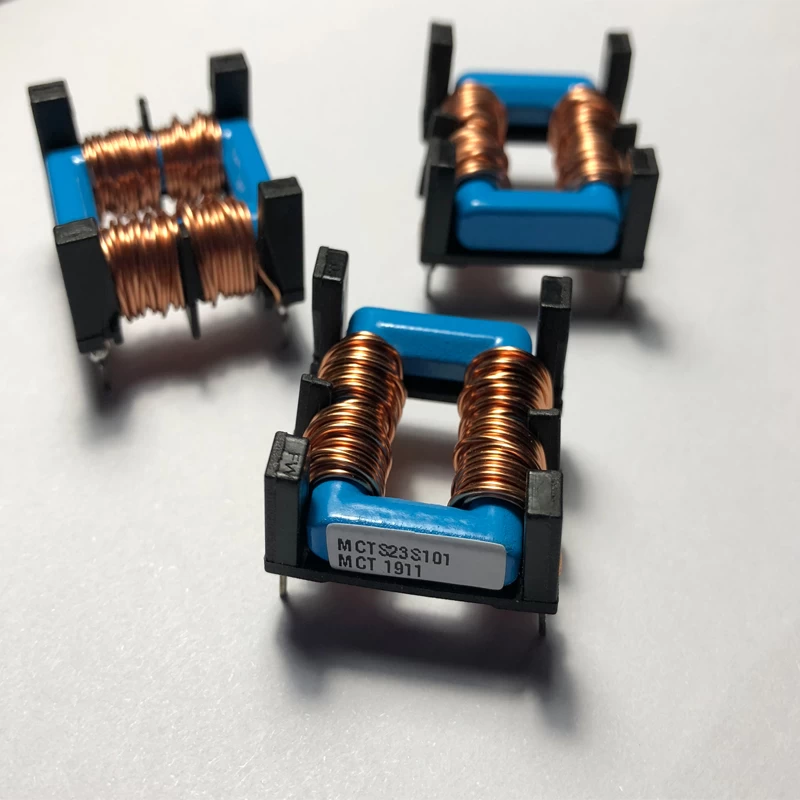

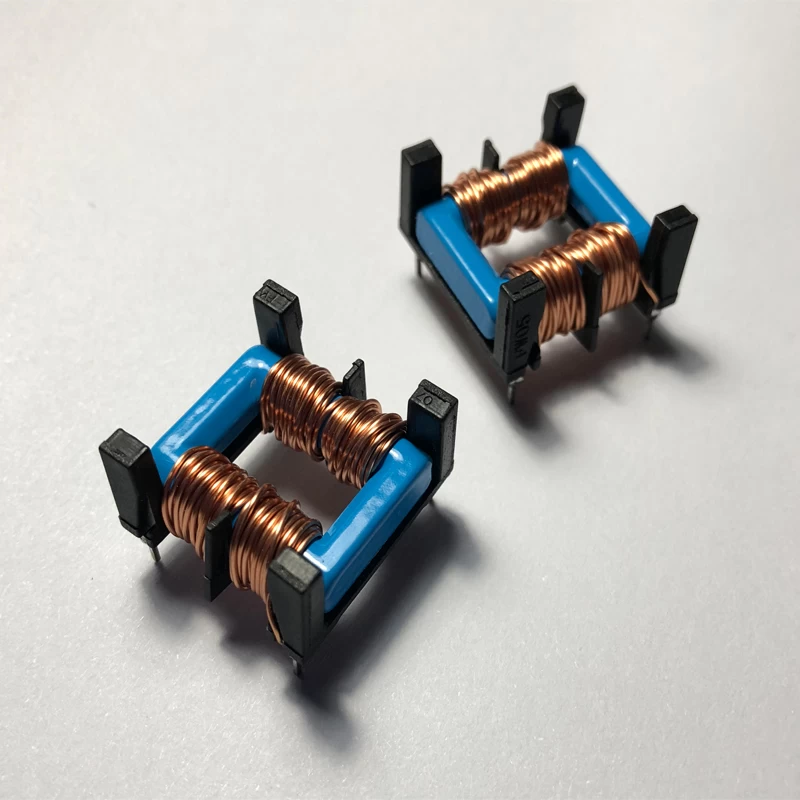

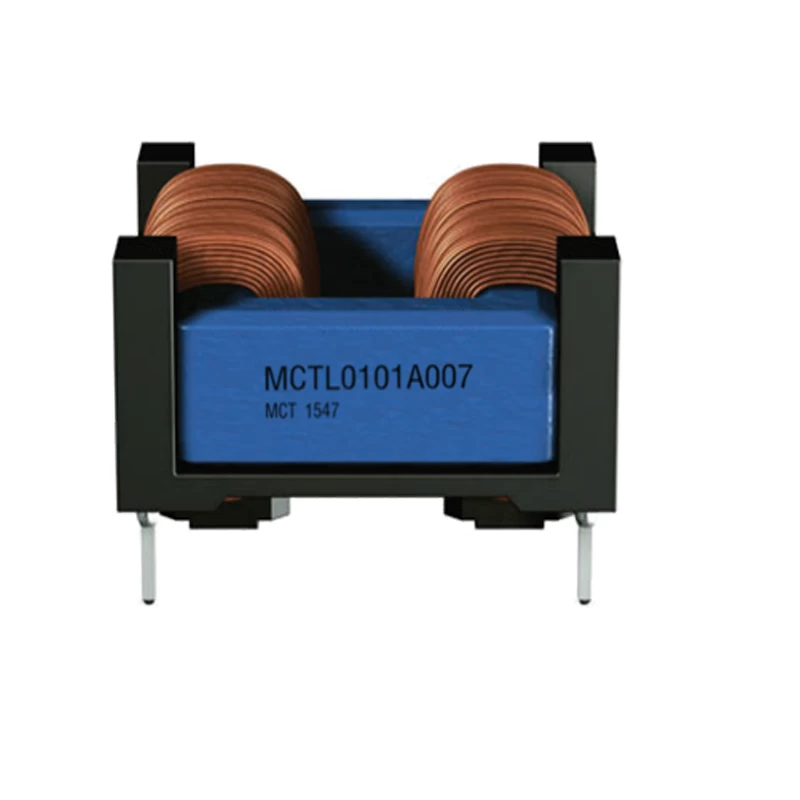

Product Name: Common Mode Power Line Chokes for PCB Mounting
Terminals: Base material CP wire. Hot dipped. Pins 0.64×0.64 mm. Lead spacing 20×22.6 mm
Product Construction: Current-compensated frame core double choke. Closed magnetic circuit with frame construction made of ferrite. 4-section winding with direct winding on the core. Clearance and creepage distances >4 mm
Applications
1.Switching power supplies. 2.Suppression of common-mode and differential-mode interference.3. Electronic ballasts for lamps. 4.High power switch-mode power supplies for consumer electronics. 5.High current DC/DC converters.
Product Specification

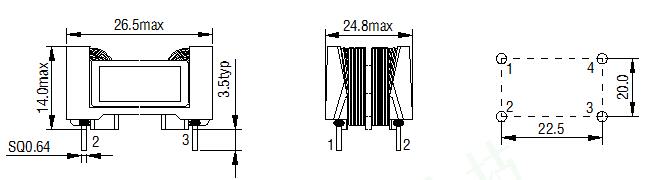

Dimensional drawing and layout recommendation
Technical data and measuring conditions
Rated voltage VR:300 V AC (50/60 Hz)
Hi-pot Test voltage Vtest:2000 V AC, 2 s (line/line)
Rated temperature TR:+40 C
Rated current IR:Referred to 50 Hz and rated temperature,see the data table
Rated inductance LR:Measured with LCZ1062 at 10 kHz/0.1 mA, +20°C.Inductance is specified per winding.
Inductance tolerance:
Solderability (lead-free):Sn96.5Ag3.0Cu0.5: +(245±5)°C, (3±0.3) s
Wetting of soldering area≥95%
Resistance to soldering heat(wave soldering)：+(260±5) °C, (10±1) s
Characteristics table
|
MCT PN
|
IR:A
|
LR:mH
|
Lstray typ：uH
|
DCR:mΩ
|
|
MCTQ23S102M
|
0.70
|
100
|
2100
|
1815
|
|
MCTQ23S682M
|
0.90
|
68
|
1440
|
1110
|
|
MCTQ23S472M
|
1.10
|
47
|
970
|
805
|
|
MCTQ23S392M
|
1.20
|
39
|
800
|
670
|
|
MCTQ23S272M
|
1.40
|
27
|
550
|
444
|
|
MCTQ23S152M
|
1.90
|
15
|
311
|
280
|
|
MCTQ23S101M
|
2.30
|
10
|
212
|
190
|
The core M10 with AL=4600±30% and M12 with AL=5000±30% can be selected.
Packing Details
We use: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Polystyrene tray, anti-static, in cardboard box)
We accept custom design, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
