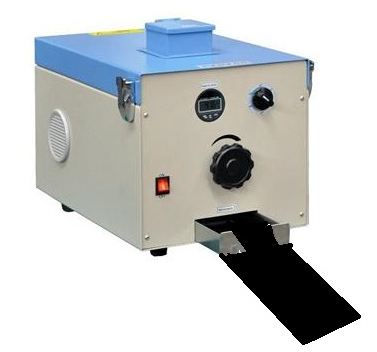

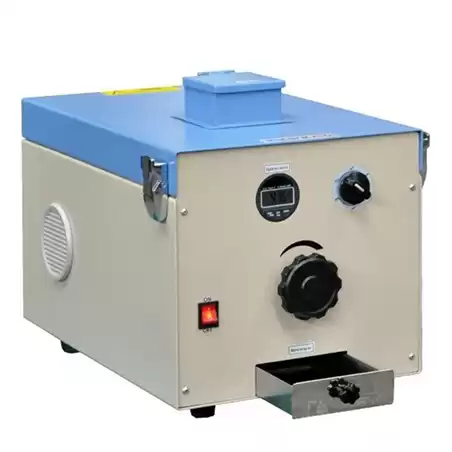

Compact Ceramic Jaw Crusher / Mill With Digital Size Control
Features
TMAX-SFM-ALO is a compact electric jaw crusher with adjustable digital crushing size controller. Two jaw plates are made of high purity alumina to avoid metallic contamination while crushing materials. It is useful to break up sintered blocks prior to ball milling and saves the researcher labor and time.
Specifications
|
Working Voltage
|
-
208 - 240VAC 50/ 60 Hz, 500W
-
(110 AC version will be included 800W transformer at $80 extra)
|
|
Crushing Speed
|
400 times per minute
|
|
Timer
|
0 to 60 minutes adjustable
|
|
Jaw Plates
|
-
Two high purity alumina plates
-
Easy to clean. (The sample inlet and outlet are made of stainless steel and so you can clean with a brush.)
-
90mm x 25mm loading port
|
|
Crushing Size
|
-
Input:
-
Material Hardness must be < Mohs 8
-
Sample size: 5 - 20 mm diameter or thickness
-
~ 200 g of input materials can be added at once
-
Output:
-

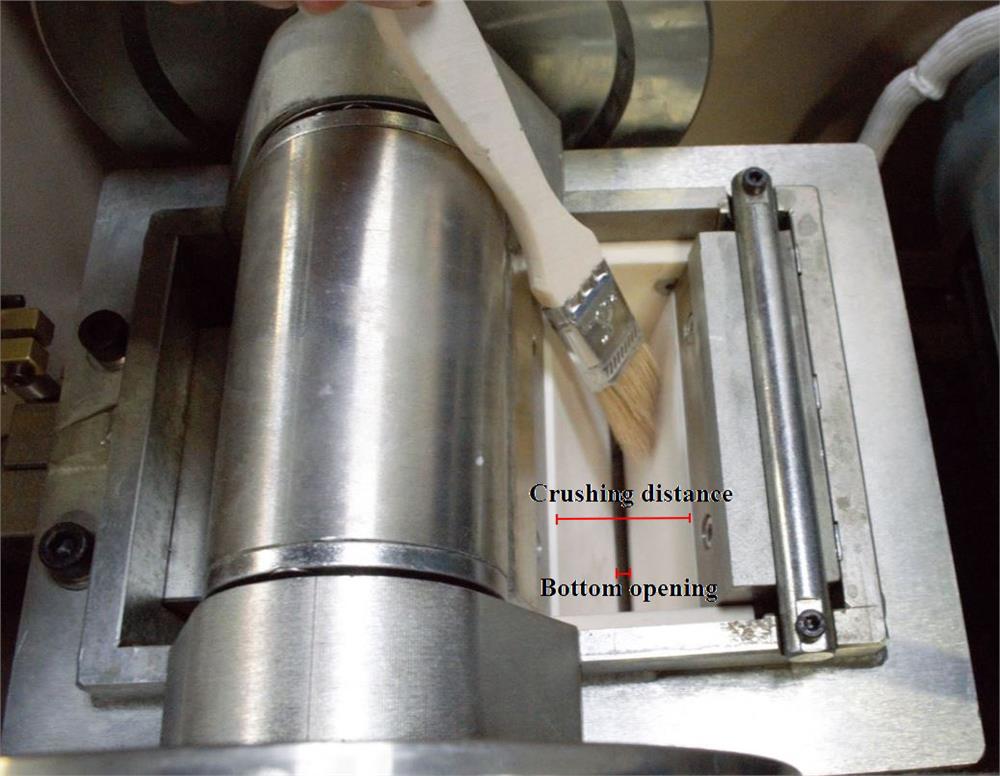

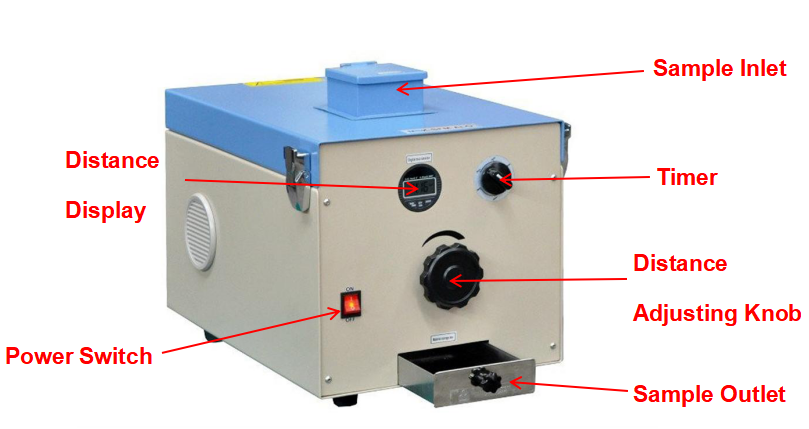

Output size : 0.1 mm - 3 mm (adjustable via a digital micrometer).
-
Crushing quantity: ~ 200 g is accepted by underneath drawer each time.
-
Use a slide plate instead of the drawer, continuous output of samples can be achieved with continuous feeding of input materials. ( Sliding plate is optional at $200 extra )
-
Output grain size depends on the material properties (Hardness, elasticity, etc.)
|
|
Net Weight
|
150 lbs
|
|
Shipping Weight
|
185 lbs
|
|
Dimensions
|
L325mm×W500mm×H310mm
|
|
Compliance
|
CE certified
|
|
Warranty
|
One year’s limited warranty with lifetime technical support
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
