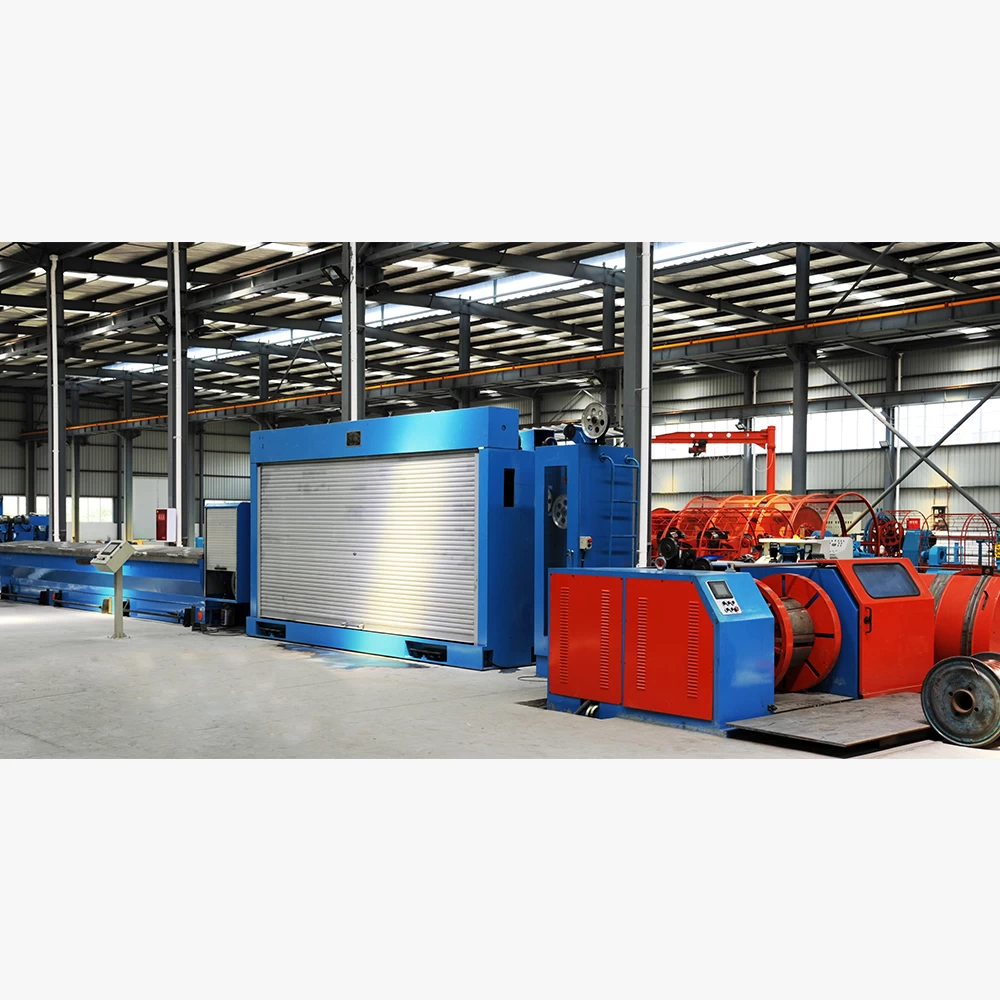

Compact Coiler Type JSM-1000
Product Description:
This automatic coiler is designed to wind wire into strapped coils. A dancer assures smooth and reliable transfers. The wire coils are unloaded safely from the front side of the machine at a convenient height for the operator. The unloading door is opened while protecting the operator from the winding side of the machine. Automatically coil ejection onto a trolley or reception table available.
Versions of the coiler include either a built-in cutter or without when an external cutter or saw is employed.
Specification Parameters:
Diameter of wire
|
1.2-3.5mm standard soft
|
|
Max. mechanical speed
|
1500m/min
|
|
Main motor power
|
45KW
|
|
Traversing motor power
|
1.0KW
|
|
Motor power for hydraulic station
|
2.2KW
|
|
Standard spool size
|
∮1000*∮610(∮525)*590*∮170mm
|
|
Standard spool capacity
|
220kg
|
|
Power voltage
|
50v
|
Power frequency
|
50Hz
|
|
Overall dimension
|
2650*1850*1510mm
|
Features:
1. Trunk take up machine is used behind the wire drawing machine for continuous, uninterrupted production and increasing the productivity.
2. Trunk take up machine with non-rotation drum enabled the finished wire to be taken out continuously.
3. The equipment is very suitable for taking up high intensity wires after drawing.
4. Compared with common take-up machine, it has an additional calibration module that the straightness of steel wire is improved.
5. Its capstan applies water cooling and air cooling, water cooling for calibration module can improve the quality of wire.
In 2003, Ito-sin(DeYang) Wire & Cable Equipment Co., Ltd. was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members.
Application:
It is applicable to annealed soft copper wire, hard or soft aluminum wires, and coated finished wires. With an independent coiling system, it is capable of working in conjunction with any rod breakdown machine and annealer.
FAQ:
Q1. What information should I let you know if I want to get a quotation?
A: Item Name,Size,Initial Quality you require.
Q2. How to make the payment?
A: T/T
Q3. When will you deliver the machine?
A: Delivery Time for 30-40 days.
