Compact Lab Coin Cell Disc Cutting Machine for Battery Separator Punching
This machine is a compact disc cutter with quality sliding rail with ball bearing forbattery separatorprecision cutting. It can be easily placed into a glove boxvia a transition chamber which the diameter larger than 230mm.

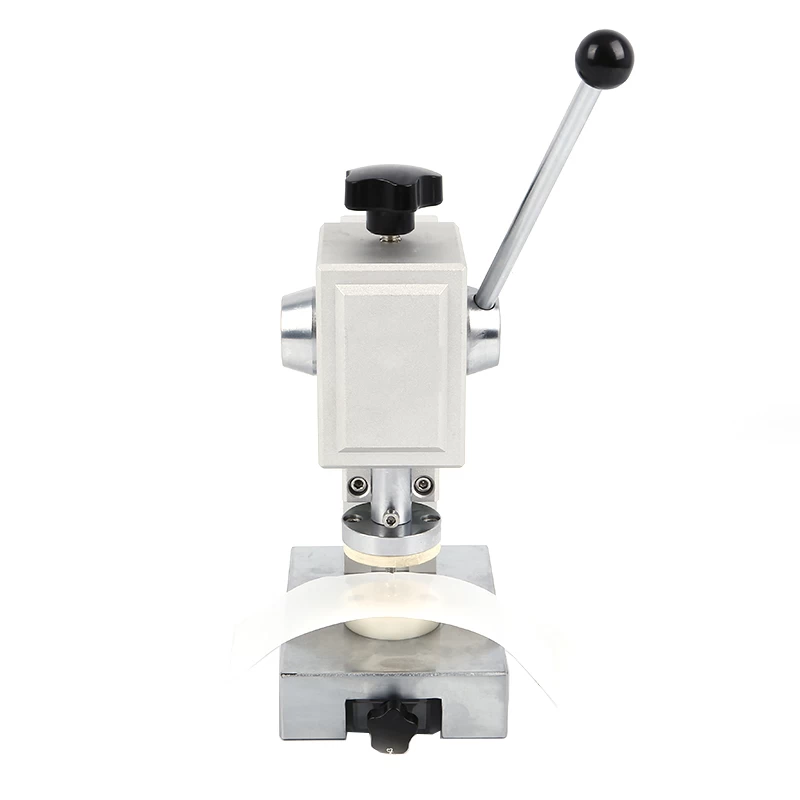

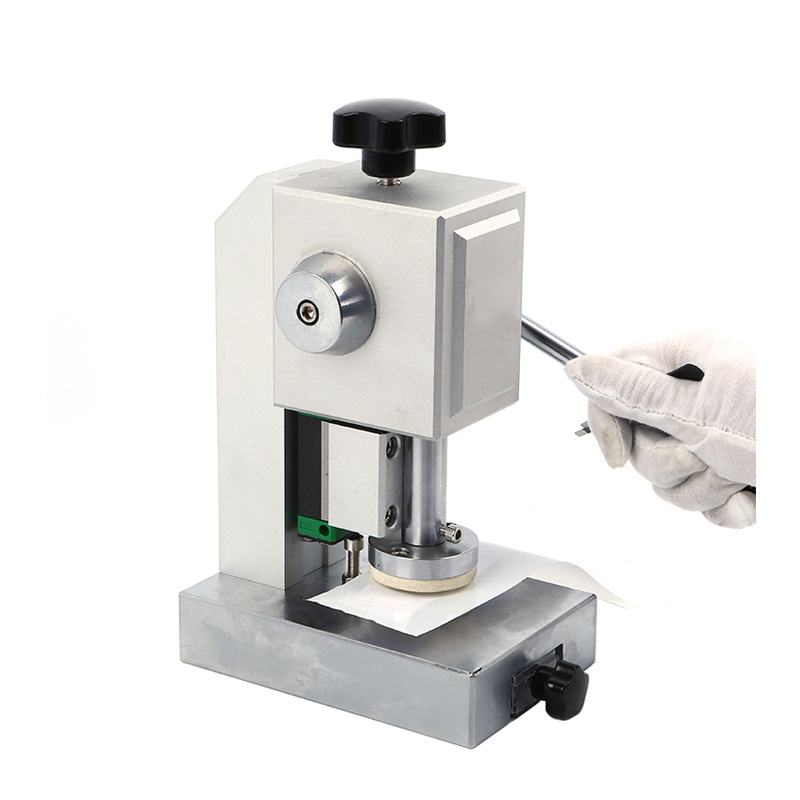

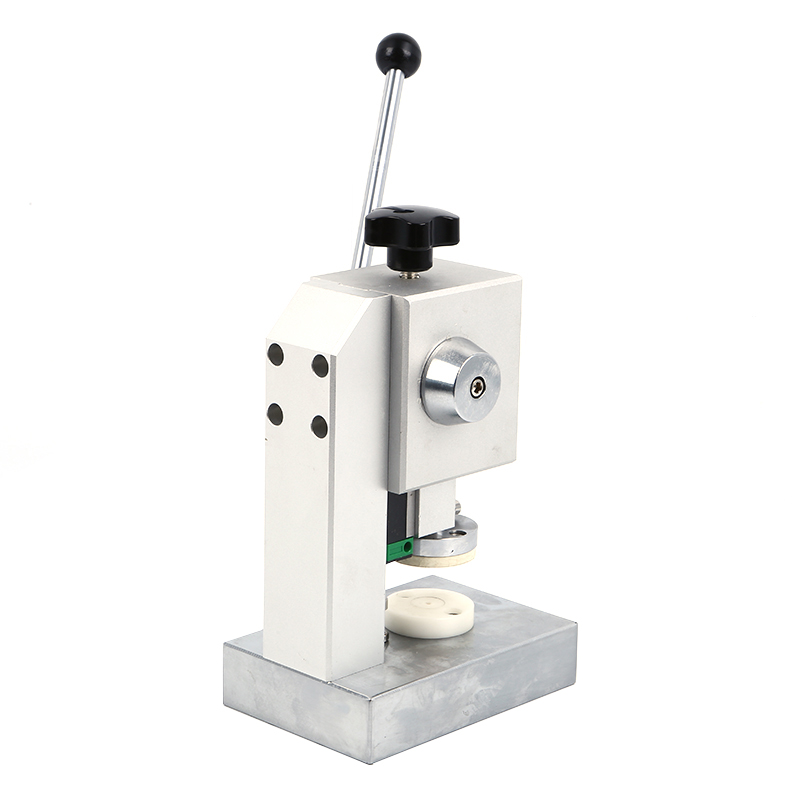

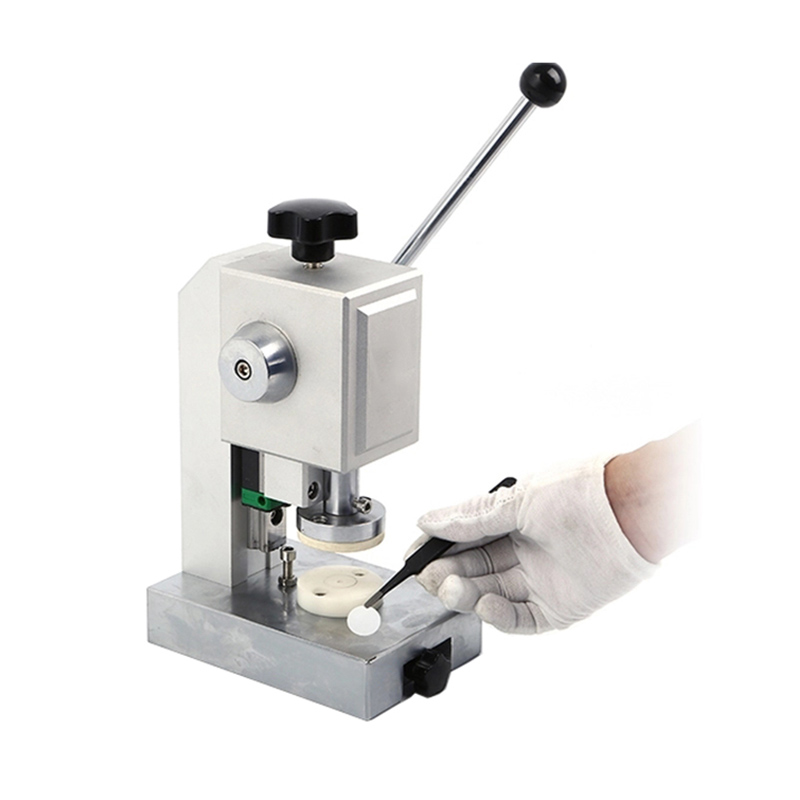

This tool is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). Thefinished discs can be used as electrode andseparator discsfor split test cell and coin cell, it is good for battery researchers as well as TEM sample preparation.
Features :
1. High accuracy ,no burrs,rags and dents .
2. It can cut various of battery materil with thinkness 0.005-0.5mm .
3. Small dimension, convenient operation, quick and flexible use into glovebox.
4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.
|
Machine model
|

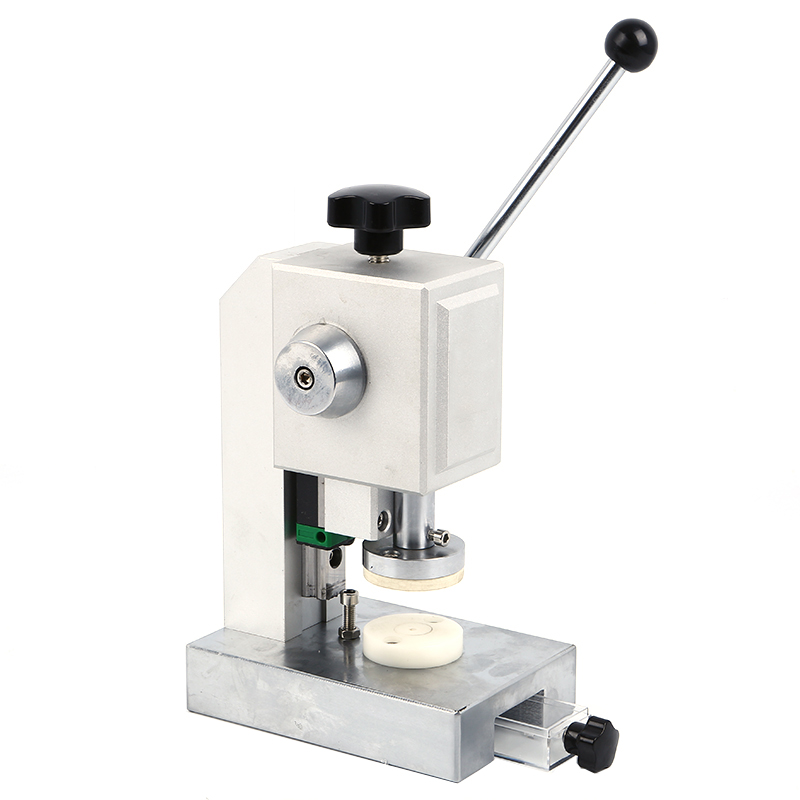

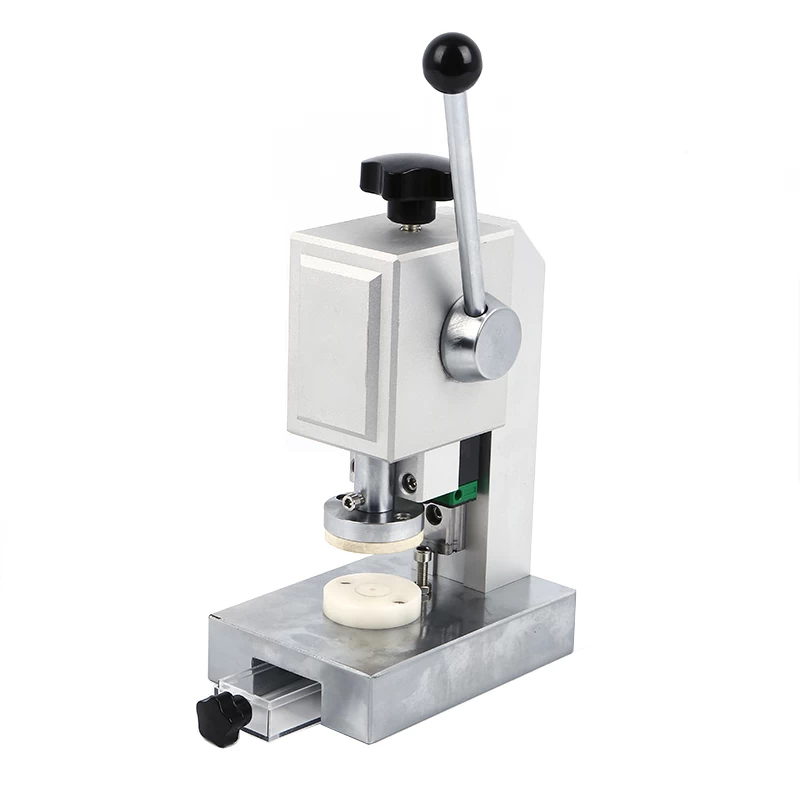

Disc cutter for coin cell battery separator punching AOT-DC60
|
|
Operating
|
Manual/Hand press
|
|
Punching size
|
Standard configuration: 15mm diameter die for electrodepunching and19mm diameter die for separator cutting. (φ6-24mm customized)
|
|
Application Notes
|
For make CR2016, CR2025 and CR2032 coin cell batteries,
we will need at least three cutting dies:
A 15mm (for negative side case, which is 16.5mm in diameter)
B 19mm (for positive side case, which is 20mm in diameter)
C 20 mm (for separator to fully separate the electrodes)
For CR2450 coin cell:
20mm cutting die can be used for cutting electrode discs and the
24mm cutting die for either electrode or separator disc.
|
|
Punching stroke
|
25mm
|
|
Punching thickness
|
0.005-0.5mm electrode and separator
|
|
Advantages
|
Easy operation
Compact size and light weight
Can both cut electrode and separator by changing the cutting die
|
|
Dimension
|
110*150*235mm
|
|
Weight
|
About 7kg
|
|
Warranty
|
One Year
|
