Descriptions

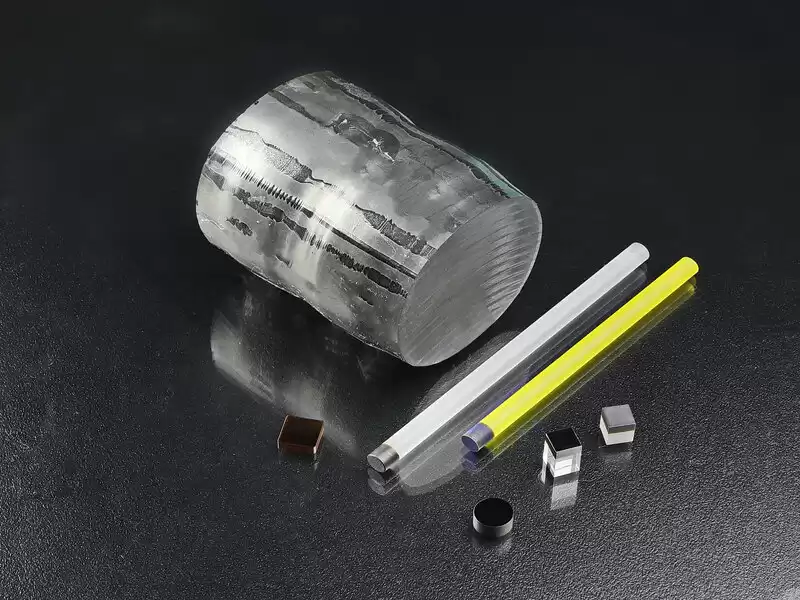

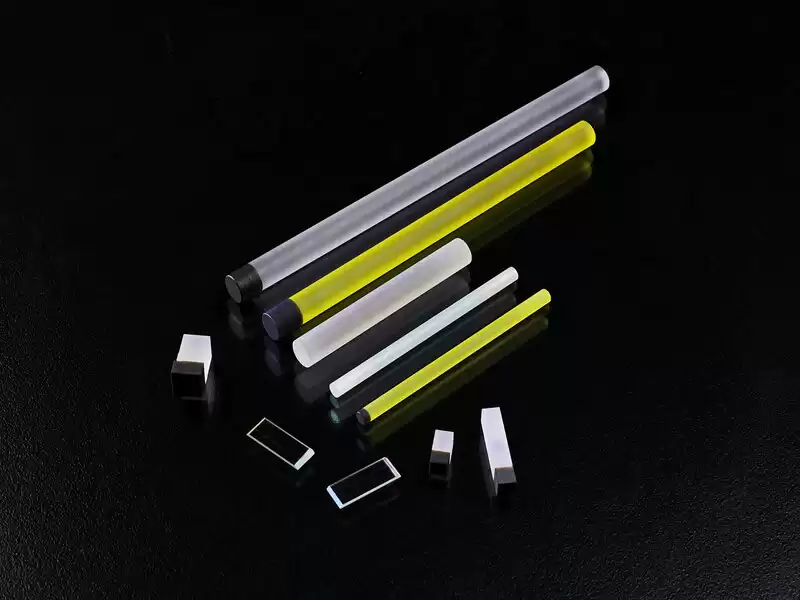

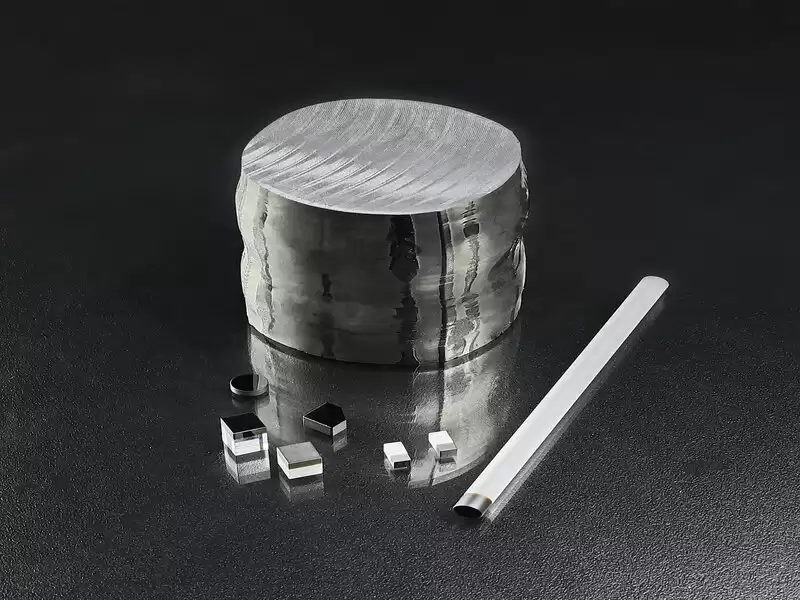

Diffusion Bonded
Crystals largely reduce thermal lens effect of laser crystals, provides
integral components to make compact lasers.
Diffusion bonding process:
1) Perfect optical contact between the crystals to be bonded;
2)Heating up of the two parts very slowly , to a very high temperature, probably 2/3 of the melt temperature or more, and exerting pressure to press the two parts together;
3) Keeping the bonded crystals for certain period of time at this high temperature, so that diffusion takes place;
4)Slowly cooling the crystals (24 hours) down to room temperature.
Product Serials:
1) YAG+Nd:YAG+ Cr4+:YAG; YAG+Nd:Ce:YAG+Cr4+:YAG; YAG+Yb:YAG+Cr4+:YAG
2)YVO4+ Nd:YVO4 + YVO4; GdVO4+ Nd:GdVO4 + GdVO4; YAG+Nd:YAG+ YAG
3) YLF+Nd:YLF+ YLF; YLF+Pr:YLF+ YLF
4) YAG+Ho:YAG+YAG; YAG+Tm:YAG+:YAG
5) Tisapphire+Tisapphire
Diffusion bonding for other crystal assambly types are also available.
Advantages:
1)To improve and enchance thermal the thermal performance;
2)Lower thermal lens effect of end surfaces.
3)Increase the output power of laser crystals
Main applications:
1)Industrial laser;
2)Biomedical laser/Medical laser;
3)Beauty laser;
4)Laser Lidar
5)Laser ranger finder
6)High power laser system etc.
Specifications:
|
Flatness
|
λ/10 @ 632.8nm
|
|
Wavefront distortion
|
λ/10@ 632.8nm
|
|
Surface Quality
|
10/5 per MIL-O-13830A
|
|
Parallelism
|
10″
|
|
Perpendicularity
|
5′
|
|
Bevel/Chamfer
|
<0.1mm@45deg
|
|
Chips
|
<0.1mm
|
|
Clear Aperture
|
>95%
|
|
Quality Warranty Period
|
One year under proper use
|
|
Coating
|
AR/HR/PR (IAD, EB, IBS)
|
|
Delivery Time
|
5-6 weeks
|
Why Choose HGO ?
HG OPTRONICS.,INC. is one of the earliest diffusion bonding crystals manufactures in China. Based on advanced bonding technology , wide experiences and techniques upgrading in the past over 13 years, HGO have become a top diffusion bonding crystals supplier. HGO has ability to provide different bonding configurations and various product structure for different laser systems and applications.
We are also interested in discussing and manufacturing new material combinations and structural geometries. Our goal is to provide high-quality composite materials that can provide solutions to your system needs, so we encourage all design submissions. Please contact us for more information and technical support.
