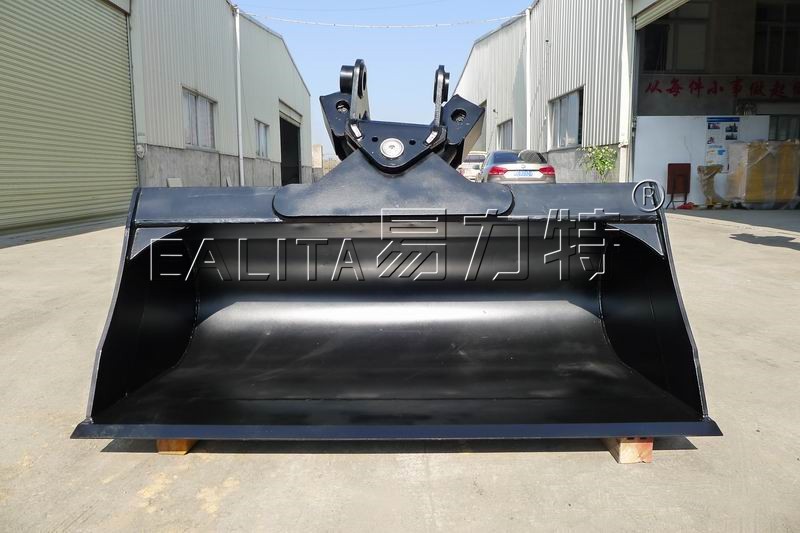

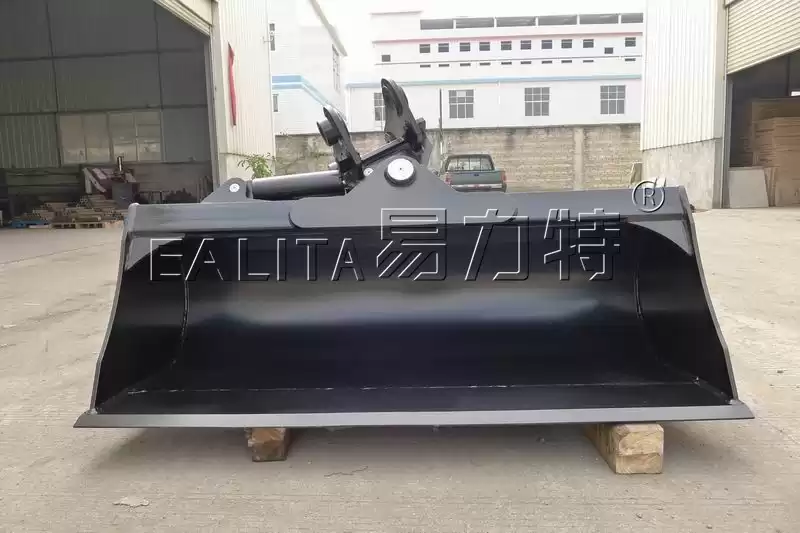

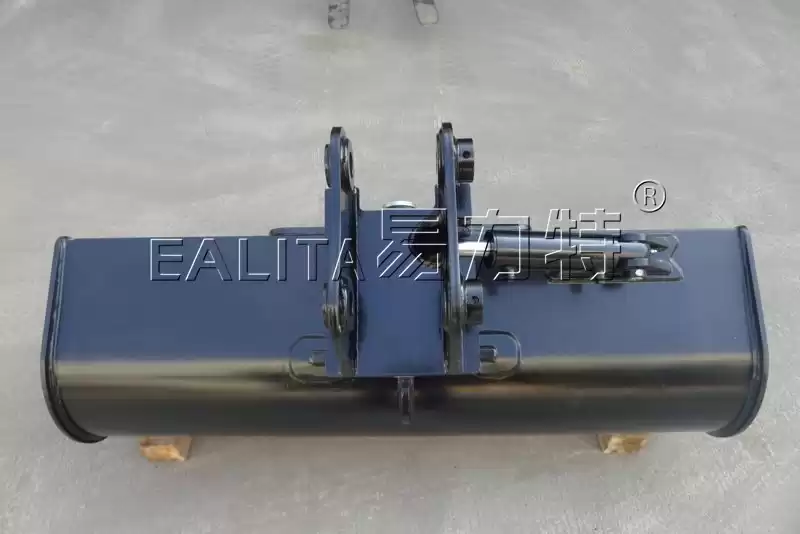

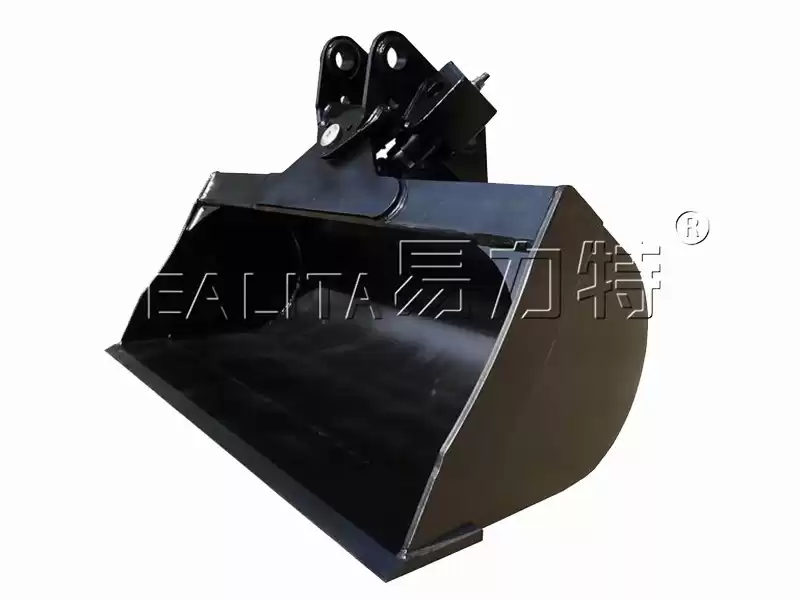

TheTilt Bucket is generally used in clean up, ditching or grading applications.
- Large tilting range of 2 x 50°
- Compact bucket shape for narrow ditches
- Sturdy and wear-resistant: Lehborit 5000 (500HB) cutting edge and side cutting edge
- Including hydraulic cylinder, pressurizing valve and hoses up to the tilting head
- With Lehmatic adapter, Symlock adapter or direct suspension
Specification
|
Type
|
Code
|
Capacity
|
Size WxDxH
|
Weight
|
|
E-TB1.5
|
03.05.17.0002
|
1500kg
|
925x414x390mm
|
98kg
|
|
E-TB2.0
|
03.05.17.0004
|
2000kg
|
1025x421x449mm
|
104kg
|
|
E-TB3.0
|
03.05.17.0006
|
3000kg
|
1225x442x461mm
|
143kg
|
|
E-TB4.0
|
03.05.17.0008
|
4000kg
|
1425x543x541mm
|
193kg
|
|
E-TB5.0
|
03.05.17.0011
|
5000kg
|
1525x604x626mm
|
276kg
|
|
E-TB6.0
|
03.05.17.0014
|
6000kg
|
1625x604x626mm
|
289kg
|
|
E-TB12.0
|
03.05.17.0016
|
12000kg
|
1825x839x868mm
|
624kg
|
