Compact Disassembling Machine for 18650, 26650, 32650 Cylindrical Cell Cases
SPECIFICATIONS

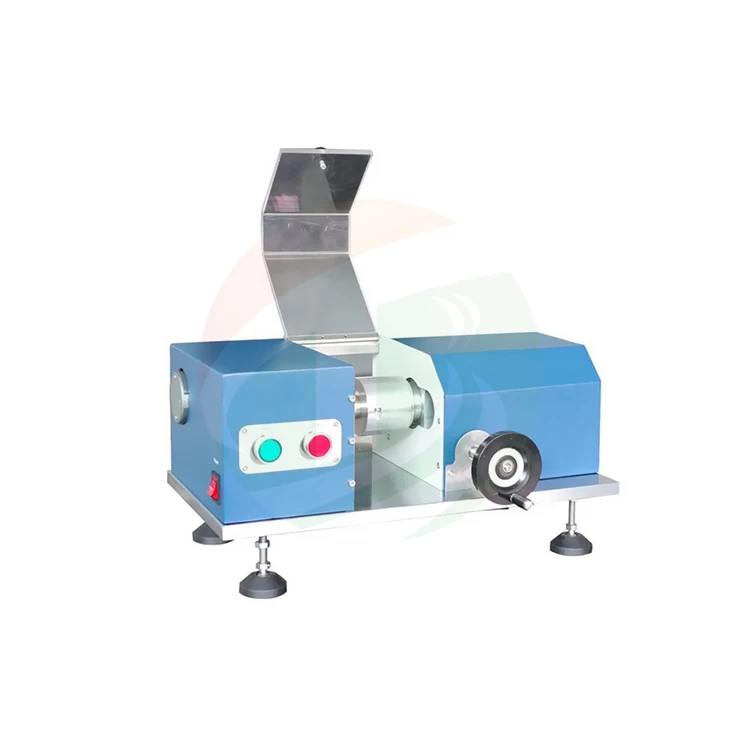

MSK-530 is a compact manually-operated machine for disassembling cylinder cases in battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with safety protection cover allows customers to master the disassembling procedure within 5 minutes
|
Model
|
18650 cylindrical cell disassembling machine MSK-530
|
|
Supply Voltage
|
AC220V Single phase
(110VAC available with a transformer)
|
|
Power
|
100W
|
|
Slicing Motor Speed
|
1000 rpm
|
|
Die Rotating Speed
|
1000 rpm
|
|
Micrometer Accuracy
|
0.05mm
|
|
Warranty
|
One year limited with lifetime support
|
|
Product Dimensions
|
480mm(L) x320mm(W) x 230mm(H)
|
|
Accessories
|
Standard disassembling die for 18650 case.
Additional die sets available for 26650 and 32650 as option.
|
|
Net Weight
|
35 kg
|
|
Shipping Weight & Dimensions
|
100 lbs; 40"x20"x20"
|
