compact size UL listed 100w 12v led driver triac/0-10v dimmable
Hidea's UL Listed 100w 12v led driver are among the high quality in the market and are built to last. The power supply is used to convert AC voltage from the wall to low voltage to power Flexfired LED strip lights.
- Size230*70*43mm
- Shape & SizeStandard Size
- Output Voltage12/24Vdc
- Output Power(Watt)100W
- Input Voltage100-277Vac
- Working ModeConstnat Voltage LED Driver
- Dimming Mode5 in 1 Dimming
- Weight1100g
- CertificationUL/CUL
- Warranty7 Years

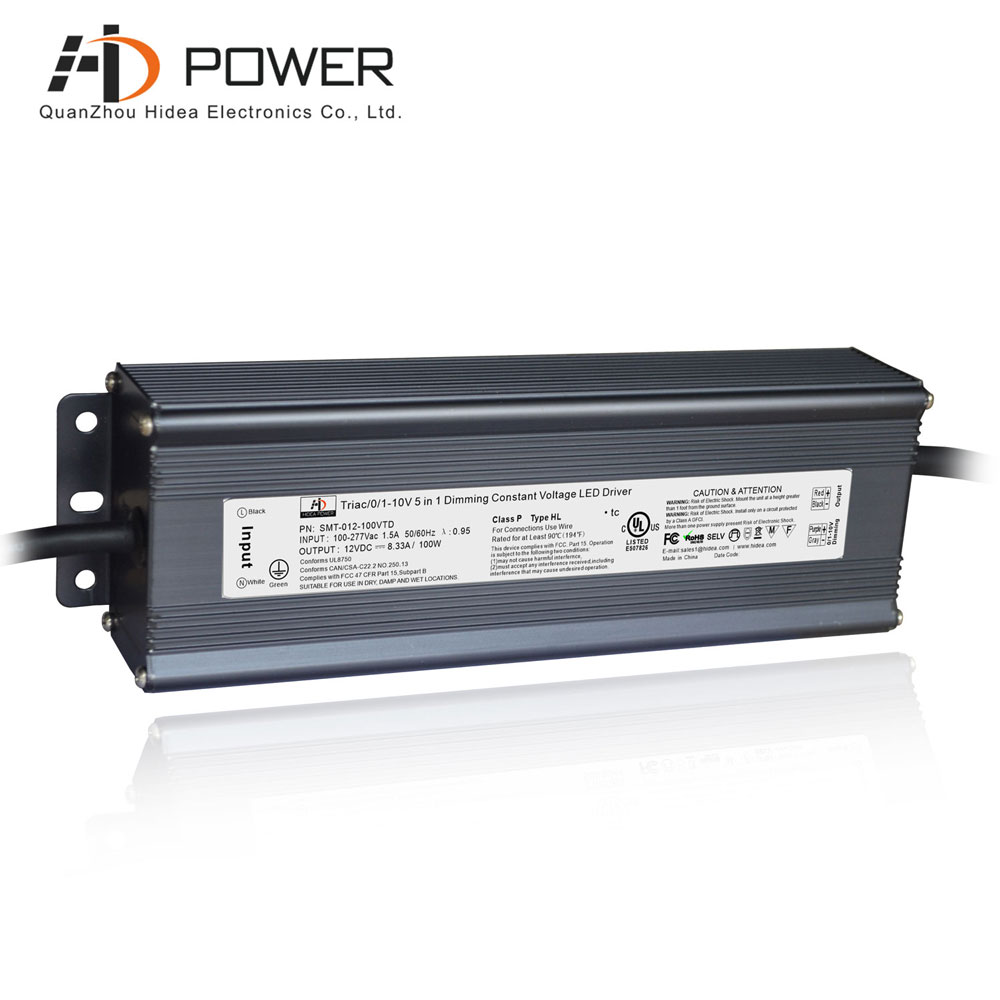

SMT-012-100VTD 5 in 1 dimming 100w 12v led driver is small and can be hidden in Heralightingunder cabinets, inside cabinets, behind the sofa, or under a desk. UL Listed ensures that it is a safe and long lasting led driver.
Specification
model | SMT-012-100VTD | SMT-024-096VTD | |
Output | DC Voltage | 12V | 24V |
Voltage Accuracy | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Rated current | 8.33A | 4.0A | |
Rated power | 100W | 96W | |
Input | Voltage Range | 100~277V AC | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | 0.99@120VAC 0.96@277VAC | 0.98@120VAC; 0.95@277VAC | |
THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
Full Load Efficiency(Typ.) | 80%@120VAC 83%@277VAC | 83%@120VAC 86%@277VAC | |
AC Current(Typ.) | 1.4A | ||
Inrush Current (Typ.) | 20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
Over Loading | ≤120% constant current limiting, auto-recovery | ||
Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
Working Humidity | 20 - 95%RH,non-condensing | ||
Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety&EMC | Safety standards | UL8750 + UL1310, class 2 CAN/CSA-C22.2 No.250.13 | |
Withstand voltage | I/P-O/P:1.88KVac | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
Others | Net Weight | 1.1Kg | |
Size | 230*70*43mm(L*W*H) | ||
packing | Carton size: 340*275*170mm , 10PCS/ctn | ||
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature. | ||
2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
Compatible Light Type
Configure 12V UL certified 100w 12v led driver, with short circuit protection and fire protection, the led strip lights be used for various indoor scene decoration and mood lighting such as bar-party-bedroom-living room-kitchens-ceilings-TV backs-PC- stair, etc...
