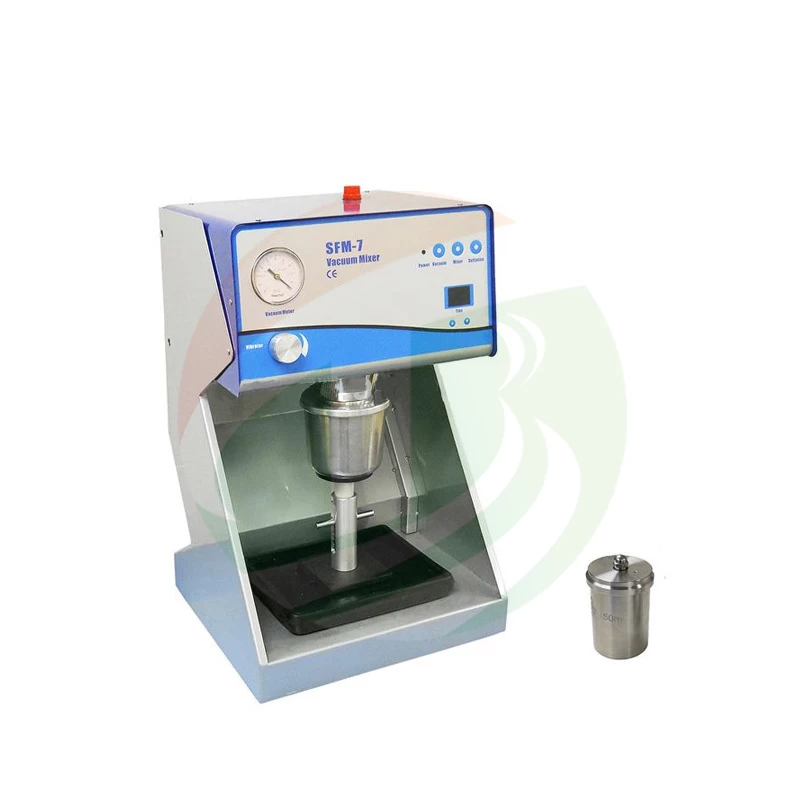

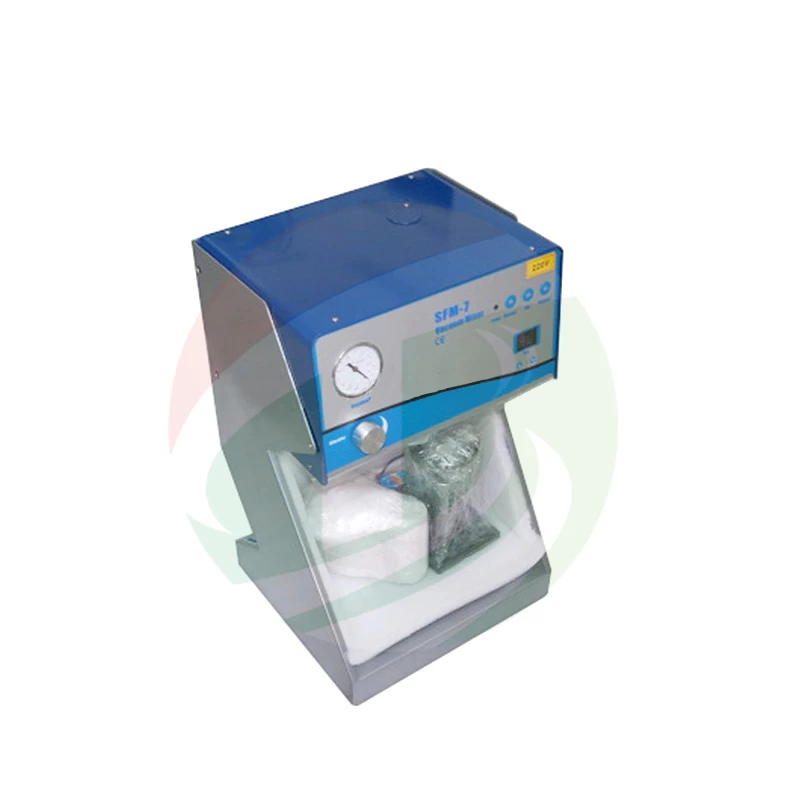

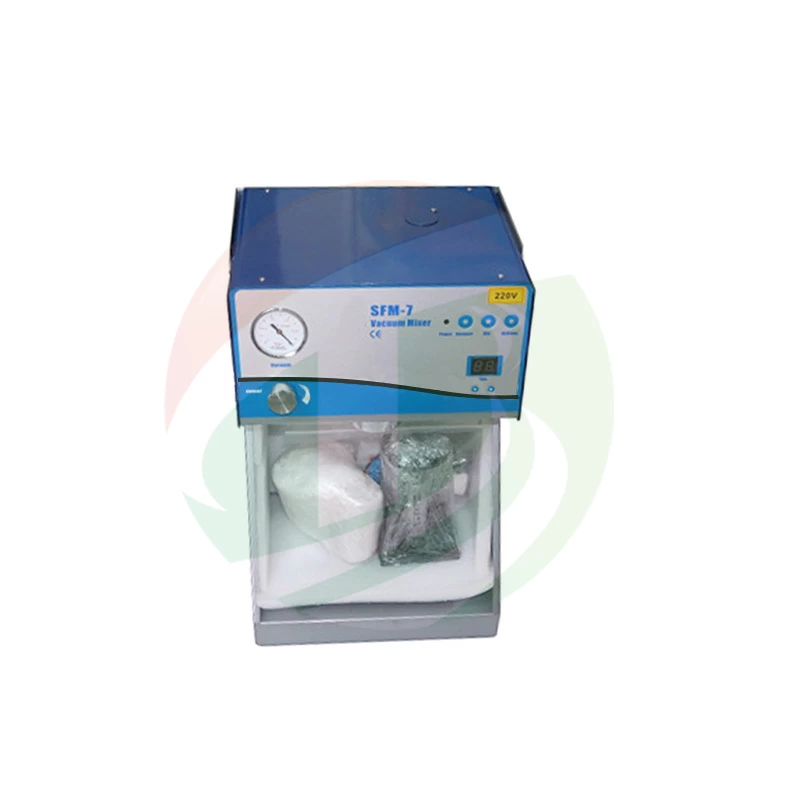

Desk-Top Stepless Speed Variation Vacuum Mixer 150ml and 500ml with Build-in Vacuum pump
SPECIFICATIONS
1 TOB-SFM-7vacuum mixeris and laboratory vacuum mixing machine designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.
2 Thisvacuum mixeris with build-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed at 320rpm. So we don’t need to connect with vacuum pump separately.
3 The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing.
4 It is excellent for preparing battery electrode paste and various ceramic materials in research lab.
|
Model
|
Vacuum mixer TOB-SFM-7
|
|
Voltage Input
|
Single Phase 110VAC or 220VAC, Customized
|
|
Power
|
150W
|
|
Power plug
|
Supply with required power plug according to different country
|
|
Rotary Speed
|
320 rpm
|
|

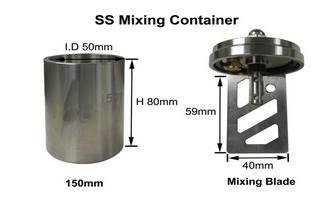

Mixing Container
|

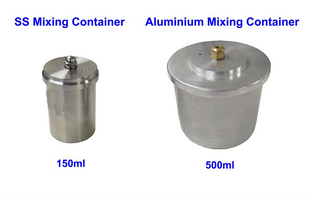

Two vacuum sealed containers are included.
One 150ml stainless steel and one 500ml aluminum

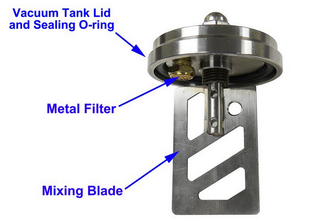

Mixing blade is built in top of cover of container.
|
|
Vacuum pump & Vacuum Level
|

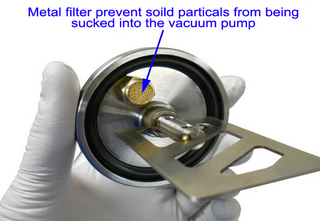

Built in single stage vacuum pump
Vacuum Level: -0.08~0.09 Mpa
|
|
Vibration Plate
|
Vibrating at 1000 HZ
|
|
Dimensions (L*W*H)
|
13''L x 12''W x 21''H, 330*310*510mm
|
|
Shipping Dimensions
|
16''L x 19''W x 24''H, 420*500*600mm
|
|
Net Weight
|
70 lbs, 30kg
|
|
Compliance
|
CE certified
|
|
Application Notes
|
Please note that the main duty of this product is to remove the bubbles from the slurry
during the wet mixing stage.
For the best mixing uniformity, please select our professional Vacuum mixer
TOB-VM-MRX system or vacuum planetary disperse mixer TOB-VPM-HJ system
|
|
Warranty
|
One year limited with lifetime support
|

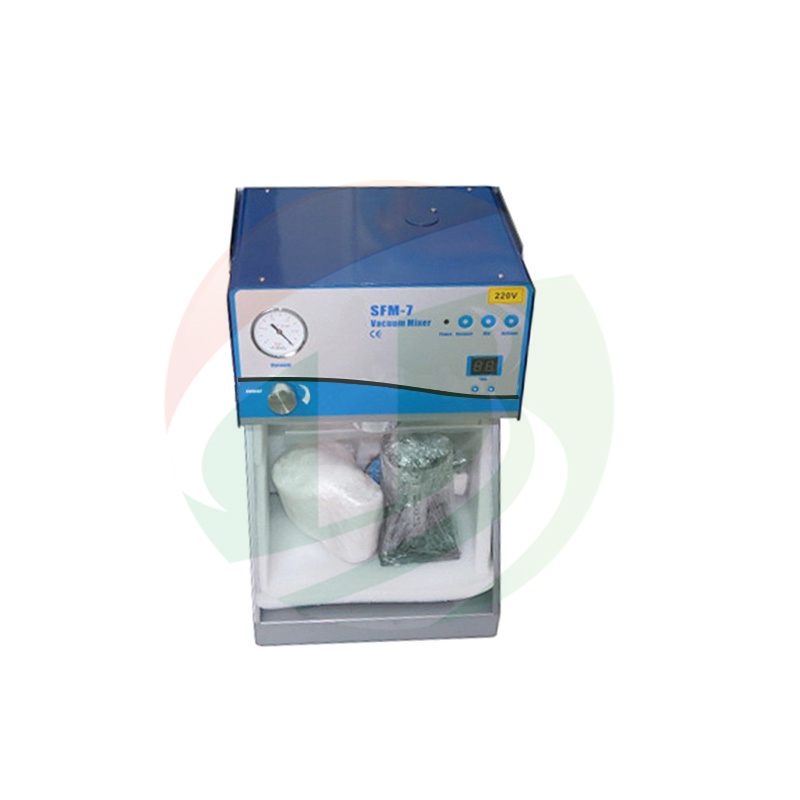

PRODUCT DISPLAY
