Battery Making Machine For Vacuum Pre-sealing and Final Sealing
SPECIFICATIONS

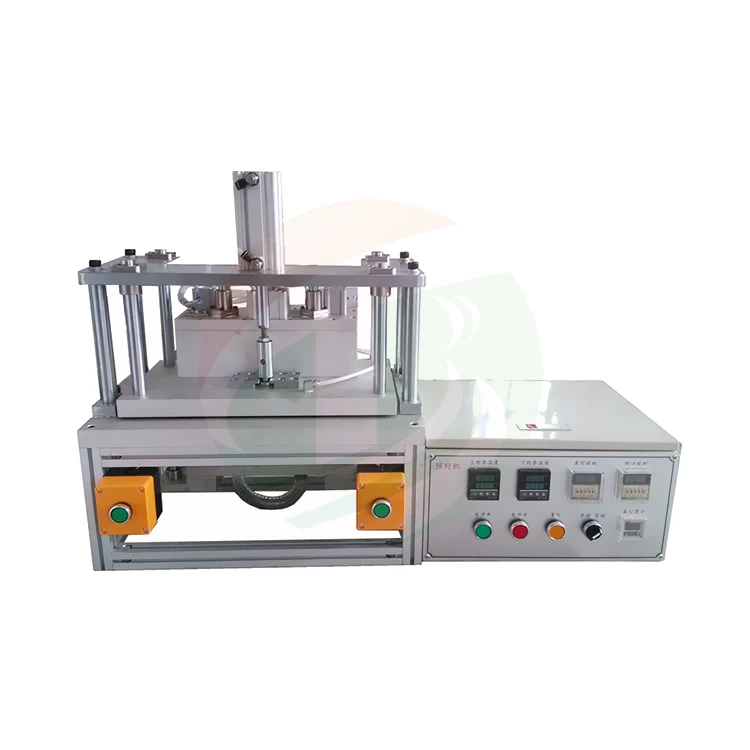

TOB-JD400 compact vacuum sealer is mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell.The flat sealing head can also suitable for final vacuum sealing after battery formation.
|
Model
|
Compact Vacuum Sealer TOB-JD400
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
1500W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Vacuum degree
|
-95Kpa - 0
|
|
Sealing head TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±1.5℃
|
|
Sealing pressure
|
0-7Kg/cm2, adjustable
|
|
Sealing time
|
0-99s, adjustable
|
|
Sealing width
|
5mm, customized
|
|
Sealing head length
|
400mm
|
|
Air source
|
0.5-0.7MPa (72.5-102psi)
|
