Truck description:
CNCSC Garbage compactor truck (also named as dump cart,garbage truck,Compressed garbage truck , dirt-wagon; dust cart,trash truck,rubbish truck,bin trucks,waste compactor)is a special purpose vehicle used to transport all kinds of garbage in municipal sanitation department.
Advantage:
1.High pressure, good sealing, convenient operation and safety.
2.High compression ratio and large loading capacity
3.Computer control system to reduce the labor intensity of sanitation workers, and greatly improve the working environment.
4.Good economy: when the special equipment works, the computer control system automatically controls the throttle.
Technical Specification:
We are able to custom manufacture Garbage compactor truck in a wide range of sizes and capacities as per customers' requirement.
|
8 m3 Compactor Garbage truck Donfeng
|
|
Truck Description
|
Driving type
|
4X2
|
|
GVW (kg)
|
10500
|
|
Kerb weight (kg)
|
6100
|
|
Overall dimension (mm)
|
7180*2200*2450
|
|
Chassis Details
|
Chassis brand
|
Donfeng Kinland
|
|
Number of axles
|
2
|
|
Type of fuel
|
Diesel
|
|
Emission standard
|
Euro III
|
|
Engine brand
|
Chao cai power
|
|
Horse Power
|
120HP / 88 KW
|
|
Displacement
|
3856 ml
|
|
Transmission
|
Five speed
|
|
Wheelbase (mm)
|
3800
|
|
Tyre
|
7.50R-16 / (6+1)pcs
|
|
Air conditioner
|
Equipped
|
|
Superstructure
details
|
Capacity
|
8m3
|
|
Box material
|
Carbon steel
|
|
1.Hydraulic configuration:hydraulic system maximum pressure 16MPa;
|
|

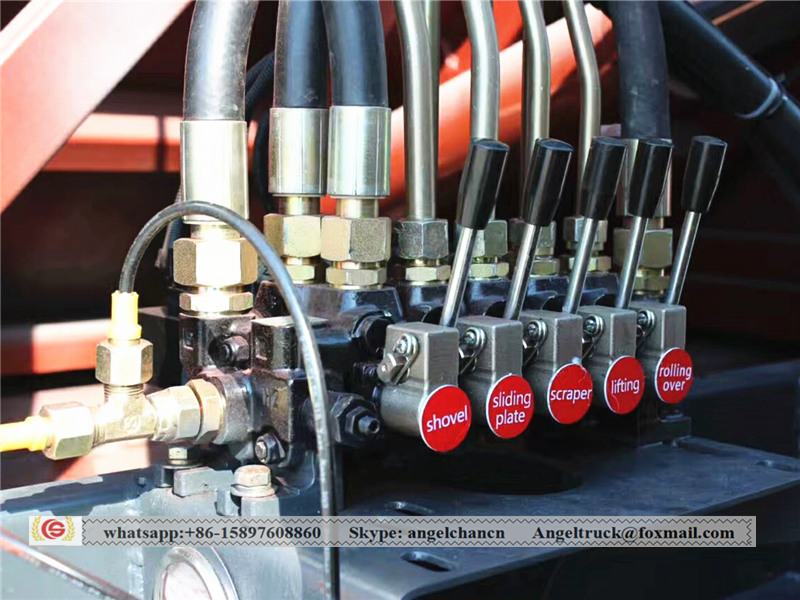

2.Multi-way reversing valve:China famous brand
|
|
3.Hydraulic cylinder:China famous brand
|
|

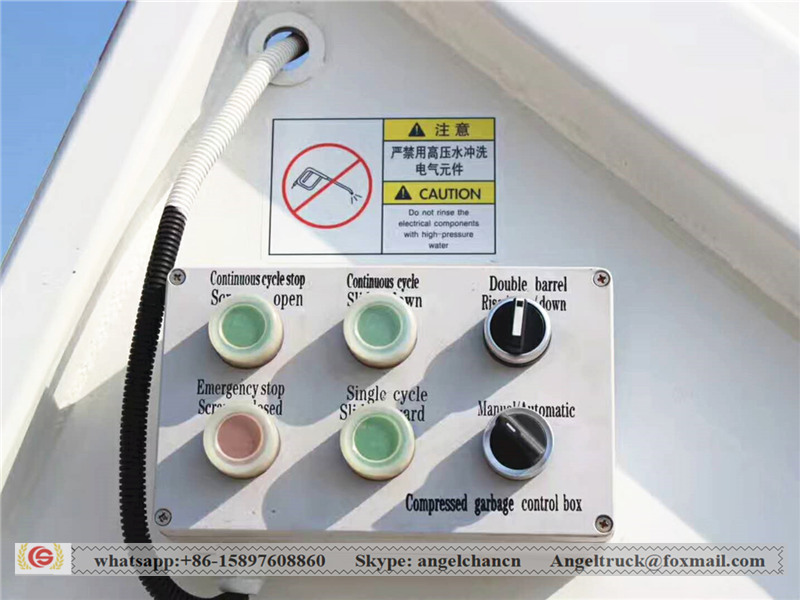

4.Control system :China famous brand or Siemens of Germany.
Double insurance system: the operating system has the dual function of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate.
|
|
5.Multiple garbage collection, sewerage collection.Flip mechanism: optional overturning mechanism with garbage bin (or bucket).
|
|
Other remark
|
Above specification is just for reference,please send us your request details.
|
|
