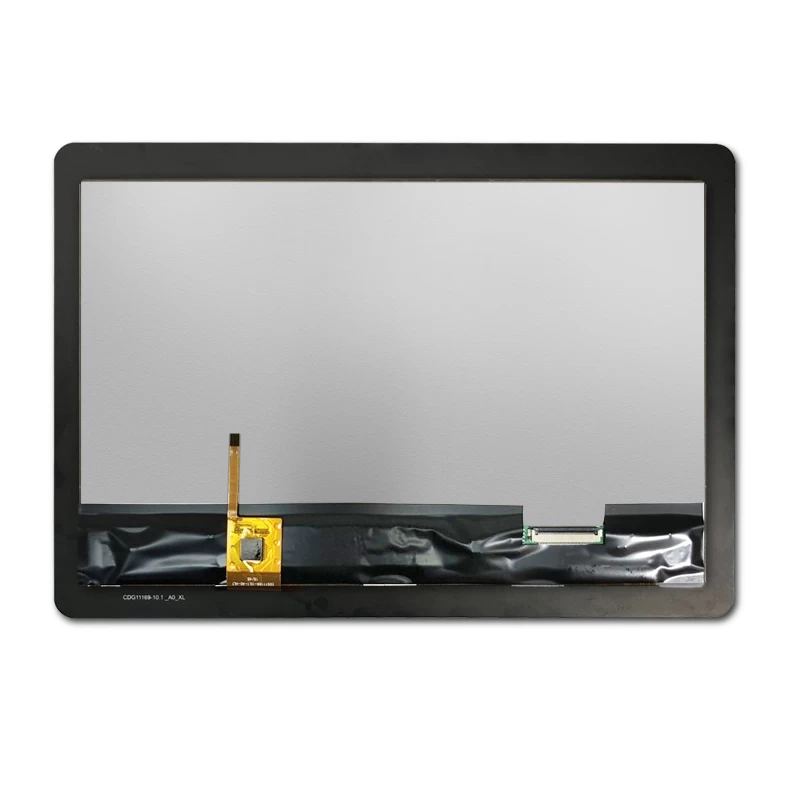

Competitive 1024x600 resolution 10.1 inch ips lcd display with capacitive touch screen

Competitive 1024x600 resolution 10.1 inch ips lcd display with capacitive touch screen




Facebook Twitter Pinterest LinkedIn 分享

Competitive 1024x600 resolution 10.1 inch ips lcd display with capacitive touch screen



Specification
LCD type 10.1 inch ips display
Display type 10.1 inch TFT, 16.7M color, normally black
Driver element color active matrix thin film transistor
Viewing angle
 All
Outline Dimension(mm) 229.46(H)X149.1(V)X2.5(T) mm
Active Area.(mm) 216.96 (H)X135.6 (V) mm
Resolution(dots) 1024xRGBx600
Operating Voltage
 3.3V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally black
Luminance(cd/m2) 750(typ.)
Contrast Ratio 500(typ.)
Application Notebook, advertisement display, etc.
Touch screen
 with CTP
Interface  RGB
Module lifetime(Hours) 30,000-50,000
