Application

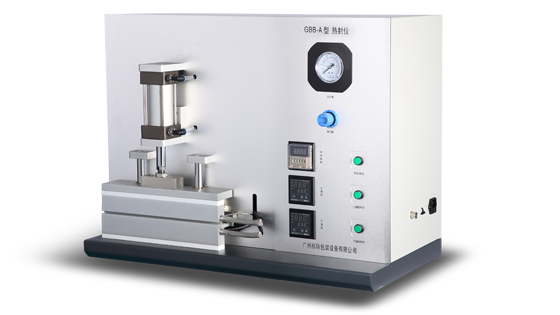

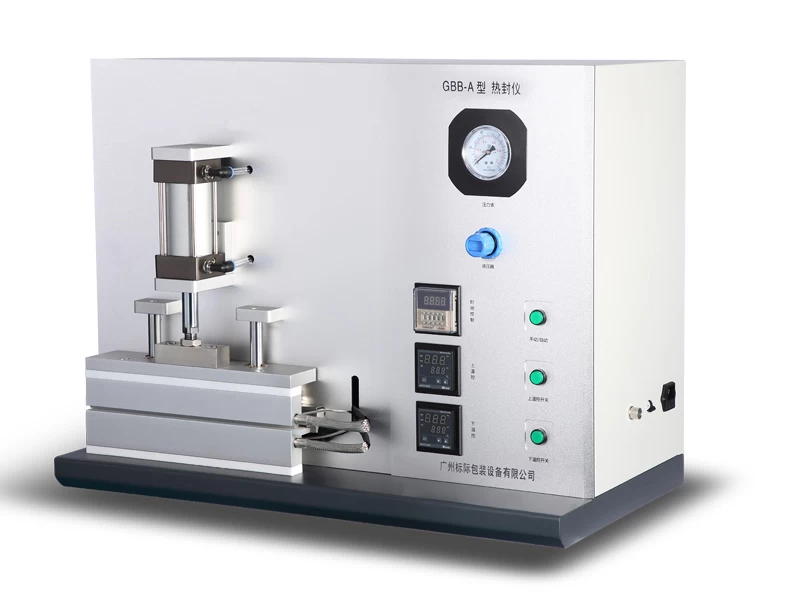

GBB-A Heat Seal Tester can accurately test the heat seal temperature range, heat seal strength, suitable heat seal speed and heat seal pressure of plastic film base material, flexible packaging composite film, coated paper, aluminum foil and others. It is applied to the quality control of various plastic film, food and drug manufacturer, the scientific research and teaching experiment of testing institutions and schools.
Technical Specifications
|
Item
|
Technical
parameters
|
|
Temperature
range
|
Room temperature~300℃
|
|
Temperature
precision
|
±0.2℃
|
|
Seal time range
|
0.01s~99.99h
|
|
Pressure range
|
0.05~0.8Mpa
|
|
Heat seal area
|
300mm × 5.5mm, smooth surface;
(lower bar has silicone pad as buffer) ;other sizes can be
customized
|
|
Heat seal method
|
two ways: automatic or manual,external air cylinder
|
|
Power supply
|
AC220V 50Hz
|
|
Instrument size
|
700mm × 400mm × 540mm
|
Standards
QB/T 2358-1998, ASTM F 2029, YBB00122003-2015
Features
1. Upper and lower heat seal bars have independent temperature control and setting.
2. Use compressed air, pneumatic drive.
3. Automatic and manual modes; use foot switch for manual mode.
4. GBB-A Heat Sealing Analyzer Can customize size, shape and smoothness of heat seal bar.
5. Can upgrade heat seal bar with anti-sticking function.
