Lab comprehensive planetary ball milling machine
SPECIFICATIONS
|
Transmission
|
Gear transmission
|
|
Working way
|
Two or four tanks simultaneously milling
|
|
Max sample loading capacity
|
2/3 of Tank volume
|
|
Discharge size
|
Mix 0.1um
|
|
Feed size
|
Soil material ≤10mm, other material ≤3mm
|
|
Speed ratio (revolution: Rotation)
|
1：2
|
|
Speed (rotation)
|
0.4L：0～600Rev / min , 2L：0～580Rev / min ,4L：0～530Rev / min ,
12L： 0～350Rev / min, 20L：0～270Rev / min
|
|
Revolution and rotation cycle
|
1 minute
|
|
Control method
|
Frequency variable speed, programmable control,
automatic timing reversing, time off
|
|
Maximum continuous working time (full load)
|
72hours
|
|
Model
|
Specification
|
Milling tank
|
|
Be equipped ordinary mill tank
|
Be equipped vacuum ball milling tanks
|
No.
|
|
TOB-DSP-LBPBM07A
|
0.4L
|
50ml 100ml
|
50ml
|
4
|
|
TOB-DSP-LBPBM07B
|
2L
|
50ml 100ml
250ml 500ml
|
50ml 100ml 250ml
|
4
|
|
TOB-DSP-LBPBM07C
|
4L
|
250ml 500ml 1L
|
50ml 100ml 250ml 500ml
|
4
|
|
TOB-DSP-LBPBM07D
|
12L
|
1L 2L 3L
|
1L 2L
|
4
|
|
TOB-DSP-LBPBM07E
|
20L
|
3L 4L 5L
|
3.5L
|
4
|

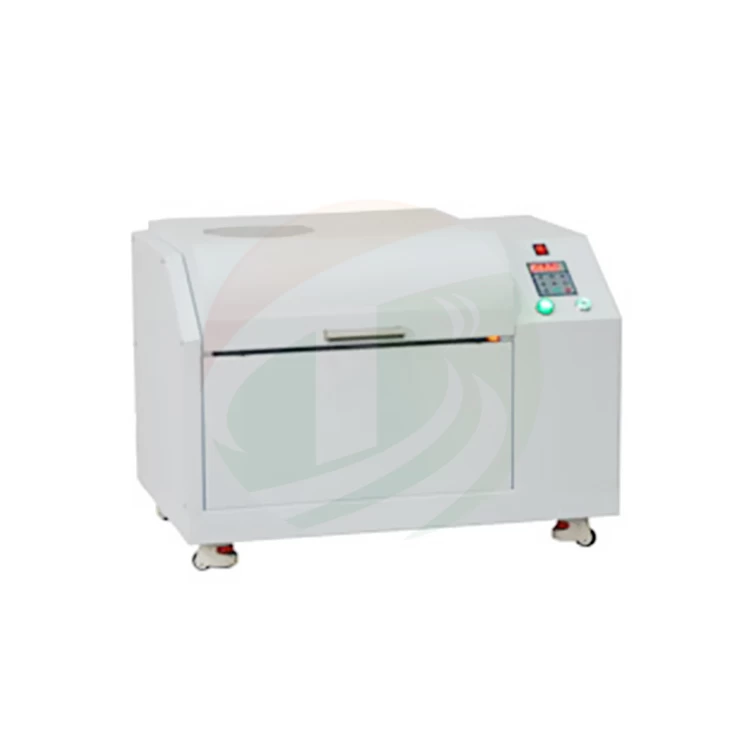

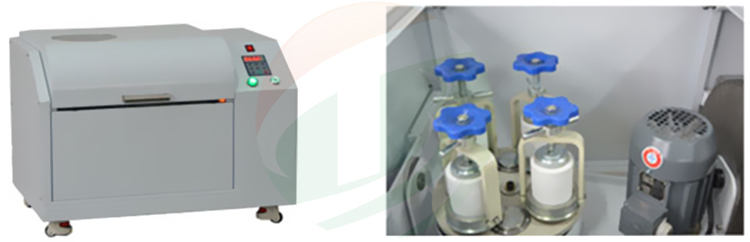

PRODUCT DISPLAY
