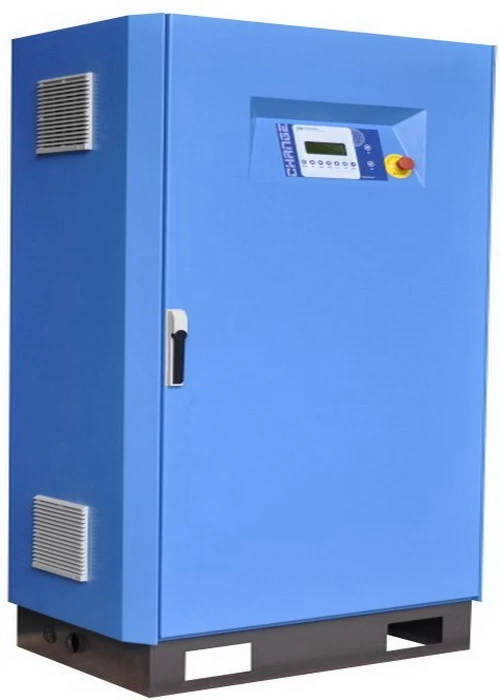

Compressor Systems Frequency Transforming Cabinets Control Panel Cabinets
1. Material: Cold Rolled Steel Sheet or Stainless Steel SUS304
2. Surface Treatment: Etch Primer for Box Body and Door Plate, Powder Coating for Outside, Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing
|
Item Name:
|
Industrial air compressor control cabinet ,Compressor Systems Frequency Transforming Cabinets Control Panel Cabinets
|
|
|
Material:
|
Cold Rolled Steel Sheet or Stainless Steel
|
|
|
Thickness:
|
Cabinet Body 2.0mm Door Plate:2.5mm Mounting Plate:2.5mm
|
|
|
|
|
Standard Configuration:
|
Door Plate, Cabinet Body, Sealing Strip, Grouping Sets, Mounting Plate, Door Lock
|
|
|
|
|
Surface Treatment:
|
Etch Primer for Cabinet Body and Door Plate, Powder Coating for Outside, Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
|
|
|
|
|
|
|
Class of Protection:
|
IP56(According to GB4205-1993)
|
|
|
|
|
MOQ:
|
100 PCS
|
|
|
Supply Ability:
|
10000 PCS/Month
|
|
|
Delivery Time:
|
10-15 days
|
|
|
Remark:
|
Special Demands Can Be Customized
|
|
Main advantage of Industrial air compressor control cabinet :
1. The door plate and box body are installed with special screws and retainers in accordance with common standards, which can ensure the protection class and the operation and maintenance in the narrow space in the box.
2. Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opening.
3. PU foaming sealing strip ensures a protection class of IP56 to box body.
4. The grounding line can be connected to the box body and door plate.
5. Racks with screw holes are provided on both sides of the box to ensure the max mounting height and ensure the installation of supporting rail or mounting plate.
6. The special plastic insulating sleeve can provide sealing and prevent door plate screw loosening, and guide screws when they are tightened.
