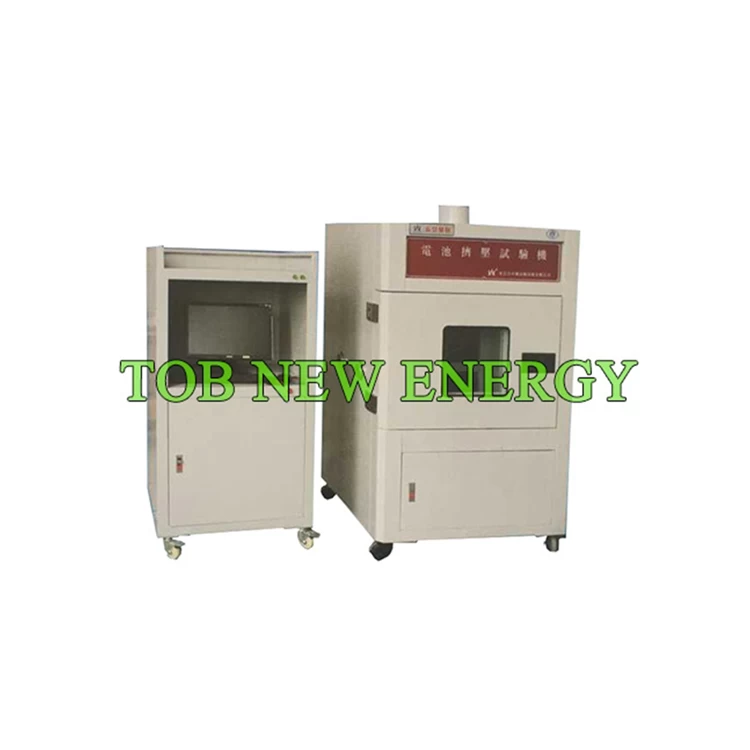

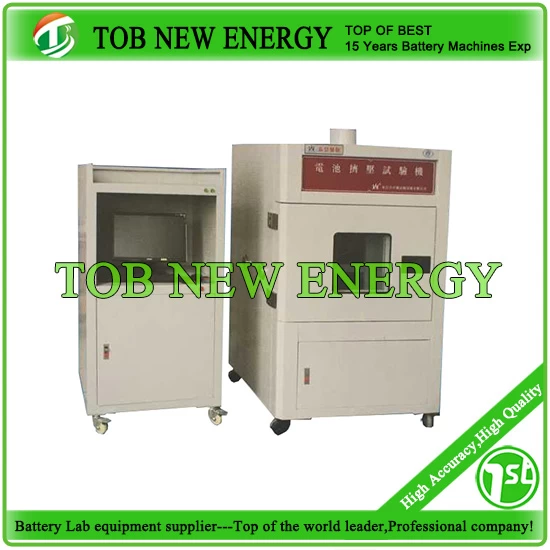

Computer Control Power Battery Crush Testing Machine
SPECIFICATIONS
1.Technical requirements
|
Model
|
Computer Control Power Battery Crush Testing Machine
TOB-BE-6045C
|
|
Source voltage
|
3∮5W 380V 50HZ 5000W
|
|
Dimension(W*D*H)
|
1200W*1100D*1800H
|
|
Weight
|
1500kg
|
|
Max pressure
|
10t,20t,30t,50t,80t,100t
|
|
Force value Resolution
|
1/100,000
|
|
Force error
|
±1%
|
|
Drive mode
|
Electro-hydraulic servo drive
|
|
Extrusion speed
|
1~200MM/S(Adjustable)
|
|
Unit Conversion
|
KG/N/LB
|
|
Test space
|
600W*600D*600H MM (customized)
|
|
Voltage acquisition frequency
|
200times/S
|
|
Temperature acquisition frequency
|
2 channels,2times/S
|
|
Test hole
|
On the left,50mm diameter hole attached a stainless
steel lid
|
|
Visual window
|
Double-proof glass300*300MM and affixed with
explosion-proof film, and with steel mesh
|
2.Standard configuration
|
Item
|
Quantity
|
|
Host and protective box
|
1set
|
|
Computer Cabinets
|
1set
|
|
Lenovo computer
|
1set
|
|
Surveillance camera system
|
1set
|
|
Voltage acquisition system
|
1set
|
|
Temperature acquisition system
|
1set
|
|
Wavy extrusion plate
|
1set
|
|
Round-shaped extrusion plate
|
Customizable
|
|
Factory inspection report
|
1set
|
|
Stainless steel tray
|
1set
|
